One-design race shop · Keelboat
J/105 Race Shop
Everything you need to prepare, compete, and win.
Fit verified for J/105
All J/105 equipment
46 parts
Fit verified for J/105
Harken
Harken Block - Carbo 57mm Single - Ratchet Fiddle - 150 Cam-Matic / Becket
Part # HAR2676
$214.95
$244.00Fit verified for J/105
Harken
Harken Swivel Cam Cleat - Base (Standard) w/ Cam-Matic 150 - Line: 1/8 to 1/2 in (3 to 12 mm)
Part # HAR144
$180.95
$205.65Fit verified for J/105
Lewmar
Lewmar Winch Handle - 8 in. / Aluminum / Single Hand Grip / Locking
Part # LEW29141011
$116.00
$170.95Fit verified for J/105
Lewmar
Lewmar Winch Handle - 10 in. / Plastic - Red / Single Hand Grip / Locking / Floating
Part # LEW29145311
$79.33
$113.95Fit verified for J/105
Lewmar
Lewmar Winch Handle - 10 in. / Chrome / Double Handle Grip / Locking
Part # LEW29141122
$196.00
$297.95Fit verified for J/105
Harken
Harken Winch Handle - 8 in. / Aluminum / Speed Grip / Locking
Part # HARB8ASG
$109.95
$156.85Fit verified for J/105
Lewmar
Lewmar Winch Handle - 10 in. / Aluminum / Single Hand Grip / Locking
Part # LEW29141111
$125.00
$184.95Fit verified for J/105
Harken
Harken Winch Handle - 8 in. / Bronze / Single Hand Grip / Locking
Part # HARB8BL
$126.95
$180.90Fit verified for J/105
Harken
Harken Winch Handle - 10 in. / Aluminum / Single Hand Grip / Locking
Part # HARB10AL
$109.95
$156.85Fit verified for J/105
Harken
Harken Winch Handle - 8 in. / Chrome / Single Hand Grip / Locking
Part # HARB8CL
$126.95
$181.20Fit verified for J/105
Harken
Harken Winch Handle - 10 in. / Chrome / Single Hand Grip / Locking
Part # HARB10CL
$148.95
$212.85Fit verified for J/105
Harken
Harken Winch Handle - 8 in. / Chrome / Speed Grip / Locking
Part # HARB8CSG
$145.95
$208.00Fit verified for J/105
Lewmar
Lewmar Winch Handle - 10 in. / Chrome / Single Hand Grip / Locking
Part # LEW29141121
$153.00
$231.95Fit verified for J/105
Lewmar
Lewmar Winch Handle - 8 in. / Plastic - Red / Single Hand Grip / Locking / Floating
Part # LEW29145301
$74.19
$104.95Fit verified for J/105
Harken
Harken Winch Handle - 10 in. / Chrome / Speed Grip / Locking
Part # HARB10CSG
$153.95
$220.15Fit verified for J/105
Harken
Harken Winch Handle - 8 in. / Aluminum / Single Hand Grip / Locking
Part # HARB8AL
$94.95
$135.00Fit verified for J/105
Harken
Harken Winch Handle - 8 in. / Aluminum / Ball Grip / Locking
Part # HARB8ASGLP
$106.95
$152.05Fit verified for J/105
Harken
Harken Winch Handle - 10 in. / Aluminum / Double Handle Grip / Locking
Part # HARB10ADL
$182.95
$261.50Fit verified for J/105
Harken
Harken Winch Handle - 10 in. / Bronze / Single Hand Grip / Locking
Part # HARB10BL
$193.95
$277.30Fit verified for J/105
Harken
Harken Winch Handle - 10 in. / Aluminum / Speed Grip / Locking
Part # HARB10ASG
$124.95
$177.55Fit verified for J/105
Tylaska
Tylaska Snap Shackle - Standard Bail - T12S
Part # TYL-TY1012-S
$213.13
$284.18Fit verified for J/105
Sailtec
Sailtec Integral Backstay Adjusters - J/105 (-10)
Part # STC10J105C
$2,011.00
$2,360.00Fit verified for J/105
C. Sherman Johnson
C. Sherman Johnson Rigging Tape - White - 1" x 15'
Part # CSJ-50-115
$24.30
$25.25Fit verified for J/105
C. Sherman Johnson
C. Sherman Johnson Rigging Tape - Black - 1" x 15'
Part # CSJ-50-115B
$24.30
$25.25Fit verified for J/105
Harken
Harken Eye Strap Pair - Spacing: 1 1/2 in (38 mm)
Part # HAR137PAIR
$8.95
$10.55Fit verified for J/105
Tylaska
Tylaska Snap Shackle - Standard Bail - T8S
Part # TYL-TY1008-S
$190.57
$254.10Fit verified for J/105
Ritchie
Ritchie X-11Y SportAbout Handheld Compass - Yellow
Part # rit-x-11y
$59.99
Fit verified for J/105
Loos Co
Loos & Co Tension Gauge for Rods -4 to -12 Rods
Part # LOORT10
$840.00
$840.85Fit verified for J/105
Harken

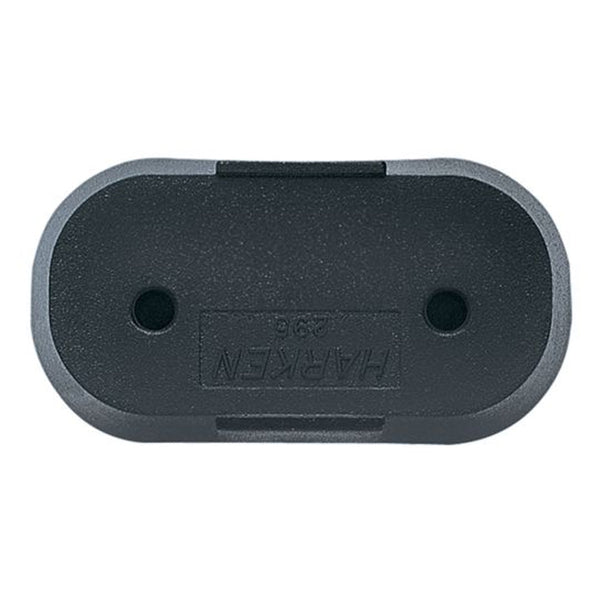

Harken Cam Cleats - Flat Riser (Standard) - For Carbo-Cam 365
Part # HAR295
$10.95
$12.35Fit verified for J/105
Harken

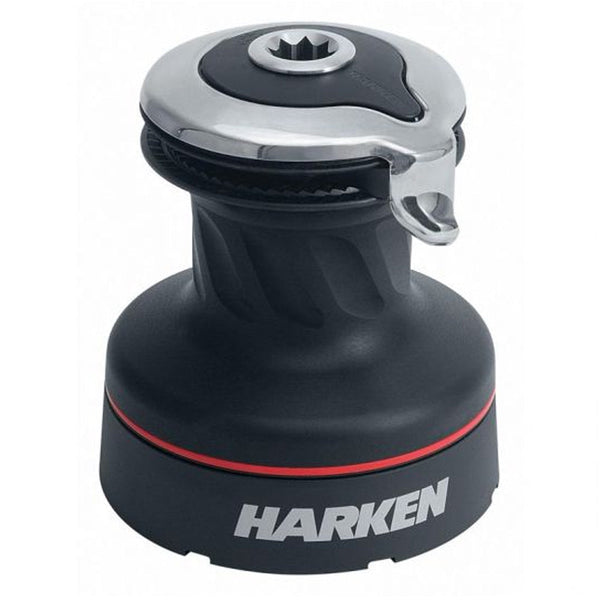

Harken Self Tailing Winch Radial Size 35 - Aluminum Black / Two Speed
Part # HAR352STA
$1,013.95
$1,448.00Fit verified for J/105
Harken

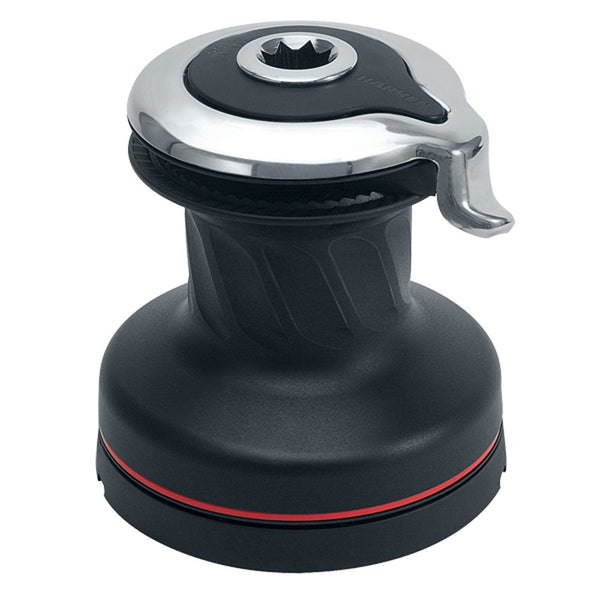

Harken Self Tailing Winch Radial Size 46 - Aluminum Black / Two Speed
Part # HAR462STA
$1,565.95
$2,237.00Fit verified for J/105
Harken
Harken Block - Classic Bullet 29mm Single - Swivel
Part # HAR166
$35.95
$40.80Fit verified for J/105
Harken
Harken Cam Cleat - Cam-Matic 150 - Line: 1/8 to 1/2 in (3 to 12 mm)
Part # HAR150
$44.95
$50.80
No J/105 parts match these filters.
Can’t find a part for your J/105? Request a J/105 part
Official Harken dealer
J/105 deck layout
- Loa
- 34.5 ft (10.51 m)
- LWL
- 29.5 ft (8.99 m)
- Beam
- 11.0 ft (3.35 m)
- Draft
- 6.5 ft (1.98 m)
- Displacement
- 7.750 lb (3, 515 kg)
- Lead Keel
- 3,400 lb (1,542 kg)
- J
- 13,5 ft (4.12 m)
- P
- 41/5 ft (12.65 m)
- E
- 14.6 ft (4.45 m)
Gross-Trim, Fine-Tune Mainsheet
-
5
57mm Fiddle Block — SwivelHarken 2621
$66.95 -
6
57mm Fiddle Ratchet Block — Swivel, Becket, Cam CleatHarken 2676
$214.95 -
10
57mm Fiddle Block — SwivelHarken 2621
$66.95
Mainsheet
-
1
57mm Fiddle Block — SwivelHarken 2621
$66.95 -
2
40mm Block — SwivelHarken 2636
$38.95 -
8
Standard Cam Base — SwivelHarken 144
$180.95 -
11
Standard Cam Base — SwivelHarken 144
$180.95 -
12
Standard Cam-Matic® Cleat - 150Harken 150
$44.95 -
16
57mm Fiddle Block — SwivelHarken 2621
$66.95
MKIV Unit 1 Furler
Systems and part numbers as published by Harken (checked 2026-11-04). Specifications are Harken’s; class rules decide what is legal for racing.
Go fast
J/105 tuning guide
The J/105 is tuned on its rod shrouds (caps/V1, intermediates/D2, lowers/D1) and backstay, with turns from a base setting. Read each guide with its own gauge and base: North and UK use the Loos RT-10M, Ullman a PS-10 red gauge, Quantum's 2020 chart just says 'units', and Doyle publishes separate charts for the Hall and Sparcraft masts. Mast-butt position and headstay length also differ between guides.
North Sails — J/105 Tuning Guide and J/105 Tuning Chart Current web guide; chart file dated 7.13.26
- Written for
- North mainsail (no product name given), 3Di AX jib with HELIX luff, North asymmetric spinnaker
- Tension gauge
- Loos RT-10M rod tension gauge per the guide text (relative gauge numbers, not pounds); the chart headers just say 'Loos 10'
- How it’s measured
- Headstay length pin centre to stem/sheer intersection, summed around the furler (A + B + C). Read rig tension with the backstay fully eased and the boom unloaded. Turns are for open-body turnbuckles.
- Source
- North Sails, Current web guide; chart file dated 7.13.26
Base setup
- Rake (headstay)
- Old class maximum, 13.035 m (42'9.125"); if it must be lengthened, add the toggle at the top so the tack stays low
- J
- 4.14 m, headstay/deck intersection to the front face of the mast
- Partners
- Move the mast athwartships until it stands straight side to side and secure it there (the guide mentions 'Spar tight' as one option) while keeping J at 4.14 m
- Mast butt
- Loosen the butt bolts, let the mast find zero prebend, mark the forward edge of the step, then move the mast back 3/8" (9.5 mm) from that mark
- Centring
- Caps tight, D1/D2 very loose; centre the hounds with a tape on the jib halyard to matching rail marks
- All-purpose base (10–14 kn)
- Caps 41, D2 17, D1 8 (just taking tension)
- San Francisco base (steady 15–25 kn)
- Caps 55, D2 25, D1 10
- Prebend at base
- Virtually none; check the mast is in column at full tension
- Jib car base
- 196" (4.98 m) from headstay/deck intersection to the front edge of the car block (12 kn)
- Spreader marks
- 3" (7.6 cm), 6" (15.2 cm) and 9" (22.9 cm) in from the spreader tip
J/105 Tuning matrix (tension columns headed 'Loos 10' on the chart; guide text specifies the RT-10M; turns for open-body turnbuckles)
| TWS (kn) | V1 cap | D2 | D1 | V1 turns | D2 turns | D1 turns | Outhaul (in off boom) | Traveller (car) | Backstay (in) | Jib lead (from headstay) | Inhaul |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0–6 (drifter) | 29 | 10 | 0 | −1 | −1 | −0.5 | 5" | Above seat | Loose | 194" | 0 to halfway |
| 6–10 (underpowered) | 35 | 14 | 4 | −1 | −1 | −0.5 | 4" | Seat edge | Loose | 196" | Handrail to 2" outside |
| 10–14 (hiking) | 41 | 17 | 8 | Base | Base | Base | 4" | Centre to seat | 1–3" | 196" | Handrail |
| 14–20 (into backstay) | 53 | 25 | 14 | 3 | 3 | 1 | 3" | Centre to 1 up | 3–5" | 196" | 2–4" outside handrail |
| 20+ (overpowered) | 61 | 31 | 18 | 2 | 2 | 0.5 | 3" | Centre to 1 up | MAX | 194" | 0 to halfway |
Backstay quick reference (key controls by wind range; use with the matrix)
| Condition | Backstay | Traveller | Cunningham | Vang | Sail goal |
|---|---|---|---|---|---|
| Very light, 0–6 kn | Fully eased (max power) | High, above centre | Eased, slight wrinkles | Off, top batten open | Full power, deep and twisted |
| Light, 7–12 kn | Eased to light, touch for pointing | Moderate to high, play actively | Eased, smooth luff | Snug over 10 kn | Balanced, speed + height |
| Moderate, 13–18 kn | Medium, flatten and depower | Centre, play for heel | Moderate, draft forward | Snug, flatten lower third | Flat and fast, reduce heel |
| Heavy, 18–24 kn | Hard on, mast bending fully | Centre, not below | Hard on, flatten sail | Firm, ease at the mark | Max depower, keep boat flat |
Trim by condition
- Traveller
- Boom on or slightly above centreline in light to moderate air; above centreline in very light air so the lower main is parallel to centreline. Play it hard to control heel, but don't drop it below centreline.
- Flat water vs waves
- Flat water: depower with the traveller and keep a tight, untwisted leech. Waves: keep the traveller higher with less sheet, let the top twist and play the fine-tune.
- Backstay
- Main power control; flattens main and jib together. Tape a batten marked every 1" to the cylinder. Ease the mainsheet whenever you ease backstay.
- Rig too loose / too tight
- Too loose: more backstay (jib stays fuller), traveller to centre with more sheet, use cunningham hard. Too tight: less backstay, slightly higher traveller and looser sheet. Tune for the lulls.
- Heel
- Sail as flat as possible; full crew fully hiked from about 11 kn. Watch rudder angle and depower before fighting the helm.
- Cunningham
- Slight wrinkles in light air, smooth in moderate, past smooth in heavy. Ease it first when rounding the windward mark or powering up.
- Vang
- Start pulling on over 15 kn to bend the lower mast. Ease it before easing the main at the windward mark.
- Outhaul
- Eased a few inches in light air, a little harder as the wind builds, but always keep slight depth in the foot shelf.
- Jib halyard
- Just remove luff wrinkles; small wrinkles in light air and flat water, tighter in chop. Older sails need more halyard.
- Jib sheet
- Trim as hard as possible without stalling the top leech telltale. Leech at the spreader tip in very light air, 3" inside in light, 6–9" inside in moderate, back to 3" in heavy air.
- Inhaul (weather sheet)
- All-purpose setting is the clew over the handrail. More inhaul narrows the slot and deepens the foot; move the car with inhaul changes (forward when using less).
- Crew (5 aboard)
- Light: two forward of the shrouds to leeward, the rest near the shrouds. Moderate: stack just behind the shrouds; downwind move to weather around 10 kn. Heavy: move aft.
- Downwind
- Bear away: cunningham, then vang, then backstay all the way off. 0–9 kn: tack tight to the sprit, vang so the top batten is open 5°. 9–18 kn: tack eased a couple of feet. 18+ kn: sail low, heel to windward up to 10°, top batten parallel to the boom.
- The matrix doesn't say what the turns are counted from. The tension columns suggest each step is counted from the neighbouring row nearer base (e.g. 41 → 53 at +3 turns, then 53 → 61 at a further +2).
- Chart footnote: if the main is luffing to keep the boat flat, ease the weather (inhaul) sheet.
- The quick-reference table uses different wind bands (0–6, 7–12, 13–18, 18–24) from the matrix.
- This guide places the butt by a 3/8" offset from the neutral point; the 2013 North edition gave fixed distances from the bulkhead (24.46 cm AP, 26.00 cm HA; 25 cm on the 2014 card).
Doyle Sails — J105 Tuning Guide (Paul Beaudin, J105sails.com) with Hall Spar Rig Settings 2022 and Sparcraft tuning matrix 2025 Web guide (site © 2010); Hall chart 2022; Sparcraft chart 2025
- Written for
- Doyle class main, roller-furling class jib (and #3 jib), class asymmetric
- Tension gauge
- Loos #10 Rod Tension Gauge (named in the guide text); neither chart image names a gauge, and the Sparcraft chart puts its readings in brackets
- How it’s measured
- Forestay from the forestay attachment to the stem/sheer line. Record turnbuckle gaps with calipers at base. For Ronstan turnbuckles (one screw) double the turns used for open-body turnbuckles.
- Source
- Doyle Sails, Web guide (site © 2010); Hall chart 2022; Sparcraft chart 2025
Base setup
- Forestay
- Old maximum, 13.035 m; add a toggle at the top if needed; keep the furling drum as low as possible
- Mast-up check
- Mark the mast 1000 mm below the top of the gooseneck black band; swing a steel tape on the jib halyard to the forestay; that mark should be 1270 mm from the stem/sheer intersection
- Mast butt (Hall)
- Neutral position with all shrouds slack and the forestay tensioned; aft face of the mast about 10" from the bulkhead aft (TPI-built boats). Aim for a straight mast with no prebend.
- Mast butt (Sparcraft)
- Set for 3/4" prebend at base, about 9½" from the bulkhead on typical TPI boats
- Base tune 5–10 kn (guide text)
- Uppers 35 (45 on a pre-SCRIMP boat), intermediates hand tight, lowers hand tight minus 1 full turn; then dial in D1/D2 under sail to a hint of leeward sag. Headstay sag about 10".
- Pre-SCRIMP boats
- Set the uppers by headstay sag (10") first; tension needed varies boat to boat
- Spreader marks
- Tape at 3, 6, 9 and 12" from the lower spreader tip; jib leech usually between the 3" and 6" marks
- Jib lead base
- 9 track holes showing in front of the car; back 1 hole for the medium tune; about 6 holes of range light to heavy
Hall Spar Rig Settings (2022); the chart names no gauge (the guide text uses a Loos #10)
| Wind (kn) | Uppers | Uppers full turns | Intermediates | Intermediates turns | Lowers | Lowers turns |
|---|---|---|---|---|---|---|
| 0–6 | 30 | −1 | Hand | −1 | 8" circles | −½ |
| 5–10 | 35 | Base | 5 | Base | 6" circles | Base |
| 10–15 | 45 | +2 | 12 | +2½ | No slack | +1 |
| Switch to #3 jib | — | — | — | — | — | — |
| 15–22 | 52 | +2 | 22 | +2½ | 20 | +1 |
| 22+ | 52 | 0 | 22 | 0 | 25 | +1 |
Sparcraft mast tuning matrix (2025); bracketed numbers are gauge readings, others are turns
| Shroud | 0–8 kn | 8–11 kn | 12–16 kn | 17+ kn |
|---|---|---|---|---|
| Upper | (25) −1 | (30) Base | (35) +1 | +1 |
| Intermediate | −1, 2" circle | Base, snug | +1 | +1 |
| Lowers | −½, 6" circles | Base, 4" circles | +½ | +1, snug |
Average spinnaker tack height
| Wind (kn) | Tack off the sprit |
|---|---|
| Under 8 | 0" |
| 8–10 | 6" |
| 10–15 | 1 ft |
| 15+ | 2 ft |
Trim by condition
- #3 jib (Hall)
- Use the medium tune (uppers 45) from 15–22 kn, then go to 52 in big breeze.
- Main halyard / cunningham
- Draft at 45–50%; luff wrinkles are fine up to about 12 kn. No cunningham below 10 kn, snug to remove wrinkles at 10–20 kn, firm above 20 kn.
- Mainsheet
- Top batten parallel to the boom with the top telltale flying; trim a bit harder at full speed so it stalls. Light air with lump: top batten about 5° open, telltale flying about half the time.
- Traveller
- Boom on centreline until you need to depower; pull it to weather in light air; never below the leeward seat.
- Backstay
- Just loaded with the slack out in light air. If wrinkles run from the clew to the mid-luff (inverted main), the butt may be too far aft.
- Outhaul / vang
- Light air: outhaul eased about 1" in flat water, 2" in lump; once fully hiking, tighten just enough to close the foot shelf; very hard in heavy air. Vang just slack upwind (a little in very light air to stop over-twist).
- Jib halyard and sheet
- Noticeable luff wrinkles in light air, tension progressively as it builds. Base trim: top leech telltale breaking about 10% (leech 2–4" in front of the lower spreader tip); 25% in flat water at full speed; ease to the tip out of tacks. Cross-sheet in breeze using marks 17–18 ft from the clew.
- Inhaul
- Rarely used; at most about 2" of lazy-sheet pull in perfect conditions.
- Downwind
- Backstay eased and locked; outhaul eased to about 3" from the boom in light to moderate air; vang to keep the top batten parallel in lulls. Spinnaker luff curl about 6–12"; adjust the tack so the curl sits just above mid-luff. In heavy air ease the boom only to about 45°.
- Paul Beaudin's site is a Doyle J/105 loft site and is the 'Doyle J/105 Tuning Guide' linked by the class association. A full PDF is offered only by email.
- The chart doesn't explain the lowers' 'circle' measurement; it appears to describe how much slack is in the lower.
- In the Hall chart the 0–6 and 5–10 bands overlap; values copied as shown.
Quantum Sails — J/105 Quick Tuning Guide, Quick Tune Chart and Quick Tune Performance Targets June 2020 (same numbers as the 2010 sheet on j105.org)
- Written for
- Quantum AP sails (base 10–14 kn) and Heavy Air sails (base 16–20 kn)
- Tension gauge
- Not named; columns say 'Units'. The 2010 class-site copy headed the same numbers 'Loos Guage Reading'.
- How it’s measured
- All turns are counted from the base setting (10–14 kn for AP sails).
- Source
- Quantum Sails, June 2020 (same numbers as the 2010 sheet on j105.org)
Base setup
- AP sails base (10–14 kn)
- Uppers 34, D2 17, D1 4
- Heavy Air sails base (16–20 kn)
- Uppers 50, D2 25, D1 10
Quick tuning guide (gauge units and full turns from base)
| TWS (kn) | Uppers | D2 | D1 | Uppers turns | D2 turns | D1 turns |
|---|---|---|---|---|---|---|
| 0–6 | 25 | 10 | 0 | −3 | −2 | −1 |
| 6–10 | 29 | 12 | 2 | −1.5 | −1.5 | −0.5 |
| 10–14 (AP base) | 34 | 17 | 4 | 0 | 0 | 0 |
| 14–18 | 40 | 22 | 6 | +2 | +4 | +0.5 |
| 16–20 (HA base) | 50 | 25 | 10 | +3 | +6 | +1.5 |
| 18–22 | 55 | 27 | 10 | +4 | +7 | +1.5 |
| 20–24 | 60 | 30 | 7 | +5 | +8 | +2 |
| 24+ | 65 | 35 | 5 | +6 | +10 | +2 |
Performance targets, upwind
| TWS (kn) | Boat speed (kn) | AWA (°) | TWA (°) |
|---|---|---|---|
| 6 | 4.69 | 24.7 | 44.7 |
| 8 | 5.57 | 24.2 | 42.2 |
| 10 | 5.96 | 24.3 | 40.5 |
| 12 | 6.22 | 25 | 39.8 |
| 14 | 6.41 | 25.6 | 39.5 |
| 16 | 6.52 | 26.2 | 39.2 |
| 20 | 6.63 | 27.6 | 39.2 |
Performance targets, downwind
| TWS (kn) | Boat speed (kn) | AWA (°) | TWA (°) |
|---|---|---|---|
| 6 | 5.21 | 78.29 | 138.8 |
| 8 | 6.02 | 93.59 | 143.9 |
| 10 | 6.77 | 102.86 | 145.4 |
| 12 | 6.94 | 123.64 | 153.2 |
| 14 | 7.11 | 148.45 | 164.2 |
| 16 | 7.57 | 156.67 | 167.7 |
| 20 | 8.55 | 159.9 | 168.6 |
Trim by condition
- Masts
- Quantum's J/105 product page (not the tuning sheet) calls the Hall mast softer and bendier than the stiffer Sparcraft rig; its AP and heavy mains are offered for either mast, and the mast type must be specified when ordering.
- The 14–18 and 16–20 kn bands overlap, and the D1 reading falls above 20 kn (10 → 7 → 5) while turns still increase; copied as published.
- The separate Quick Tune Chart (quantumsails.com/en/sails/one-design/documents/j105/j105-quick-tune-chart.aspx) repeats the same turn columns without the gauge readings; the targets are a separate sheet (…/j105-quick-tune-perf-targets.aspx). The targets sheet prints no units; knots and degrees are assumed.
- The 2020 sheet says nothing about rake; an older j105.org copy of the same chart printed rake only as a placeholder ('?????').
North Sails — J/105 Tuning Guide (Class Sail Development) and J/105 QuickTune Guide card Guide © 2013; QuickTune card updated 4/14
- Written for
- North AP inventory (optimised 9–12 kn) and HA heavy-air inventory (13–20 kn); 3DL class jib
- Tension gauge
- Loos RT-10 / RT-10M rod gauge
- How it’s measured
- Gauge on a mark 2 m (6'6¾") up each shroud, backstay released. Turns are from the base setting. Headstay = A (pin to top of furler drum) + B (drum height) + C (drum underside to stem/sheer).
- Source
- North Sails, Guide © 2013; QuickTune card updated 4/14
Base setup
- Mast butt
- Front of forward bulkhead to aft face of mast 24.46 cm (9 5/8") for AP sails; 26.00 cm (10 1/4") for HA sails; the QuickTune card says 25 cm (9.84")
- J
- Minimum 4.11 m (13'6") in the step text; a caption in the same guide says 4.14 m (13'7")
- Headstay
- Class maximum 13.035 m (42'9.125"); card: max length up to 20 kn, shorten by 2 cm (0.79") over 20 kn; class minimum 12.985 m (42.60')
- Dock set-up
- D1/D2 hand tight, caps +8 full turns, then D2 +6 turns (2–3 at a time, keeping the mast in column); re-check D1 hand tight
- Base 10–14 kn, AP sails
- Caps 35, D2 10, D1 0 (10 cm play)
- Base 10–14 kn, HA sails
- Caps 55, D2 25, D1 10 (hand tight); the QuickTune table/card list the HA D1 base simply as hand tight
- Prebend
- Virtually none up to the hounds at base
- Leeward sag
- About 2.5 cm (1") halfway to the hounds under 9 kn, zero at 9–12 kn; ease intermediates about twice as many turns as lowers
QuickTune (Loos RT-10; turns from base)
| Wind (kn) | AP caps V1 | AP D2 | AP D1 | HA caps V1 | HA D2 | HA D1 |
|---|---|---|---|---|---|---|
| Light 0–6 | −1.5 turns | −3 turns | −2 turns | 40 (−3 turns) | 10 (−5 turns) | 10 cm play (−1.5 turns) |
| Light/medium 6–10 | −1 turn | −1.5 turns | −1 turn | — | — | — |
| Medium 10–14 (base) | 35 | 10 | 0 (10 cm play) | 55 | 25 | Hand tight |
| Medium/heavy 14–18 | +1.5 turns | +2 turns | +1 turn | — | — | — |
| Heavy 18+ | +3 turns | +4 turns | +2 turns | 65 (+5 turns) | 35 (+5 turns) | Slightly loose (+1 turn) |
Trim by condition
- Traveller
- Boom on or slightly above centreline in light to moderate air; in very light air the bottom batten should point at the backstay. Aim for about 4° of rudder, never more than 5°.
- Sea state
- Flat water: lower the traveller and keep the leech tight. Waves: car near centreline with a more twisted main, played on the fine-tune.
- Vang / outhaul
- Vang on from 12 kn to bend the lower mast (ease before bearing away). Outhaul slightly eased in light air, as hard as possible over 15 kn.
- Jib halyard
- Just remove wrinkles; 2.54–7.62 cm (1–3") past that in heavy air.
- Jib sheet and lead
- Spreader marks at 3, 6 and 9" from the tip: tip in very light air, 3" inside in light, 6–9" in moderate, 3" in heavy. Median lead slightly aft of mid-track, about 9" aft of the chainplate; up to 3 holes forward in light air, up to 2 holes aft in heavy air.
- Downwind
- 0–9 kn: tack 0.3–0.6 m (1–2') off the sprit, vang with the top batten open 5°. 9–12 kn: tack 0.6–0.9 m (2–3') off. 12+ kn: crew to windward, heel to windward up to 10°, top batten parallel to the boom.
- Older North edition, superseded by the current web guide. The 2014 card (j105.org/wp-content/uploads/2015/12/J105_QuickTuneCard_14_F2.pdf) repeats the QuickTune table printed at the end of the 2013 guide and gives the headstay maximum as 42.77'.
- A sail-analysis caption in the guide shows a 22 kn heavy-air setting of 68 caps, 32 intermediates, 10 lowers.
- Rows marked — have no heavy-air value in the source.
Quantum Sails — Quantum Sails: J-105 Tuning (Kerry Klingler) 2011 (Word file 'Quantum J-105 Tuning 2011')
- Written for
- Quantum mainsail (the butt position is given for the Quantum main; no other sail is named)
- Tension gauge
- Loos gauge implied (the text says 'loose gauge'); model not stated
- How it’s measured
- Centre the mast with a 30 lb weight on the jib halyard swung to rail marks 15' back from the tack fitting.
- Source
- Quantum Sails, 2011 (Word file 'Quantum J-105 Tuning 2011')
Base setup
- Headstay
- 0 to 0.75" short of the old class maximum (13035 mm / 42.767'; minimum 12985 mm); add a toggle at the top if it must be lengthened
- Mast step
- 9.5" forward of the bulkhead, measured along the head floor from the forward face of the fibreglass floor pan; gives about ½" prebend
- Prebend check
- About ½" with normal shroud tension; reverse bend means the butt is too far forward
- Uppers
- Hand tight with the mast centred, then +7 turns, about 44 on the gauge
- Intermediates
- Hand tight and straight, then +2½ full turns, about 12
- Lowers
- Hand tight and straight, then +1½ full turns, about 16
Rig adjustment by wind (Loos readings)
| Wind (kn) | 0–5 | 6–10 | 11–15 | 16–20 | 20+ |
|---|---|---|---|---|---|
| Uppers | 35 | 38 | 44 | 50 | 54 |
| Intermediates | 0* | 7 | 12 | 20 | 26 |
| Lowers | 0* | 7 | 16 | 20 | 26 |
Trim by condition
- Leeward shrouds
- Over 10 kn the leeward shrouds shouldn't go loose; tighten both sides equally until they just come straight.
- Light air
- Under 5 kn loose lowers and intermediates are fine; the mid-mast sags to leeward and powers up the main.
- * Footnote: 1 turn off the 6–10 kn setting.
- The text calls the chart 'changes from the settings above', but the cells are gauge readings.
Ullman Sails — J/105 Tuning Guide, Rig Tension Chart and Sailing Guide (Version 5) Version 5 (files dated August 2010)
- Written for
- Ullman J/105 sails; AP and RUN spinnakers
- Tension gauge
- Loos PS-10 red gauge
- How it’s measured
- Turns are for standard (old-style) turnbuckles; double them for the new-style turnbuckles (gauge readings are the same). 0–7 kn is the base.
- Source
- Ullman Sails, Version 5 (files dated August 2010)
Base setup
- J
- Class maximum 13'6"; most boats need the spar almost against the aft partners. Shims behind the mast add prebend in light air; shim aft to straighten for heavy air.
- Mast butt
- 10¼–10½" from the bulkhead behind the mast; zero prebend at normal tension with the forestay at maximum. Some newer boats have the step 2" further aft.
- Headstay
- 42.65' ±1" depending on conditions (the class no longer has a maximum forestay length)
- Dock tune (0–8 kn, guide text)
- Uppers 30, intermediates 12, lowers slack (about 0)
- Leeward sag
- About 1¼" at 0–8 kn, ½" at 8–15 kn, none once overpowered; a quarter turn on the lowers changes the smoothness
Rig tension chart (Loos PS-10 red gauge)
| Shroud | 0–7 kn (base) | 8–16 kn | 17+ kn | Turns, standard turnbuckles | Turns, new turnbuckles |
|---|---|---|---|---|---|
| Uppers | 37 | 41 | 51 | +1.5 / +2 | +3 / +4 |
| Intermediates | 12 | 17 | 22 | +.75 / +.75 | +1.5 / +1.5 |
| Lowers | 0 | 0 | 5 | +.5 / +.5 | +1 / +1 |
Trim by condition
- Main, 0–7 kn
- Traveller above the weather seat, top telltale stalling about 50%, outhaul about 2.5" from the boom.
- Main, 7–12 kn
- Traveller level with the weather seat, second telltale from the top stalling about 25%, crew hiking flat, outhaul tight; play the traveller in puffs.
- Backstay
- Keep 4–6" of forestay sag until overpowered; adjust mainsheet with every backstay change.
- Jib
- Start with the car pin in the aft position, three screws plus one hole showing at the front of the track. Trim until the leech telltale just flutters; centre seam parallel to centreline. In flat water at speed, pull the lazy sheet slightly (2–3" pigtail) to narrow the sheeting angle.
- Downwind
- No twings; halyard at full hoist; backstay completely loose; furl the jib tight and tension the sheets in chop. Above 10 kn ease the tack 1.5–3' until the luff projects to windward.
- Spinnaker by wind
- 1–7 kn: crew forward and to leeward, tack tight, luff curl 1–1.5 head panels 50–75% of the time. 8–16 kn: crew forward of the cockpit to weather, tack 1.5–3' off, TWA 140–150°, curl 1–2 panels. 16+ kn: crew to weather and slightly aft, TWA 150–165°, curl about 1 panel.
- The guide text gives uppers 30 for the 0–8 kn dock tune, but the chart lists 37 at 0–7 kn base.
- The chart doesn't say whether the 17+ turns are counted from base or from the 8–16 setting. The readings (37 → 41 → 51) look like a further step, but the guide's synopsis says the total change is two turns or less per shroud, which fits counting from base.
- canadianboating.ca hosts copies of all three Ullman files with identical text.
UK Sailmakers — UK Sailmakers J/105 Tuning Guide and Sail and Rig Setting Matrix Undated in print; PDF file created January 2004
- Written for
- No sail model named; the guide refers to the class jib and an asymmetric spinnaker
- Tension gauge
- Loos RT-10M rod tension gauge
- How it’s measured
- Headstay from the centreline of the headstay pin to the stem/sheer intersection. Backstay read on a batten with 10 marks every 0.1 ft, firm at the 0.9 mark. Jib track calibrated with the 9th hole from the front 15.28' aft of the Harken clevis pin.
- Source
- UK Sailmakers, Undated in print; PDF file created January 2004
Base setup
- Headstay
- 13.035 m (42.76 ft), class maximum (rule 7.4); bottom turnbuckle thread three turns out so it can be shortened in heavy air; move the backstay toggle to the top of the headstay
- Mast butt
- Aft edge of the mast to the bulkhead 0.244 m (0.8 ft)
- Shroud set-up
- Uppers hand tight and centred, then +8 full turns; intermediates and lowers hand tight with the mast straight
- Marks
- Spreader tape at 0.2 and 0.4 ft in from the tip; jib sheets marked 13.75 ft from the J-lock; tack pendant marked 1.0, 1.25, 1.5 and 2.0 ft off the sprit
Sail and rig setting matrix (shrouds on Loos RT-10M)
| True wind (kn) | Headstay | Uppers* | Intermediates | Lowers | Backstay | Jib lead | Traveller | Jib halyard | Cunningham |
|---|---|---|---|---|---|---|---|---|---|
| 0–6 | Max | 20 | 5 | 10 cm play | 9.5 | 9 showing | Full up | Large wrinkles | 0 |
| 6–9 | Max | 20 | 5 | 10 cm play | 9 | 10 showing | 9" above centre | Medium wrinkles | 0 |
| 9–12 | Max | 30 | 5 | 10 cm play | 8 | 10 showing | 4" above centre | Small wrinkles | Remove wrinkles |
| 12–15 | Max | 40 | 15 | 5 cm play | 8 | 11 showing | Centre | No wrinkles | Remove wrinkles |
| 15–19 | −3 | 45 | 25 | 15 | 7 | 11 showing | 4" below centre | No wrinkles +1" | No wrinkles +1" |
| 20+ | −3 | 50 | 30 | 30 | 6 | 12 showing | 9" below centre | No wrinkles +2" | No wrinkles +2" |
Trim by condition
- Flat water
- Add 2 turns to the uppers.
- Downwind, 0–7 kn
- Ease the backstay, cleat the furling line and tension the jib sheet to pull the rig forward. Two or more crew below, one forward of the shrouds and the rest between the shrouds and companionway; heel about 5° to leeward. Spinnaker halyard eased about 0.5'; tack 1.25–1.5 ft off.
- Downwind, 7–16 kn
- Crew on the weather rail between shrouds and companionway; halyard eased 1.0–1.5 ft; tack 1.5–1.75 ft off.
- Downwind, 17+ kn
- Backstay to the light-air upwind setting; main trimmer ready to pump on waves; crew to weather from 3 ft aft of the shrouds to 2 ft aft of the companionway; halyard eased 1.5 ft; tack 2–3 ft off.
- The matrix doesn't state units for the headstay '−3' (presumably turns shortened) or the backstay column (presumably the batten marks).
- '9 showing' etc. appear to be track holes showing ahead of the car. The guide warns that track positions varied by more than an inch between four boats measured.
- UK's current J/105 class page invites you to download its tuning guide, but the text carries no actual link; this 2004 copy is from the J/105 Fleet 17 archive.
Settings are summarised from each sailmaker’s published guide (checked 2026-11-02). Use the guide written for your sails, check it against the full guide, and stay inside the class rules.Rig tension gauges for the J/105
Technical
J/105 resource centre
How we verify parts
- Fit verified
- Each part listed here was matched to the J/105 by part number against the builder’s specification or a manufacturer’s class guide, then checked again by an independent reviewer.
- Class rules
- Fitting a part is not the same as it being legal for racing. Read the current J/105 class rules before changing equipment, and ask your class measurer if a part is not original equipment.
- Class rulesClass Rules 2026
- Class associationj105.org
- Builder specificationsJ/105 on jboats.com
- Racing guideThe right gear for the right application
- Racing guideWhat to do when rounding the mark
- Racing guideHow to conquer the layline
- Rigging helpRequest a J/105 part
