J/111 deck layout

LOA
36.50 ft (11.10 m)
LWL
32.70 ft (9.97 m)
Beam
10.80 ft (3.29 m)
Standard Draft
7.20 ft (2.19 m)
Standard Ballast
3,515 lb (1,594 kg)
Displacement
9,300 lb (4,216 kg)
Engine
21 hp
100% SA
663 sq ft (61.6 sq m)
I
48.37 ft (14.74 m)
ISP
51.40 ft (15.67 m)
J
13.85 ft (4.22 m)
P
45.17 ft (13.77 m)
E
14.50 ft (4.42 m)
SA/Dspl
24
Dspl/L
119

Performa winches

Performa winches — Harken layout for the J/111
Drawing: Harken
  1. 2 57mm Block — SwivelHarken 2600 $55.95
  2. 3 57mm Aluminum Low-Load Block — SwivelHarken 3226 $211.95
  3. 4 57mm Aluminum Low-Load Block — SwivelHarken 3226 $211.95
  4. 6 Standard Cam Base — SwivelHarken 144 $180.95
  5. 8 Standard Cam-Matic® Cleat - 150Harken 150 $44.95
  6. 13 Standard Cam-Matic® Cleat - 150Harken 150 $44.95
  7. 15 57mm Aluminum Mast Collar ESP BlockHarken 6050 $78.20
  8. 16 57mm Aluminum Low-Load Block — SwivelHarken 3226 $211.95
  9. 18 40mm Fiddle Block — SwivelHarken 2655 $52.95

Systems and part numbers as published by Harken (checked 2026-11-04). Specifications are Harken’s; class rules decide what is legal for racing.

Go fast

J/111 tuning guide

The J/111 is set up from a base headstay length (swing arc) with turns added or taken off the V1 uppers, D1 lowers and D2 intermediates, while jib inhaul and backstay do much of the gear-changing. North and Quantum both mix gauges: V1s and D1s are read on a Loos RT-10 and the D2s on a Loos PT-2, so D2 numbers can't be compared with the others. Cyclops Marine publishes forestay-load targets in tonnes rather than gauge readings.

Quantum Sails — J/111 Tuning Guide (Full Tune), Quick Tune Chart, Targets and Sail Chart 2022 (files titled 'J111_FullTune_2022WC', 'J111_QuickTune_2022WC', 'J111_Targets_2022WC', 'J111_SailChart_2022WC'; 'WC' isn't expanded in the files)

Written for
AP main and J1.5 light jib (0–12 kn), J2.5 medium jib for full/choppy water (13–23 kn) and J3.5 minimum-size heavy jib (16–24 kn), all in Fusion M VX Black; A1.5 AP reacher (0–10 kn), A2 AP runner (10–25 kn), A2.5 heavy-air runner (18–25 kn)
Tension gauge

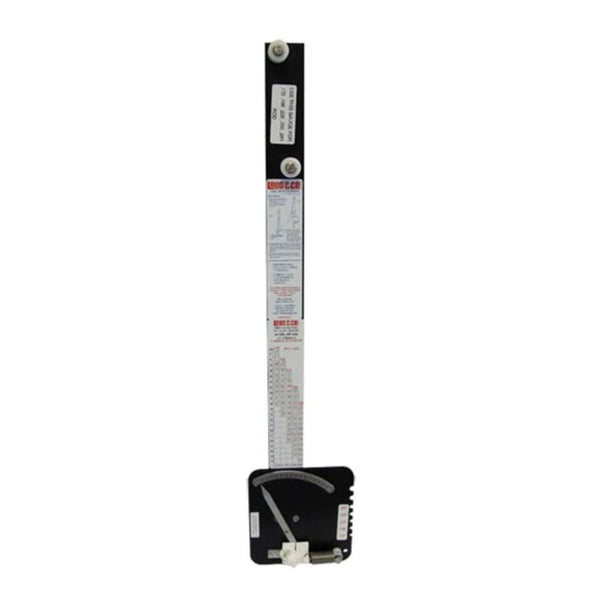

Loos gauges: RT-10 for V1 uppers and D1 lowers; PT-2 for D2 intermediates
How it’s measured
Full turns from base (10–14 kn). Headstay arc 2.235 m: halyard from the top of the gooseneck white band swung to the headstay, then measured down to the bottom pin of the headstay turnbuckle. Record turnbuckle gaps with calipers at base (D2 measured from the top of the tip cup to the bottom of the turnbuckle).
Source
Quantum Sails, 2022 (files titled 'J111_FullTune_2022WC', 'J111_QuickTune_2022WC', 'J111_Targets_2022WC', 'J111_SailChart_2022WC'; 'WC' isn't expanded in the files)

Base setup

V1 uppers
63 (RT-10)
D1 lowers
24 (RT-10)
D2 intermediates
26 (PT-2)
Headstay
Arc 2.235 m; headstay caliper number 76
Mast step
0.419 m from forward face of mast to bulkhead (including trim), centre of the adjustment range
Spreader marks
Lower spreader 1.030 m and top spreader 0.682 m off the mast centreline (jib trim marks)
Jib inhaul scale
0% = on the jib track, 25% = cabin-top edge, 80% = stainless handrail, 100% = max in, just outside the halyard organiser
Partners
'Spar Tight' (as printed) to centre the mast at the partners and take out play

Full tune: rig (turns from base; tensions V1/D1 on RT-10, D2 on PT-2)

TWS (kn)Headstay turnsV1 turnsV1 RT-10D1 turnsD1 RT-10D2 turnsD2 PT-2
0–5−15047−20−50
6–9−10052−10−30
10–14 (base)BaseBase63Base24Base26
15–18+5170+230028
19–22+10275+440233
23++15380+650440
6–9 chop0−2—−2—0—
10–14 chop0−1—−1—0—

Full tune: sail controls

TWS (kn)Jib inhaulHeel (°)Outhaul (sail off boom)TravellerVangBackstayJib (J-number)SpinnakerTrim (column not explained)
0–525%104"Up0None1.5A1.5−1
6–9100%103"Up010%1.5A1.5−1
10–14100%182"Foot25%30%1.5–2.5A20
15–1890%221"Mid75%80%2.5A20
19–2225%230MidMax100%2.5A21
23+0240MidMax100%HVYA21

Quick tune chart (full turns from base)

TWS (kn)HeadstayV1 uppersD1 lowersD2 intermediates
0–6−150−4−4
6–10−100−3−3
10–14BaseBaseBaseBase
14–180+2+20
18–22+5+4+4+2
23++10+6+6+3

Targets (upwind)

TWS (kn)Boat speed (kn)Heel (°)TWA (°)AWA (°)Tack (°)
65.25442490
8612412488
106.721402582
126.923392578
147.125382674
167.226372676
207.327382770
257.427382770

Targets (downwind)

TWS (kn)Boat speed (kn)Heel (°)TWA (°)AWA (°)Gybe (°)
66121378571
871014510572
107.3514711575
127.5015512580
147.7016414882
167.9517216484
2012815511073
2513815611070

Trim by condition

Inhaul and car
The less inhaul, the further forward the jib car; add inhaul and the car goes aft. Chop and waves want more twist and more inhaul; in flat water sheet harder with less inhaul.
Marks
Colour-mark the vang for repeatable upwind and downwind settings; tape a numbered batten to the hydraulic backstay ram.
Sail inventory
Six class sails aboard (main, three jibs, two spinnakers); eight sail tags in the first year of ownership, then three every other year.
  • Sources: full tune guide at the url above; quick mast tune at quantumsails.com/en/sails/one-design/documents/j111/j111_quick_tune_chart.aspx; targets at .../j111_targets.aspx; sail chart at .../j111_sail_chart.aspx (all PDFs).
  • In the full tune the V1 turns stay at 0 in the two light rows while the V1 reading drops from 63 to 52 and 47, and D1/D2 read 0 there; copied as published.
  • The quick mast tune doesn't match the full tune (e.g. 0–6 kn D1/D2 −4/−4 vs −2/−5 at 0–5 kn; 23+ kn uppers +6 vs +3). Use one or the other consistently.
  • The meaning of the traveller entries (Up / Foot / Mid) and of the unlabelled 'Trim' −1/0/1 column isn't explained; vang and backstay percentages are presumably of full range. Heel has no unit printed.
  • Downwind targets at 20 and 25 kn jump to 12 and 13 kn boat speed with TWA back up to 155–156°; copied as published.

North Sails — North Sails J/111 Quick Tuning Chart Web page, no date shown (page metadata: published 10 May 2017, modified 19 Mar 2026)

Written for
LM jib, MH jib, HWJ heavy jib; 1.5A and 2A asymmetrics
Tension gauge
Loos RT-10 for uppers and D1 lowers; Loos PT-2 for D2 intermediates
How it’s measured
Base at 9–11 kn. Headstay by 2.22 m arc and 15.3 m pin-to-pin. Non-base rows give unlabelled numbers for uppers and lowers only (not stated whether turns).
Source
North Sails, Web page, no date shown (page metadata: published 10 May 2017, modified 19 Mar 2026)

Base setup

Mast butt
44.3 cm
Headstay
2.22 m arc; 15.3 m pin-to-pin
Verticals / uppers
62 units, RT-10
D1s / lowers
28 units, RT-10
D2s / intermediates
27 units, PT-2

Quick tuning chart (base readings; other rows are changes from base)

Wind (kn)JibAsymUppersD1s / lowersD2s / intermediatesSheet angle / in-haulTraveller carVang
0–6LM1.5A−6−2—HandrailAll upOff
6–8LM1.5A−4−1—1.5–2" inside handrail18" upOff
9–11 (base)LM1.5A62 (RT-10)28 (RT-10)27 (PT-2)Handrail4" upOff
12–15MH2A51.5—HandrailCentrelineOff
16–20MH2A93—½ way handrail trackCentrelineOn hard
20+HWJ2A145—½ way handrail track, 'twisty' sheet loadCentrelineOn hard
24+—————Track, no in-hauler——
  • The chart gives no D2 changes away from base and doesn't say whether the uppers/lowers numbers in the other rows are turns.
  • The light-air rows are negative (−6/−2, −4/−1) and the breezier rows unsigned (5/1.5, 9/3, 14/5); copied as published.
  • The page says 'See also: J/111 European Tuning Guide' but no link is present; an older North J/111 PDF (na.northsails.com) is no longer online.
  • The mast-butt figure (44.3 cm) has no stated reference point.

Cyclops Marine — J/111 Dynamic Tuning Guide Undated sheet; uploaded August 2021 (URL path /2021/08/, PDF created 12 Aug 2021)

Written for
J1 and J2 jibs
Tension gauge
Forestay load in tonnes (t); the sheet doesn't name the measuring device
How it’s measured
Forestay load while sailing, with separate targets for accelerating ('Accel') and VMG mode.
Source
Cyclops Marine, Undated sheet; uploaded August 2021 (URL path /2021/08/, PDF created 12 Aug 2021)

Upwind speed and forestay load targets

TWS (kn)Upwind speed (kn)SailForestay load, accel (t)Forestay load, VMG (t)
65.2J10.71.0
86.0J11.11.3
106.7J11.41.6
106.7J20.81.0
126.9J21.21.4
147.1J21.41.6
16*7.2J21.61.8
18*7.3J21.71.8
  • Cyclops Marine makes rig load sensors, not sails; numbers are loads, not gauge readings. The asterisks on 16 and 18 kn aren't explained on the sheet. Speed has no unit printed (presumably kn).

Settings are summarised from each sailmaker’s published guide (checked 2026-11-02). Use the guide written for your sails, check it against the full guide, and stay inside the class rules.Rig tension gauges for the J/111
