J/22 Race Shop

Everything you need to prepare, compete, and win.

Shopping for

J/22

  • 89 verified parts
  • 16 brands
  • Fit checked Oct 2026

Fit verified for J/22

All J/22 equipment

89 parts

Can’t find a part for your J/22? Request a J/22 part

Ready to install

J/22 running rigging

Sheets, halyards and control lines whose length and diameter we have matched to the J/22 specification.

Official Harken dealer

J/22 deck layout

LOA
22.5 ft (7 m)
LWL
19 ft (5.7 m)
Beam
8 ft (2.4 m)
Draft
3. 8 ft (1.1 m)
Displacement
1790 lb (811.7 kg)
Lead Keel
700 lb (317 kg)
Sail Area
223 sq. ft (20.7 sq. m)

2:1 Jib Cross Sheeting

2:1 Jib Cross Sheeting — Harken layout for the J/22
Drawing: Harken

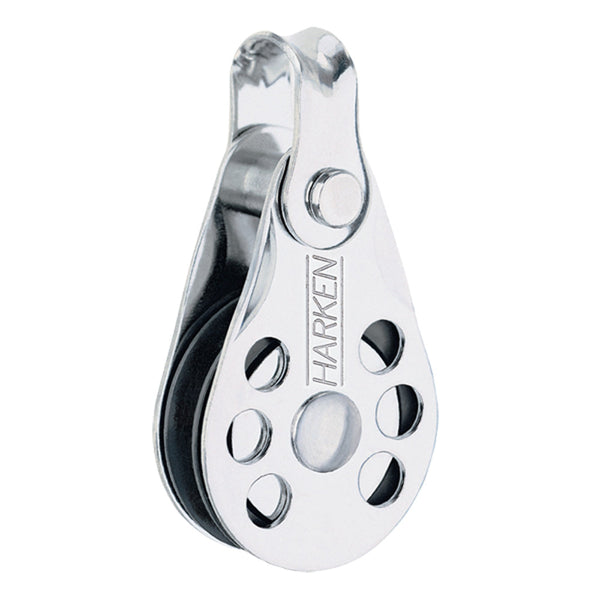

  1. 1 25mm Wire Block — ShackleHarken 300 $47.95
  2. 2 25mm Wire Block — ShackleHarken 300 $47.95

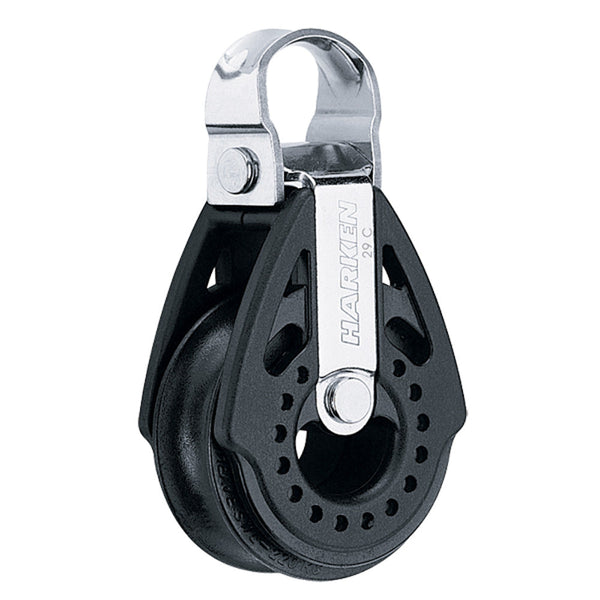

  3. 3 29mm 90-Degree BlockHarken 352 $23.95
  4. 4 57mm Fiddle Block — SwivelHarken 2621 $66.95
  5. 5 57mm Ratchamatic® Block — SwivelHarken 2625 $121.95
  6. 6 57mm Block — Swivel BecketHarken 2601 $62.95
  7. 7 Standard Cam Base — SwivelHarken 144 $180.95

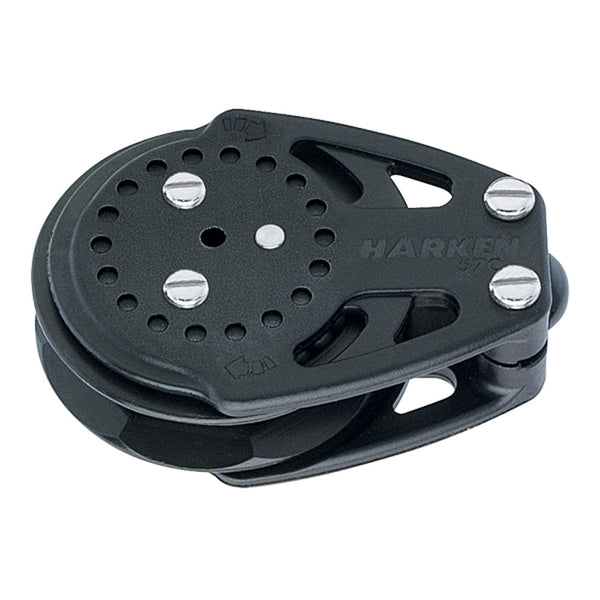

  8. 8 57mm Cheek Ratchamatic® BlockHarken 2633 $124.95
  9. 9 25mm Wire Block — ShackleHarken 300 $47.95
  10. 10 40mm Fiddle Block — SwivelHarken 2655 $52.95
  11. 11 40mm T2™ Soft-Attach BlockHarken 2149 $44.95
  12. 12 29mm T2 Soft-Attach BlockHarken 2146 $29.95

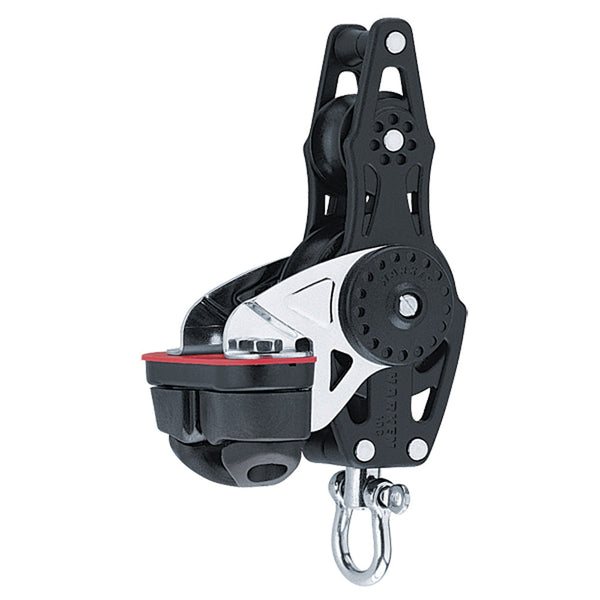

  13. 13 40mm Fiddle Block — Swivel, Becket, Cam CleatHarken 2658 $145.95

Twin Traveler Line Cleats

Twin Traveler Line Cleats — Harken layout for the J/22
Drawing: Harken

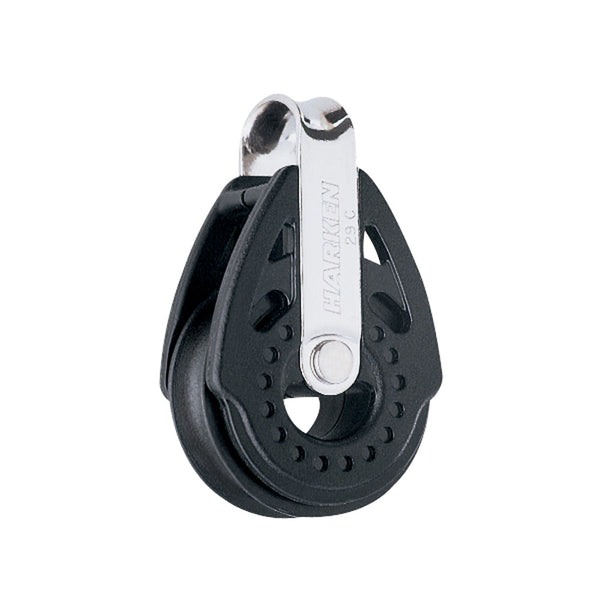

  1. 1 29mm BlockHarken 348 $17.95
  2. 3 Standard Cam-Matic® Cleat - 150Harken 150 $44.95
  3. 4 40mm Block — SwivelHarken 2636 $38.95
  4. 5 29mm T2 Soft-Attach BlockHarken 2146 $29.95

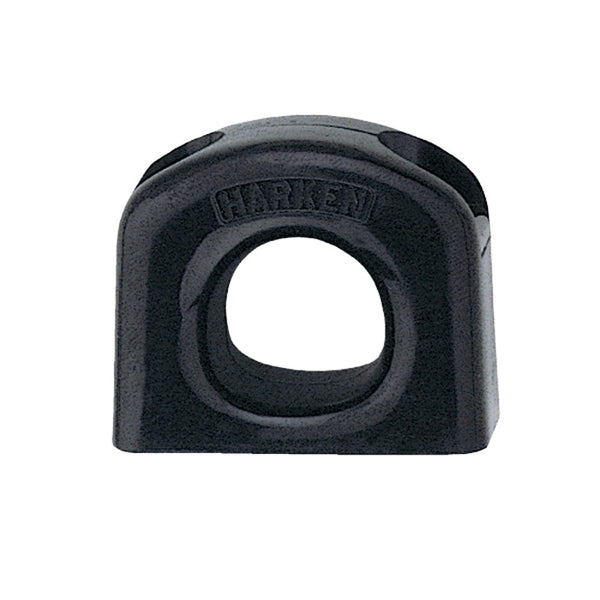

  5. 6 38mm Bullseye FairleadHarken 237 $6.95
  6. 7 57mm Ratchamatic® Block — SwivelHarken 2625 $121.95
  7. 8 40mm T2™ Soft-Attach BlockHarken 2149 $44.95
  8. 9 40mm T2™ Soft-Attach BlockHarken 2149 $44.95
  9. 10 38mm Bullseye FairleadHarken 237 $6.95
  10. 11 57mm Ratchamatic® Block — SwivelHarken 2625 $121.95
  11. 12 40mm Block — SwivelHarken 2636 $38.95
  12. 13 29mm BlockHarken 348 $17.95
  13. 14 22mm Small Boat CB Car — Pivoting Shackle, Control TangsHarken 2754 $236.95
  14. 16 Standard Cam-Matic® Cleat - 150Harken 150 $44.95
  15. 17 Standard Cam-Matic® Cleat - 150Harken 150 $44.95
  16. 18 38mm Bullseye FairleadHarken 237 $6.95
  17. 19 57mm Cheek Ratchamatic® BlockHarken 2633 $124.95
  18. 20 57mm Cheek Ratchamatic® BlockHarken 2633 $124.95

Systems and part numbers as published by Harken (checked 2026-11-04). Specifications are Harken’s; class rules decide what is legal for racing.

Go fast

J/22 tuning guide

J/22 tuning revolves around forestay length (rake) and upper/lower shroud tension changed by wind band, with the leeward upper just going slack upwind. Each sailmaker measures the forestay from a different reference point and uses a different Loos gauge (North uses the PT-1, Quantum gives Model A and PT-1 columns, Ullman just says "Loos gauge"), so never mix numbers between guides.

North Sails — J/22 Tuning Guide and J/22 Tuning Matrix Updated after the 2024 World Championship (Annapolis); page undated

Written for
M-7 mainsail (angled mast step) and Big Foot jib
Tension gauge
Loos PT-1 Pro (black) gauge; all tension numbers are on the PT-1 scale
How it’s measured
Rake: pull the jib halyard down the mast until the shackle is level with the top of the gooseneck band and cleat it, swing it out to the forestay, mark the forestay at the bottom of the shackle, then measure from that mark to the junction of the template and bow plate. Centre the mast to marks 8′ back from the stem fitting on each side at the sheer.
Source
North Sails, Updated after the 2024 World Championship (Annapolis); page undated

Base setup

Forestay mark to bow plate (hulls before 1460)
4′ 11″ (angled step, M-7 main)
Forestay mark to bow plate (hull 1460 and later)
5′ 1/8″ as printed (angled step, M-7 main)
Mast centring marks
8′ back from the stem fitting at the sheer, each side
Uppers (base)
250 lbs = 26 on the PT-1; this base is calibrated for about 10 kn (the matrix labels it 8–10 kn)
Lowers (base)
5 on the PT-1, then check sag sailing upwind
Prebend (M-7, angled step)
About 1″ between the back of the mast and the main halyard at the spreaders
Forestay tension
About 6–7 on the PT-1 with no backstay
Backstay
On older boats or with more rake it may need shortening a few inches at the top. Minimum = blocks at rest; maximum = blocks about 1′ above the deck.

J/22 Tuning Matrix (tension on Loos PT-1, uppers:lowers)

WindTurns on uppers (step)Turns on lowers (step)Tension PT-1 (U:L)Upper turns from baseLower turns from base
0–5 kn "drifter"−1−0.520:0−2−1
Light (2 in boat) 5–8 kn−1−0.523:0−1−.05 (as printed)
BASE 8–10 kn250 lbs5 on PT-126:5BaseBase
Fully hiked 10–12 kn2132:1821
Pulling on backstay 12–14 kn2136:2542
Overpowered 14–16 kn1138:3053
Backstay on hard 16–20 kn1139:3464
Main luffing 20+ kn1140:3775

Upwind quick reference

Control0–8 kn8–15 kn15–20 kn20+ kn
MainsheetTop batten about 10° open; no vangTop batten parallel; top telltale stalling about 75%Play constantly for helm balanceEase aggressively; vang on hard
TravellerWithin 2″ of the weather seatDrop gradually to reduce helmCentrelineCentreline
Outhaul (shelf foot seam off boom)1¾″1″TightTight, shelf fully closed
BackstayOff/slackAdd gradually as it buildsOn hard (blocks about 1′ off deck)On hard
CunninghamOff / very littleJust enough at 11–12 knSmooth luff, tighten progressivelyMaximum, luff fully smooth
VangSlackSlack to 12 kn, then snugHard (boom visibly bending)Very hard
Jib leadStandardStandardUp to 2 holes aftUp to 2 holes aft

Forestay length test (6–8 kn, max crew weight, 3–4° heel, let go of the helm)

Boat responseAction
Straight 3–5 s, then slowly turns downCorrect: pin and tape
Turns up into the wind (too much rake)Shorten 2 full turns and retest
Goes straight and never turns downShorten 1 more full turn and retest
Turns down in under 3 s (too little rake)Lengthen 1–2 turns and retest

Trim by condition

Uppers on the water
Set so the leeward upper is just going slack. If it wiggles more than ½″ upwind, tighten both uppers equally; if there's no wiggle or the breeze drops, ease both equally until a slight wiggle appears.
Lowers on the water
Aim for about ½–1½″ of leeward sag at the spreaders in most conditions; most sag in light air; almost straight at 20+ kn with heavy vang; never bowed to windward.
Outhaul
Seam measured from the side of the boom to the middle of the shelf foot seam: 0″ (closed) in heavy air, about 1″ in medium, 1¾″ in chop or when you need power, about 3″ downwind.
Traveller
Light to moderate air: car within 2″ of the windward seat with the top batten about 15° past parallel.
Cunningham / vang
Cunningham to keep maximum draft about 50% aft. Vang slack until about 12 kn.
Jib sheet and halyard
Middle batten parallel to centreline normally; ease to 10–15° outboard in light or lumpy water. Light–medium air: slight crow's-feet but no scallops. Survival: bear away, release the backstay and pull the halyard as hard as possible. Cross-sheet to the weather winch; Harken 009 ratchets suggested.
Jib lead
Standard: the sheave attachment on the car (not the pin) in line with the mast and the shroud chainplates (M-7/angled step at 4′ 11″). Check: about 18″ back from the tack (near the Big Foot sticker) the foot should sit just inside the toe rail; if you can't see the rail's shadow through the foot move forward a hole, if it's outside the rail move back a hole. Above 15 kn move aft to depower. Drill extra holes.
Spinnaker
8–10″ of luff curl; outboard pole end level with the leeward clew and pole square to the apparent wind; centre seam parallel to the mast (usually clews level). Windward twing fully down; leeward twing off in light air and during the set, about 2′ off the deck in very heavy air.
Main downwind
Ease until the luff just lifts, then trim slightly; vang so the top batten is just open from parallel in light–moderate air; ease cunningham, backstay and outhaul. Jib down except in survival conditions.
Crew placement
Light air upwind: as far forward as possible, forward crew just behind the shrouds, skipper forward of the traveller bar. Big breeze: shoulder to shoulder with the forward crew about 1′ behind the shroud base. Downwind in big waves or breeze: everyone behind the companionway, crew to the edges to limit rolling.
  • The text says the jib lead can go up to three holes aft of standard; the quick-reference table says two.
  • The 5′ 1/8″ figure for hulls from 1460 is printed that way and may be a typo; check with North.
  • In the matrix, 'Turns on uppers/lowers' are the turns between neighbouring rows, and the last two columns are cumulative from base. The 5–8 kn lower turns-from-base cell reads −.05, which probably should be −0.5. Turns are for open-body turnbuckles; double them for single-stud turnbuckles.
  • The matrix image is linked from the guide page (cdn.shopify.com file s-tuning-guide-j22-matrix).

Quantum Sails — J/22 Tuning Guide © 2020

Written for
Quantum J/22 main and jib (no model names)
Tension gauge
"Small Loos tension gauge"; separate tables for Loos Model A and Loos PT-1, including a headstay target number
How it’s measured
With the mast down, lay the headstay down the front of the mast and mark it at the top of the black band at the boom; with the mast up, measure from that mark to the intersection of the headstay tang at the deck. Centre the mast by measuring from the tack horn to the crane on each side and marking the toe rail.
Source
Quantum Sails, © 2020

Base setup

Headstay (mark to tang at deck)
Between 4′ 11½″ and 5′ 1″; tables are based on 4′ 11½″. Optimum varies with keel shape and position.
Rake check
In 5 kn you should be able to sail almost flat with no lee helm; if not, lengthen the headstay in ½″ steps until there's some weather helm.
Mast step
Use the angled mast plate (the flat plate loads the front pin and can crack the deck)
Spreaders
Check that the crane-to-spreader-tip distances are equal on both shrouds
Crew weight
605 maximum; lighter crews may want more rig tension to depower earlier

Rig settings, Loos Model A

TWS (kn)UppersTurnsLowersTurnsHeadstay number
0 to 423+ 120+ ½4
5 to 930+ 124+ ½6
10 to 1335+ 127+ ½9
14 to 1639+ 132+ ½15
17 to 1841+ 135+ ½19
18 to 2544+ 142+ 123

Rig settings, Loos PT-1

TWS (kn)UppersTurnsLowersTurnsHeadstay number
0 to 415+ 111+ ½3
5 to 920+ 115+ ½5
10 to 1325+ 119+ ½8
14 to 1628+ 121+ ½10
17 to 1831+ 125+ ½13
18 to 2533+ 130+ 117

Trim by condition

Headstay target
After setting the shrouds always check the headstay number. A shorter headstay is tighter, so ease the shrouds; a longer one needs more shroud tension to reach the target. Set the rig for the lightest wind expected and ease it right off at the end of the day.
Local conditions
More rake for lighter-wind venues; a little less shroud tension in flat water (more sag, better pointing); more tension in chop so the rig doesn't pump. Longer headstay lowers the jib clew, which can leave the lead too far forward and the leech too open.
Main, 0–5 kn
Traveller about 2″ from the windward seat, boom on centreline, outhaul eased so the shelf is about half open, top batten about 5° open, vang loose, backstay at the top of the Y; top telltale flying about 60% of the time.
Main, 6–8 kn
Sheet until the top batten is parallel, drop the traveller about another 2″ to keep the boom centred, add about ½″ outhaul; top telltale flying about 30%.
Main, 8–12 kn
Traveller about 2″ high or on centreline, top batten parallel, top telltale flying about 15%; some backstay; start vang sheeting with vang tension matching the sheet.
Main, 12+ kn
Play backstay and full vang sheeting; with about ½″ backstay on, the boom ends up about 8″ below centreline. Pull backstay on before puffs and release before lulls.
Jib, 0–8 kn
Sheet eased almost to the toe rail, small scallops between the hanks; add halyard as it builds until only small wrinkles remain.
Jib, 8–12 kn
Trim until the helm just starts to go neutral; near the top of the range move the lead back about ½–¾″.
Jib, 12–18 kn
Lead back another ½″, luff smooth, backstay about ¼–½″; ease the jib 1–3″ in puffs if the main backwinds.
Jib lead
Head up slowly: if the top luffs first move the car forward; aim for even breaking (or the top slightly first), middle batten parallel to centreline, top leech telltale always flowing.
Crew
0–5 kn: helm to windward forward of the traveller, trimmer low or in the companionway, bow in the middle. 6–10 kn: bow by the shrouds against the cabin side, trimmer moving to centre. 10–15 kn: all on the high side, legs out when powered.
Boat changes
Shorten the backstay if needed for the longer headstay, upgrade to low-stretch lines, move the backstay control forward, increase vang purchase from 4:1 to the 8:1 class maximum.
  • The tables show "+ 1" and "+ ½" turns in every row without saying what they're counted from; presumably the turns to add from the row above.
  • The 17 to 18 and 18 to 25 bands overlap at 18 kn as published.

North Sails — J/22 Speed Guide Undated web article (Mike Marshall)

Written for
North J/22 sails
Tension gauge
Not stated; refers to the North J/22 Tuning Guide for shroud numbers
How it’s measured
Forestay measured as in the North J/22 Tuning Guide, after centring the mast and making it straight athwartships.
Source
North Sails, Undated web article (Mike Marshall)

Base setup

Forestay (starting point)
4′ 11.75″, adjust after sailing
Keel position correction
Keels vary up to 30 mm fore and aft: if yours is further aft lengthen the headstay up to ¾″; if further forward shorten up to ⅜″

Trim by condition

Jib
Top leech telltale should need only about ¼″ of trim to stall in most conditions. Lead: the foot should meet the toe rail 18″ back from the bow. In big breeze ease up to 6″ when the jib is too tight. Out of tacks get the sheet within 2″ of final trim before the trimmer hikes.
Crew
Jib trimmer moves to leeward first in light air (around 7 kn). Crew weight limit 605 lb; sail right on it.
Main
Light air: top telltale always flying. Medium air: trim until the top telltale stalls about half the time; it stalls less as backstay goes on.
Spinnaker
Keep the spinnaker foot about two feet from the forestay.
  • It points to the North J/22 Tuning Guide for the measuring method and calls 4′ 11.75″ a starting point, noting the Tuning Guide has two sets of numbers by boat age and mast step. Its figure differs from the 4′ 11″ / 5′ 1/8″ in the current (2024) Tuning Guide; the speed guide is undated and may predate that update.
  • Its medium-air main target (top telltale stalling about 50%) differs from the 75% in the current Tuning Guide.

Ullman Sails — J/22 Tuning Guide Undated (file metadata 2008)

Written for
Ullman J/22 sails (not named)
Tension gauge
"Loos gauge" (model not stated)
How it’s measured
With the headstay on the spar, lay it down the front of the mast to the gooseneck and tape it level with the top of the black band; adjust the turnbuckle until tape to stem/bow-plate intersection is the target. Centre at the hounds with a steel tape on the jib halyard to marks 8′ back from the stem head fitting.
Source
Ullman Sails, Undated (file metadata 2008)

Base setup

Headstay
4′ 10 7/8″ (tape mark to stem/bow-plate intersection)
Base setting (8–12 kn)
Uppers 35, lowers 17 on the Loos gauge
Prebend
1½″ (main halyard tight to the gooseneck, measured at the spreaders), backstay at zero tension

Rig tension (Loos gauge, model not stated)

Wind (kn)0–34–89–1112–1516–1920+
Uppers333435374043
Lowers121517192023

Trim by condition

Uppers on the water
Tune so the leeward upper is just starting to dangle upwind; use the chart only as a reference because gauges differ.
Lowers on the water
Sight up the mainsail track upwind and set the lowers so the mast is straight to the hounds.
Turns
Make your own chart of turns from the lowest to the highest setting; it depends on your turnbuckles.
  • The text calls 35/17 the 8–12 kn base, while the chart puts 35/17 in the 9–11 kn column.
  • Ullman no longer hosts this guide; the link is to the copy on canadianboating.ca. The PDF's internal metadata carries an unrelated title from another Ullman guide.

Settings are summarised from each sailmaker’s published guide (checked 2026-11-02). Use the guide written for your sails, check it against the full guide, and stay inside the class rules.

Technical

J/22 resource centre

How we verify parts

Fit verified
Each part listed here was matched to the J/22 by part number against the builder’s specification or a manufacturer’s class guide, then checked again by an independent reviewer.
Class rules
Fitting a part is not the same as it being legal for racing. Read the current J/22 class rules before changing equipment, and ask your class measurer if a part is not original equipment.
