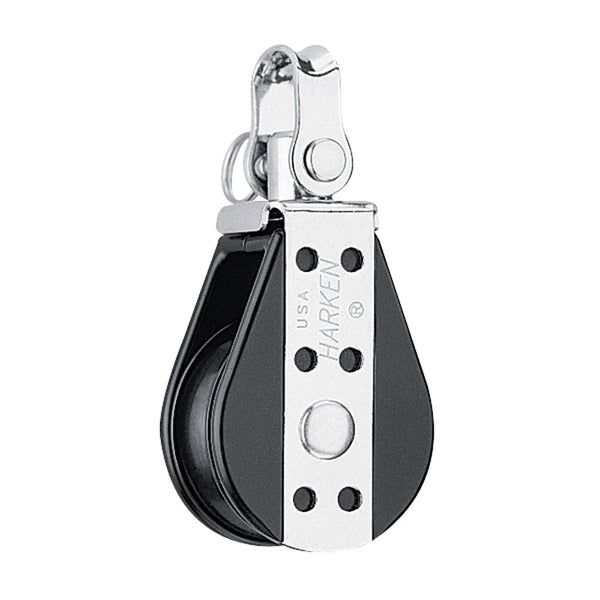

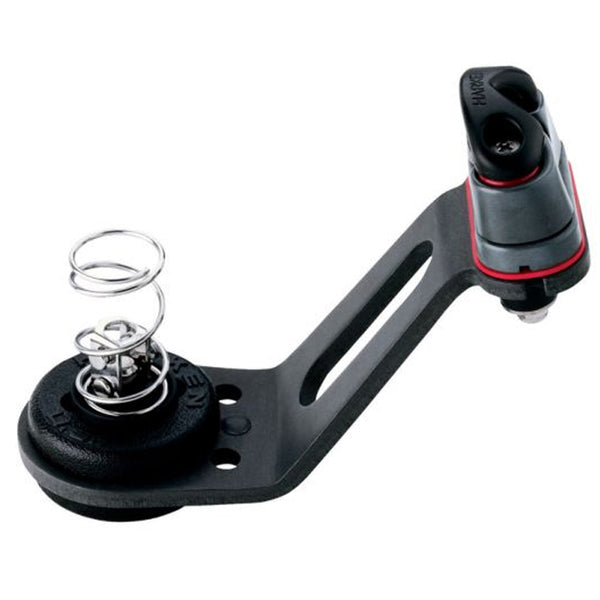

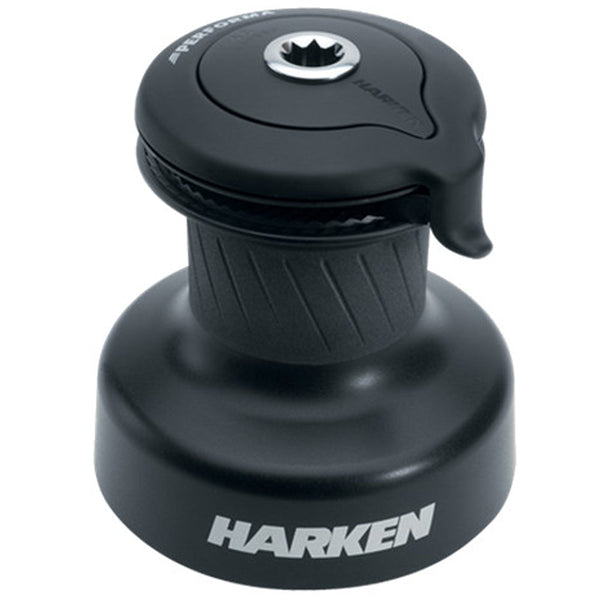

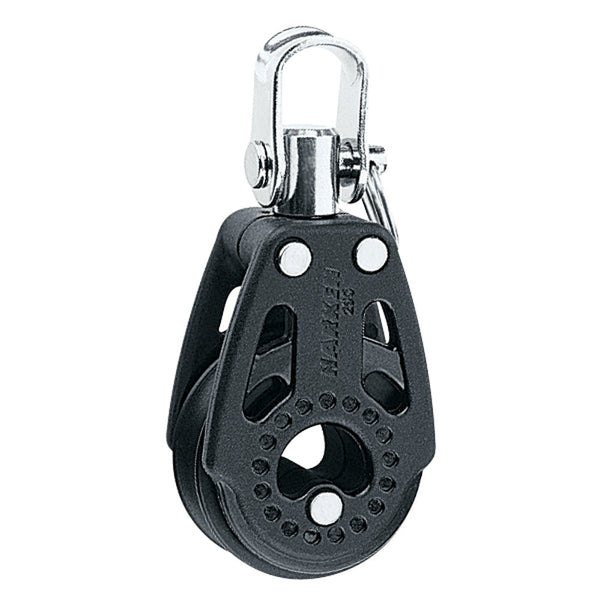

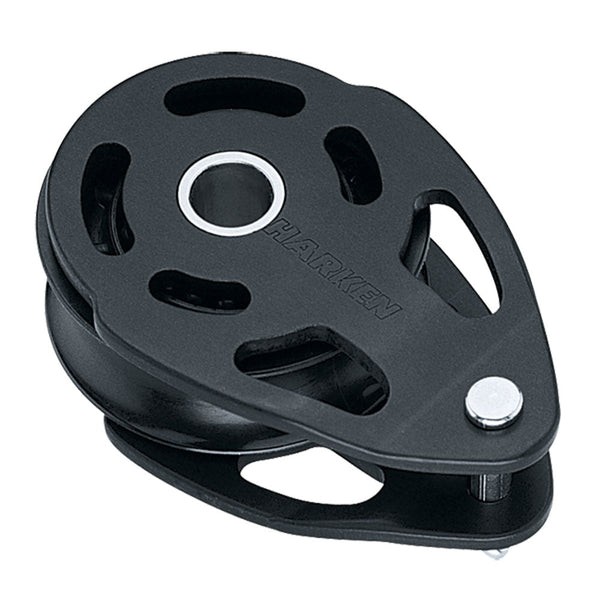

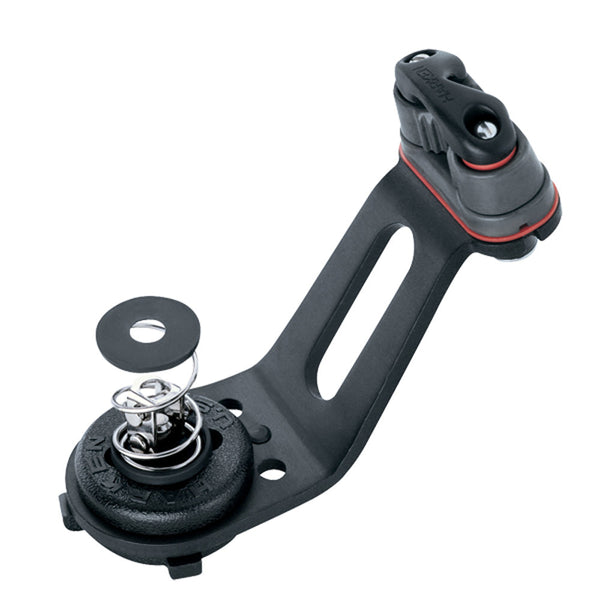

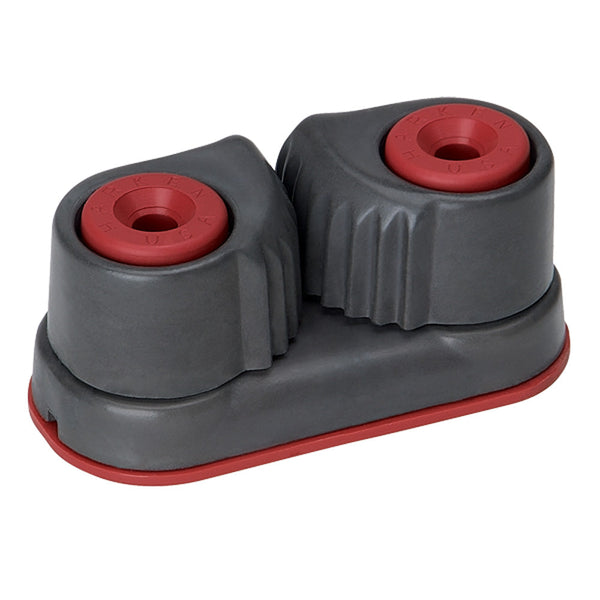

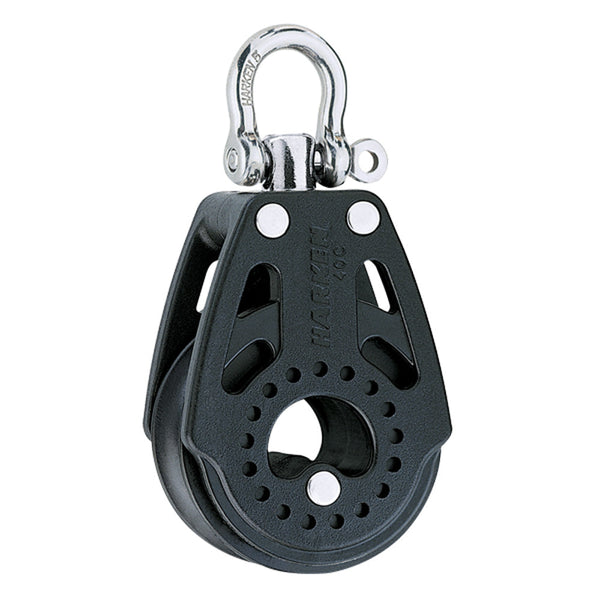

J/109 running rigging

Sheets, halyards and control lines whose length and diameter we have matched to the J/109 specification.

Go fast

J/109 tuning guide

The J/109 is tuned on its rod caps (V1), D1s and D2s with turns from a base, plus swing-arc rake and the backstay. Most guides read the shrouds on a Loos RT-10, but OneSails uses an RT-10M and Ultimate Sails a PT-3M, so their numbers aren't interchangeable. North's base has changed several times (55/30/15 in 2006, 52/15/27 in 2014–2016, corrected to 52/27/15 in 2018 after the D1/D2 values were found transposed, 60/40/25 from 2019); always match the table to its edition and check which column is D1 and which is D2. Cyclops gives forestay loads, not gauge readings.

North Sails — J/109 Tuning Guide (base settings and Quick Adjustments chart) with J/109 Speed Guide Current web pages (undated; base matches the 2019 card)

Written for
LM-2 light-medium jib (0–14 kn), MH-2 medium-heavy jib (12–25 kn), A2-4 AP spinnaker (0–20 kn), 4A heavy spinnaker (18–25 kn)
Tension gauge
Loos RT-10 (the chart header says 'Loos 10')
How it’s measured
Rake by swing arc: jib halyard pulled down to the top of the mast's black band, swung forward to mark the headstay, then measured from the mark to the deck at the stem. J from stem to front face of mast; mast base from front face of mast to bulkhead. The page heads the chart 'Turns from Base Settings'.
Source
North Sails, Current web pages (undated; base matches the 2019 card)

Base setup

Rake (swing arc)
2230 mm
Cap shrouds (V1)
60 on RT-10
D1
40 on RT-10
D2
25 on RT-10
J
4050 mm
Mast base
460 mm
Prebend
20 mm, without the mainsail hoisted
Mast butt
All the way forward in the adjustment slot (Speed Guide)

J/109 Tuning chart (shroud readings on Loos 10; turns; outhaul, traveller and backstay in inches; jib lead in holes)

TWS (kn)V1 cap (Loos 10)D1 (Loos 10)D2 (Loos 10)V1 turnsD1 turnsD2 turnsOuthaul (in)Traveller (in)Backstay (in)Jib lead (holes)Inhaul
0–8523121−4−1−1.56"18+05.5Handrail
8–14604025BaseBaseBase04+0.5–3"6Handrail
14–166546282.510.50Center5.5"7 hole6–8" outside handrail
16+7052322.5110Center5.5"7 holeNone

Trim by condition

Crew weight
Race class events close to the crew-weight limit; the boat powers up early in light air and full weight helps upwind. Upwind keep weight forward and out of the cockpit: one person forward of the shrouds in light air, everyone behind the shrouds at max beam in breeze.
Heel
Keep heel under about 20° by playing the traveller and feathering; a constant heel angle and little rudder movement matter most.
Jib
Only enough halyard to place the draft (3Di jibs need less). Set the lead so the telltales break evenly; keep some twist up high. Inhaul the clew inside the handrail at 8–15 kn; outside the rail in more wind and in very light air.
Main
Stall the top telltale about 60% of the time even in 8 kn. Fully hiked from 11 kn; backstay and cunningham from 13 kn. Vang snug at 8–10 kn, firm when overpowered; ease vang and cunningham at the windward mark.
Shifting gears
Moving the jib lead aft adds twist and depowers; small moves have a big effect. Then max outhaul, backstay as needed and traveller down in puffs. The traveller car rarely goes past the cockpit benches, so use vang and ease sheet instead.
Headsail ranges
LM jib 0–14 kn; the MH jib has been fast from 10 kn in flat water. A2 spinnaker to 20 kn, A4 from 18 kn.
Downwind crew
0–8 kn two crew forward of the shrouds; 9–16 kn just aft of the mast. Running in 10+ kn crew to weather with the boat flat, a little weather heel over 12 kn, slide aft around 16 kn.
Spinnaker
Tack line all the way down at tighter angles in light air; as the breeze builds and you sail lower, let it rise as high as the pulpit. Watch the tack: if it falls to leeward of vertical pull the tack line toward the pole, if it goes to weather ease it out (up to 3 ft). Trimming the furled jib's sheets ('fraculating') reduces headstay slack.
  • The page heads the chart 'Turns from Base Settings', yet the 14–16 and 16+ rows give the same V1/D1 turns (2.5 / 1) with different readings (65 vs 70, 46 vs 52). The 16+ turns therefore look like they are counted from the 14–16 setting; go by the Loos readings.
  • Column order on this chart is V1, D1, D2. The traveller column is in inches but its reference point isn't stated.
  • Speed Guide: https://www.northsails.com/blogs/north-sails-blog/north-sails-j109-speed-guide (by North class leader Jack Orr, undated).

North Sails — J/109 Quick Tune Guide (class-listed as 2019 Edition) Undated card; class site lists it as 2019 Edition, 6/25/2019

Written for
MNi-7 AP main, LM-1 jib 0–14 kn, MH-1 jib 12–25 kn, APG-4 genoa 0–14 kn (all 3Di RAW 760); A2-3 spinnaker 0–20 kn (AirX 650 nylon); A4-1 spinnaker 18–25 kn (AirX 700 nylon)
Tension gauge
Loos RT-10
How it’s measured
Swing-arc rake from the top of the black band to a mark on the headstay, measured to the deck at the stem. Adjustments are ± changes from base; the reverse-side race log records them as turns.
Source
North Sails, Undated card; class site lists it as 2019 Edition, 6/25/2019

Base setup

Rake (swing arc)
2230 mm
Caps / D1 / D2
60 / 40 / 25 on RT-10
J
4,050 mm
Mast base
460 mm, front face of mast to bulkhead
Prebend
20 mm without the mainsail

Quick adjustments (changes from base; base readings on RT-10)

True windSail selectionCapsD1sD2s
Light (0–10 kn)LM-1 / 2A−4−1−1.5
Medium (10–16 kn)LM-1 / MH-1 / 2ABase 60Base 40Base 25
Heavy (16–20 kn)MH-1 / 2A+5+2+1.5
  • The reverse side is a blank race-notes grid. The date is from the class site's listing, not printed on the card.

North Sails — J/109 Quick Tune Guide (class-listed as 2018 Edition) Undated card; class site lists it as 2018 Edition, 7/6/2018

Written for
MN-4 AP main (3DL 860M); APi-6 AP jib 0–18 kn (3Di 780iM); HA-4 heavy jib 15+ kn (3DL 860M); APG-4 genoa 0–14 kn (3DL 860M); A1.5-2 spinnaker 0–10 kn and asymmetric 10+ kn (AirX 650)
Tension gauge
Loos RT-10
How it’s measured
Same swing-arc method as the other North cards. Adjustments are ± changes from base (logged as turns on the reverse).
Source
North Sails, Undated card; class site lists it as 2018 Edition, 7/6/2018

Base setup

Rake (swing arc)
2260 mm
Caps / D1 / D2
52 / 27 / 15 on RT-10
J
4,050 mm
Mast base
460 mm
Prebend
20 mm without the mainsail

Quick adjustments (changes from base; base readings on RT-10)

True windSail selectionCapsD1sD2s
Very light (0–5 kn)AP-5 / 1.5A−3.5−3−2
Light (6–10 kn)AP-5 / 1.5A / 2A−3−2−1
Medium (10–14 kn)AP-5 / 2ABase 52Base 27Base 15
Medium-heavy (15–20 kn)HA-4 / 2A+2+1.5+1.5
Heavy (19–21 kn)HA-4 / 4A+3+2+2
  • Apart from the D1 and D2 base readings, which are reversed from the 2016 card (D1 27 / D2 15 instead of D1 15 / D2 27), this card's text matches the 2016 card exactly. On the class forum (Nov 2018) an owner reported North confirming the earlier D1/D2 values had been transposed and that this card fixes them.
  • The sail-selection column still says AP-5 although the sail list names the APi-6 jib.
  • The J/109 UK class links a 'North Sales Quick Tuning Guide' whose file name says 6-20-16, but the file is identical to this 2018 card.

OneSails — Generic J109 base setup (January 2022) 01/01/2022

Written for
Not stated
Tension gauge
Loos RT10M
How it’s measured
Forestay: genoa halyard to the gooseneck black band, swung forward to mark the forestay, then measured from the mark to the centreline of the forestay pin at the deck. Light and heavy settings are bottlescrew turns off/on from base. Base is used from 8 to 18 kn.
Source
OneSails, 01/01/2022

Base setup

Rig
Sparcraft aluminium, 2 spreaders (swept)
J
4.065 m
Mast foot
480 mm
Forestay (base)
2220 mm
Caps / D1 / D2
P50 & S50 / P55 & S55 / P22 & S22
Jib cars
Holes numbered from 1 going forward (no positions given)

Rig settings by wind (base on Loos RT10M; light/heavy as changes from base)

Setting0–8 kn (light)8–18 kn (base)18+ kn (heavy)
Forestay−52220 mm+5
Cap shrouds−1P50 & S50+2
D1s (lowers)−1P55 & S55+2
D2s—P22 & S22+1
BoomOn centrelineCentreline, start to play travellerPlay traveller
Backstay upwindLoose to 1/3 on at 8 kn1/3 on at 8 kn to maximum at 18 knMaximum, until horizontal creases from the first spreader to the clew just begin to show
Backstay downwindOffOff1/3 on
Main cunninghamSlackTake up slackSlack, then tighten fully at the upper end of the wind range
Jib luff tensionHorizontal creases just showingHorizontal creases removedTight with no horizontal creases
Vang upwindSlackTake up slackJust tight, then tighten fully at the upper end of the wind range
Main foot upwind40 mm from boom at mid-foot20 mm from boom at mid-footTight against boom
Main foot downwind50 mm from boom at max depth100 mm from boom at max depth100 mm from boom at max depth

Trim by condition

Caps
Don't over-tension the caps on the swept-spreader rig or the mast compresses and the top falls off.
D1/D2
Adjust until the mast is straight sideways when sailing upwind; mark bottlescrews so you know which way tightens.
Routine
Return the rig to base at the end of each day and note fast settings with wind and sea state.
  • The sheet carries the OneSails logo; the J/109 UK class links it as 'One Sails Tuning Guide'. It uses the same template as the older Ultimate Sails UK sheet below, with a different rig, gauge and numbers.
  • P/S = port and starboard readings. The guide labels D2s '(uppers)'; shown here as D2. Units for the forestay ±5 aren't stated (the base is in mm). A 'Jack pressure' row reads N/A in all columns.

Cyclops Marine — J109 Dynamic Tuning Guide Undated sheet (file created October 2021)

Written for
J2 and J3 jibs
Tension gauge
Cyclops ½" smarttune load sensor on the forestay: loads in kg, not gauge readings
How it’s measured
Forestay load in kg: static at the dock and dynamic while sailing upwind.
Source
Cyclops Marine, Undated sheet (file created October 2021)

Optimal forestay load (kg, Cyclops smarttune sensor)

Wind (kn)3–56–89–1011–1314–1617–1920+
Static / dock (kg)460460540540540540540
Dynamic / sailing (kg)460570730910149015701760
Sail selectionJ2J2J2J2J2/J3J3J3
  • Cyclops makes rig load sensors, not sails. The asterisk on 'Load (kg)*' isn't explained in the sheet.
  • The J/109 UK class hosts the same sheet as 'One Sails/Cyclops Tension Settings'.

Quantum Sails — Quantum J/109 Quick Tune v4 (class site lists it 8/31/2015)

Written for
Not stated
Tension gauge
Loos RT-10 (card written for open-body turnbuckles)
How it’s measured
Rake from the black-band mark on the headstay to the headstay tang at the deck flange. Mast step from front of mast to bulkhead. Turns are counted from the neighbouring setting, not from base (going from 9–13 to 0–5 the uppers lose 4 turns in total).
Source
Quantum Sails, v4 (class site lists it 8/31/2015)

Base setup

Rake
88.5" (2.248 m)
Mast step
18.5" (.469 m)
Uppers / Intermediates / Lowers (9–13 kn base)
52 / 15 / 20 on RT-10

Quick tune (readings on Loos RT-10; turns from the next setting toward base)

TWS (kn)Uppers (RT-10)Uppers turnsIntermediates (RT-10)Intermediates turnsLowers (RT-10)Lowers turns
0–536−27−17−0.5
6–846−2150200
9–13 (base)520150200
14–1958+1.520+230+1
20+64+1.524+235+0.5
  • Quantum names the shrouds uppers, intermediates and lowers (V1, D2, D1) and prints them in that order. Lowers read higher than intermediates, as on North's cards from 2018.
  • Readings and turns don't always move together (e.g. lowers 20 → 7 for −0.5 turn, intermediates 15 → 15 between 6–8 and base); shown as printed. The class site also hosts this card.

North Sails — J/109 QuickTune Guide (May 2014) and Quick Tune Guide (class-listed June 2016) 2014 card 'Updated 5/14'; 2016 card undated, class-listed 6/20/2016

Written for
2014: AP-5 jib 0–15 kn, HA-4 heavy jib 16–25 kn, A1.5-2 light spinnaker 0–10 kn, A2-2 AP spinnaker 8–20 kn, A4-1 heavy spinnaker 18–25 kn. 2016: MN-4 main, APi-6 jib 0–18 kn, HA-4 jib 15+ kn, APG-4 genoa 0–14 kn, A1.5-2 0–10 kn, asymmetric 10+ kn
Tension gauge
Loos RT-10
How it’s measured
Swing-arc rake; the 2014 card states the adjustments are turns from base.
Source
North Sails, 2014 card 'Updated 5/14'; 2016 card undated, class-listed 6/20/2016

Base setup

Rake (swing arc)
2260 mm
Caps / D1 / D2
52 / 15 / 27 on RT-10
J
4,050 mm
Mast base
460 mm
Prebend
20 mm without the mainsail

Quick adjustments (turns from base; base readings on RT-10), identical in 2014 and 2016

True windSail selectionCapsD1sD2s
Very light (0–5 kn)AP-5 / 1.5A−3.5−3−2
Light (6–10 kn)AP-5 / 1.5A / 2A−3−2−1
Medium (10–14 kn)AP-5 / 2ABase 52Base 15Base 27
Medium-heavy (15–20 kn)HA-4 / 2A+2+1.5+1.5
Heavy (19–21 kn)HA-4 / 4A+3+2+2
  • These base D1/D2 readings were later found to be transposed: a 2016–2018 class-forum thread (j109.org/forum/viewtopic.php?f=5&p=1465) ended with North confirming the swap, and the 2018 card prints D1 27 / D2 15.
  • The 2014 card is at j109.org/docs/j109_north_sails_quicktunecard_may2014.pdf.

North Sails — J-109 Target Boatspeeds – PHRF Configuration Undated sheet; class site lists it 4/20/2013

Written for
Genoas #1–#3 upwind; 121 m² PHRF spinnaker downwind
Tension gauge
Not applicable (performance targets)
How it’s measured
Speeds in knots, angles in degrees; heel in degrees; tack and gybe angles in degrees.
Source
North Sails, Undated sheet; class site lists it 4/20/2013

Upwind targets (PHRF)

TWS (kn)GenoaAWS (kn)Boat speed (kn)TWA (°)AWA (°)Heel (°)Tack (°)
619.985.014524.1690
8112.535.8543.524.21487
10114.76.241241782
12116.76.439.824.61980
14218.66.53918.620.377
16220.496.5338.825.82177
20324.126.5938.827.22377

Downwind targets (121 m² PHRF spinnaker)

TWS (kn)AWS (kn)Boat speed (kn)TWA (°)AWA (°)Heel (°)Gybe (°)
63.785.035140.983.61.578
84.696.04143.894.381.872
105.406.49149.7112.41.660
126.086.66159.9137.91.140
147.166.98168.7157.8124
168.567.41172.7166.4117
2011.658.25173.8169.51.216
  • The North logo is on the sheet; the file name says 'irc' but the title says PHRF. In-between lines show the genoa change: #2 from between 12 and 14 kn, #3 from between 16 and 20 kn.
  • The 14 kn upwind AWA (18.6) repeats the AWS and looks like a typo; shown as printed.

North Sails — J-109 Target Boatspeeds – Class Configuration Undated sheet; class site lists it 10/11/2011

Written for
Class sails; 108 m² class spinnaker downwind
Tension gauge
Not applicable (performance targets)
How it’s measured
Speeds in knots, angles in degrees; tack and gybe angles in degrees.
Source
North Sails, Undated sheet; class site lists it 10/11/2011

Upwind targets (class configuration)

TWS (kn)AWS (kn)Boat speed (kn)TWA (°)AWA (°)Tack (°)
69.754.7344.424.590
812.45.6643.224.787
1014.66.1441.724.784
1216.76.3440.324.980
1418.66.4639.325.478
1620.56.5338.825.876
2024.16.5938.827.276

Downwind targets (108 m² class spinnaker)

TWS (kn)AWS (kn)Boat speed (kn)TWA (°)AWA (°)Gybe (°)
63.754.9814184.280
84.686.0014494.475
105.406.4815011260
126.066.6316013840
147.066.9217116225
168.467.3417617215
2011.58.2217717415
  • North logo on the sheet. The upwind and most downwind figures match Quantum's 2007 one-design targets (rounded here).

Ultimate Sails (UK) — J109 Tuning Guide Undated web-page printout; class site lists it 1/1/2009

Written for
Not stated
Tension gauge
Loos PT3M
How it’s measured
Forestay: genoa halyard to the gooseneck black band, swung forward to mark the forestay, measured from the mark to the centreline of the forestay pin at the deck. Light and heavy settings are bottlescrew turns off/on from base; base is used from 8 to 18 kn.
Source
Ultimate Sails (UK), Undated web-page printout; class site lists it 1/1/2009

Base setup

Rig
Hall Spars aluminium, 2 spreaders (swept)
J
4.065 m
Forestay (base)
2.19 m
Caps / D1 / D2
27 / 25 / 10 on Loos PT3M
Jib cars
Holes numbered from 1 going forward (no positions given)

Rig settings by wind (base on Loos PT3M; light/heavy as changes from base)

Setting0–8 kn (light)8–18 kn (base)18+ kn (heavy)
Forestay—2.19 m—
Cap shrouds−127+1
D1s (lowers)−125+1
D2s−110+1
BoomOn centrelineCentreline, start to play travellerPlay traveller
Backstay upwindLoose to 1/3 on at 8 kn1/3 on at 8 kn to maximum at 18 knMaximum, until horizontal creases from the first spreader to the clew just begin to show
Backstay downwindOffOff1/3 on
Main cunninghamSlackTake up slackSlack, then tighten fully at the upper end of the wind range
Jib luff tensionHorizontal creases just showingHorizontal creases removedTight with no horizontal creases
Vang upwindSlackTake up slackJust tight, then tighten fully at the upper end of the wind range
Main foot upwind40 mm from boom at mid-foot20 mm from boom at mid-footTight against boom
Main foot downwind50 mm from boom at max depth100 mm from boom at max depth100 mm from boom at max depth

Trim by condition

Caps
Don't over-tension the caps on the swept-spreader rig or the mast compresses and the top falls off.
D1/D2
Adjust until the mast is straight sideways sailing upwind; mark the bottlescrews so the tightening direction is obvious.
Routine
Reset to base after each day's sailing and log fast settings with wind, sea state and crew position.
  • Readings are on a Loos PT-3M, so they can't be compared directly with RT-10 or RT-10M numbers. The sheet labels D2s '(uppers)'; the mast-foot and jack-pressure cells are blank.
  • Same template as the OneSails 2022 sheet above.

Quantum Sails — J/109 Class Tuning Guides (base rig settings, shroud adjustment and targets) © 2007

Written for
Not stated; targets are given for one-design (class) and PHRF set-ups
Tension gauge
Loos RT-10
How it’s measured
Headstay: genoa halyard to the top of the black band, swung out to mark the extrusion, measured to the deck beside the furling drum. Mast step from aft face of bulkhead to front face of mast (step max forward). J from front face of mast to stem/sheer.
Source
Quantum Sails, © 2007

Base setup

Headstay (swing arc)
2.26 (m)
Mast step
0.46 (m), step max forward
J
4.025 (m)
Prebend
0.02 (m)
V1 / D1 / D2
55 / 40 / 20 units

Shroud adjustment (from base)

TWS (kn)V1D1D2
5–10−4−2−2
10–15BaseBaseBase
15–20322

One-design upwind targets

TWS (kn)TWA (°)Boat speed (kn)AWS (kn)AWA (°)
644.44.739.7524.51
843.25.6612.4224.74
1041.76.1414.6424.67
1240.36.3416.6724.95
1439.36.4618.6125.35
1638.86.5320.4925.84
2038.86.5924.1227.17

One-design downwind targets

TWS (kn)TWA (°)Boat speed (kn)AWS (kn)AWA (°)
6140.94.983.7584.02
8143.76.014.6894.37
10149.56.485.4112.02
12159.86.636.06137.57
14170.86.927.06161.83
16175.57.368.46171.52
20176.58.2211.54174.05

PHRF upwind targets

TWS (kn)TWA (°)Boat speed (kn)AWS (kn)AWA (°)
6455.029.9824.07
843.55.8512.5324.21
1041.36.214.724.32
1239.86.3716.7224.62
1438.96.4918.6625.03
1638.46.5620.5425.54
2038.46.5624.1626.87

PHRF downwind targets

TWS (kn)TWA (°)Boat speed (kn)AWS (kn)AWA (°)
6140.95.043.7883.56
8143.86.044.6994.38
10149.76.55.4112.45
12159.96.666.08137.89
14168.76.987.16157.76
16172.77.418.56166.35
20173.88.2511.7169.45
  • Units for the base dimensions aren't printed; they read as metres. The shroud-adjustment numbers are presumably turns.
  • The PHRF downwind table lists the 14 kn row twice; shown once. The class site hosts an identical copy (j109.org/docs/quantum_tuning_guide_j109.pdf).

North Sails — J/109 Quick Reference Tuning Guide Undated; class site lists it as 2006 Edition, 6/29/2006

Written for
Not stated
Tension gauge
Loos RT-10
How it’s measured
Headstay by arc: genoa halyard to the top of the gooseneck black band, swung out to the headstay and marked, measured down to the deck at the headstay. Mast step from forward face of mast to aft edge of bulkhead. Turns from base.
Source
North Sails, Undated; class site lists it as 2006 Edition, 6/29/2006

Base setup

Mast step
460 mm
Headstay (arc)
2260 mm
Prebend
20 mm with no mainsail up
V1 / D1 / D2 (10–15 kn base)
55 / 30 / 15 on RT-10

Rig tensions (RT-10 base; turns from base)

True wind (kn)Upper shroud V1Lower shroud D1Intermediate shroud D2
0–10−4 turns−2.5 turns−2.5 turns
10–15 (base)553015
15–20+3 turns+2 turns+2 turns
  • Here D1 reads higher than D2, as on North's 2018 and later cards (the 2014/2016 cards had them transposed).

North Sails — J109 Base Settings / Rig Set Up (Bill Fortenberry and Tim Dawson) Undated; file created April 2004; described as a preliminary set-up

Written for
Overlapping genoas (written before class-jib racing began)
Tension gauge
Loos RT-10
How it’s measured
Headstay by swing arc from the top of the BAS band, measured down the headstay to the deck beside the furling drum. Mast heel from front face of mast to aft edge of bulkhead (forward-most position in the slider). Prebend at the point of maximum deflection between S1 and S2.
Source
North Sails, Undated; file created April 2004; described as a preliminary set-up

Base setup

Base wind
10–15 kn
Headstay (swing arc)
2260 mm
Mast heel
460 mm
Prebend
20 mm
Upper shroud V1
65 units / 2500 lbs
Lower shroud D1
40 / 1100 lbs
Intermediate D2
25 units / 1000 lbs
With the class jib
Reduce the base shroud readings by 10 units and use the same adjustment range

Shroud adjustment matrix (turns from base)

TWS (kn)V1D1D2
5–10−4 turns−2 turns−2 turns
10–15BaseBaseBase
15–20+3 turns+2 turns+2 turns
  • Early North set-up for genoa racing; the remaining pages are sail photos.

North Sails — North Sails J-109 Tuning Guide Undated; file created December 2003; class site lists it as 'North Sails UK Tuning Guide', 6/1/2004

Written for
Not stated (main and genoa photos)
Tension gauge
Loos RT10 (the text also calls it the R10 rod gauge), with pound equivalents
How it’s measured
Straight-mast method. Rake by swing arc from the top of the gooseneck black band to the headstay, measured down to the stem/sheer intersection. Prebend at maximum bend between S1 and S2.
Source
North Sails, Undated; file created December 2003; class site lists it as 'North Sails UK Tuning Guide', 6/1/2004

Base setup

Mast foot
Front face of mast at the sole 480 mm from the aft edge of the bulkhead (almost max forward on the plate)
J
4085 mm to the stem/sheer intersection (the summary table repeats it as 4050 mm)
Rake (swing arc)
2260 mm
Cap shrouds (.250 rod)
55 units (1800 lbs)
D2 (.198 rod)
23 units (950 lbs)
D1 (.250 rod)
46 units (1300 lbs)
Prebend
38 mm

Shroud tensions by wind (turns from base)

True windCap shroudsD2sD1s
Light, 10 kn and underBase −2 turnsBase −3 turnsBase −2 turns
Medium, 12–16 kn (base)552346
Heavy, 18 kn and overBase +4 turnsBase +3 turnsBase +2 turns

Trim by condition

Set-up order
Hand-tighten caps with D1/D2 slack and centre on the halyard; then bring caps to 55, D1s to 46 and D2s to 23, each started hand tight to keep the mast in column.
  • The document itself doesn't say North UK; that attribution comes from the class site's file name and listing.
  • Column order in this table is Caps, D2, D1 (different from later North cards). The J figure differs between the text (4085 mm) and the summary table (4050 mm).

Doyle Sails — J109 Preliminary Tuning Guide Undated; file created November 2003; class site lists it 4/1/2004

Written for
105% jib and 155% PHRF genoa
Tension gauge
Loos RT 10M (if available)
How it’s measured
Rake as a plumb from the back edge of the top of P (main halyard) to the deck behind the mast. Backstay set in psi on the hydraulic gauge.
Source
Doyle Sails, Undated; file created November 2003; class site lists it 4/1/2004

Base setup

Mast step
Centre of the step; 2 cm forward for heavy-air areas, 2 cm aft for light-air areas
J
4.05 m (with the butt centred gives fair bend)
Rake
2.5°: the plumb meets the deck 10.9" behind the back edge of the mast
Backstay at set-up
900 psi after attaching; up to 1800 psi if needed to take more shroud turns
Shrouds
Hand tight and centred, then 4 full turns each side (stop at 3 if too hard); about 38 on the Loos gauge as a starting point
D1 / D2
About one turn past hand tight, adjusted until the mast is straight sideways

Trim by condition

Under sail
Tighten the leeward shroud one turn per tack until the leeward rig just begins to unload in puffs; this naturally gives a tighter rig on windy days.
155% genoa
Use the same method; D2s may need easing 1–2 turns and D1s tightening ½–1 turn.
  • Preliminary guide written before the boat had raced much; the text doesn't say which shrouds the 38 reading applies to (presumably the caps).

J/Boats — J/109 Owner Guide: Tuning the Rig © J/Boats 2003 (file dated 2007)

Written for
Any; fine-tuning left to the sailmaker
Tension gauge
None (turns from hand tight)
How it’s measured
Rake from the back of the mast at deck level to a plumb on the main halyard.
Source
J/Boats, © J/Boats 2003 (file dated 2007)

Base setup

Rake
About 20" with the standard headstay and the mast step in the middle
Chainplates
Uppers in the outer hole, lowers in the inner hole, intermediates in the forward hole
Initial tune
Centre the mast hand tight, then uppers +11 turns, lowers +8 turns, intermediates +7 turns

Trim by condition

Tips
Pump the backstay down 2–3" before tightening the uppers; adjust leeward shrouds under sail and tack to do the other side. Check the tie-rod, then sail in a breeze and re-check the mast stays in column after the rod settles.
  • Builder's general starting point only.

Settings are summarised from each sailmaker’s published guide (checked 2026-11-02). Use the guide written for your sails, check it against the full guide, and stay inside the class rules.Rig tension gauges for the J/109

Technical

J/109 resource centre

How we verify parts

Fit verified
Each part listed here was matched to the J/109 by part number against the builder’s specification or a manufacturer’s class guide, then checked again by an independent reviewer.
Class rules
Fitting a part is not the same as it being legal for racing. Read the current J/109 class rules before changing equipment, and ask your class measurer if a part is not original equipment.
