J/24 fleet racing upwind in Hamburg

Photo: Johann-Nikolaus Andreae / Wikimedia Commons, CC BY-SA 2.0 (creativecommons.org/licenses/by-sa/2.0)

One-design race shop · Keelboat

J/24 Race Shop

Everything you need to prepare, compete, and win.

Shopping for

J/24

  • 65 verified parts
  • 14 brands
  • Fit checked Oct 2026

Fit verified for J/24

All J/24 equipment

65 parts

Can’t find a part for your J/24? Request a J/24 part

Official Harken dealer

J/24 deck layout

LOA
24 ft (7.32 m)
LWL
20 ft (6.10 m)
Beam
8.9 ft (2.71 m)
Displacement
3,100 lb (1,405 kg)
Ballast
950 lb (431 kg)
100% Sail Area
261 sq ft (24.25 sq m)

Traveler with Windward Sheeting Car

Traveler with Windward Sheeting Car — Harken layout for the J/24
Drawing: Harken

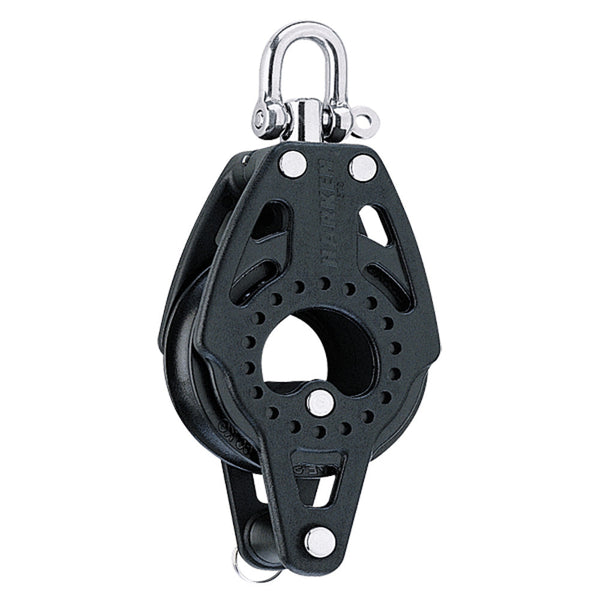

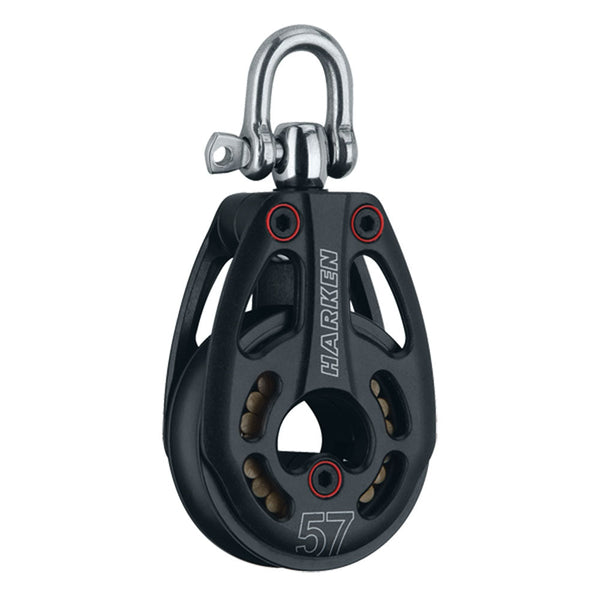

  1. 1 57mm Block — Swivel BecketHarken 2601 $62.95
  2. 2 22mm Windward Sheeting CarHarken 2745 $618.95

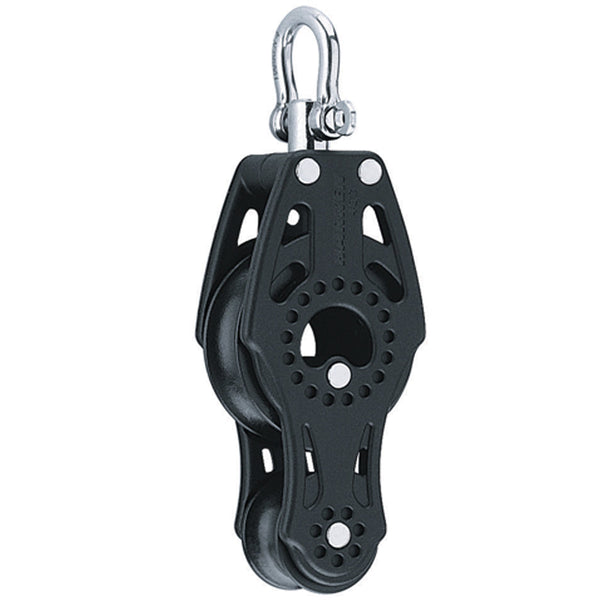

  3. 4 57mm Fiddle Block — SwivelHarken 2621 $66.95

Systems and part numbers as published by Harken (checked 2026-11-04). Specifications are Harken’s; class rules decide what is legal for racing.

Go fast

J/24 tuning guide

The J/24 is set up differently for each sailmaker's sails and for the wind and sea you race in. Pick the guide written for your sails, and always read shroud numbers with the gauge model that guide uses: Loos Model B and PT-2 readings are not interchangeable (North's base of 20/15 on a Model B is 15/12 on a PT-2).

North Sails — J/24 Tuning Guide (Newport) and Quick Tuning Charts 2019

Written for
Fathead main, genoa, class jib, spinnaker (Speed Guide: Fathead main, DX7TT genoa, FR2 spinnaker, blade jib)
Tension gauge
Loos PRO PT-2 (new) and Loos PRO Model B (old); the written setup uses the Model B
How it’s measured
Centre the mast by taking the genoa halyard to each chainplate and sighting up the back of the mast. Read tensions with sails down, in flat water.
Source
North Sails, 2019

Base setup

Spreader length
760 mm (as short as possible), mast surface to where the shroud touches the spreader end
Spreader deflection
160–165 mm for the Fathead main (string between the shrouds at the spreaders, to the aft side of the mast); sweep equal side to side. The Speed Guide gives 160–170 mm measured to the mast groove.
Mast length mark
7725 mm below the headstay pin centre (class rule 3.5.2); lower band edge 405 mm above the sheerline (minimum 400 mm)
Headstay
As long as possible, marked against the same point
J
As close to the 2925 mm maximum as possible; chock at deck
Mast butt
112.5" from the top of the 3rd stem-fitting bolt (inside the bow) to the mast front at the shoe on the I-beam
Base tension
Uppers 20 / lowers 15 on Model B (15 / 12 on PT-2), the 5–8 kn setting
Headstay check
Backstay connected but very loose: gauge tip about 40–50 mm from the wire. Too tight, move the butt aft; too loose, move it forward; then re-set the shrouds.
Prebend
2–2.25" (main halyard held at the gooseneck)
Backstay bridle
Blocks 6–8" below the Y with the adjuster slack; re-set whenever the shrouds change

Shroud tension by wind (2019 Quick Tuning Charts)

True wind (kn)Uppers PT-2Lowers PT-2Uppers Model BLowers Model BTurns, uppers / lowers
0–51391810−1 / −1
5–8 (base)15122015Base
8–10171323181 / 0.5
10–12181524210.5 / 0.5
12–14221827241.5 / 0.5
14–16242229271.5 / 1
16+262629310 / 1.5

Mainsail settings

Wind (kn)TravellerBackstayTop battenOuthaul
0–6All the way upNoneClosed 3°In ½"
7–12Down 3–4"¼ onClosed 3° to parallelIn ½"
12–18Middle½ to ¾ onParallel to open 3°In ½"
18+2–3" below centrelineMax onOpen 3–6°In ½"

Genoa settings

Wind & seaLeadHalyardSheet (leech off spreader)
0–6, flat1 hole aft of neutralWrinkles3–4"
0–6, chopOn neutralWrinkles3–6"
7–13, flatOn neutralJust smooth2–3"
7–13, chop1–2 holes forwardWrinkles2–4"
14–18, chop1–2 holes forwardSmooth4–6"
18+, chopOn neutralTight6–8"

Trim by condition

Outhaul
Clew ½" in from the black band at 0–4 kn; at the band from 4 kn.
Cunningham
None until about 12 kn, then only enough to take out luff wrinkles.
Vang
Loose to 8 kn; take out the slack at 8–15 kn; very hard above 15 kn so the boom doesn't lift when the sheet is eased. Downwind, set so the top batten is parallel to the boom.
Traveller
Fully to windward until the whole crew is hiking with legs out, then drop about 6" and use it to keep the boat flat down to mid-track; past that, add backstay rather than dropping further.
Backstay
Off until about 8 kn, then progressively on; at maximum the blocks reach the top of the pushpit. 1–2" changes matter.
Mainsheet
Top batten parallel to the boom, top telltale flying 50–60% of the time up to 10 kn; above that the telltale should fly all the time.
Genoa
Neutral lead (set in 4–8 kn) is where the sail touches the spreader and the chainplate at the same time. Drill extra holes between the factory holes. Halyard: a hint of wrinkles, err loose; mark it in ½" steps. Never trim closer than 1" to the spreader end.
Genoa leech (Speed Guide)
Light air 5–10" off until up to speed, then 3–5" (up to 8" in puffs and lulls, 18" out of tacks); medium 2–6"; breeze within 2", easing about a foot in puffs.
Class jib / blade
Change at 16–18 kn and up: about 16 kn in flat water, 18+ in waves, at full crew weight. Start the lead at the chainplates; move it forward if the luff breaks high first, aft if it breaks low first. Keep the luff smooth and balance helm with ½" sheet changes.
Spinnaker
Full hoist with 2–4" of luff curl; pole end level with the free clew and square to the apparent wind; adjust pole height in 1" steps. Bottom ring to 16 kn, then top ring (Speed Guide). In heavy air keep the clew inside the headstay and the crew to leeward to sail low.
Downwind (Speed Guide)
Backstay off unless 20+ kn, then half on. Above 20 kn hard vang and both twings down; below 20 kn weather twing halfway between lifeline and rail, leeward twing off.
Crew and sea
Sail flat except in very light air and as close to the 400 kg crew maximum as possible. In chop: lead further forward, more sheet ease and more halyard wrinkles at 7–13 kn.
  • Turn counts are for open-body turnbuckles; double them for Ronstan turnbuckles.
  • Shroud changes are allowed between races only.
  • The PT-2 chart's column headers read "Loos gauge B"; its title (and the numbers) are for the PT-2.

Quantum Sails — J/24 Tuning Guide and Quick Tune Charts June 2020 V3 (PT-2 chart: Fall 2018)

Written for
Main, genoa, blade jib, spinnaker (current range: TM-1 main, MaxQ-2 genoa, Tri-Radial S.F. class jib; AP main mentioned)
Tension gauge
Loos tension gauge; the 2020 guide doesn't name the model, but its numbers match Quantum's 2018 Model B chart. A separate 2018 chart gives PT-2 numbers.
How it’s measured
Count turns in half-turn steps. Prebend: pull the main halyard to the black band at the gooseneck and measure from the back of the mast at the spreaders to the front of the halyard.
Source
Quantum Sails, June 2020 V3 (PT-2 chart: Fall 2018)

Base setup

Mast length
Shortened to within 3 mm of the class maximum; headstay at class maximum
Spreader deflection
155 mm or 166 mm; the AP main (less luff curve) wants 155–160 mm. A thru-bar kit gives 155 mm; adjustable brackets are the alternative.
Mast butt (start point)
Measure 2,740 mm aft from the side of the 3rd stem-fitting bolt to the I-beam and mark it; the front of the mast sits 115 mm from that mark (not the step)
Butt target
2.5" prebend at uppers 20 / lowers 15; move the butt aft in ⅛" steps for more prebend, forward for less
Headstay at 20/15
"Negative 2.5–3 fingers" on the Loos gauge
Partners
Bottom of the black band at maximum J, 2,925 mm (sheerline/stem intersection to mast front); the partner blocks may need modifying
Centring
Tack shackle and toe-rail marks plus the genoa halyard with uppers at 20; straighten with the lowers
Rudder
Minimum weight 13.5 kg (29.76 lb)

Shroud tension, Model B (2020 chart)

True wind (kn)PrebendUppersLowersBackstay
0–52.5"18120
4–82.5"20150
8–132.25"2421+6
12–162"2724+6
16–191.75"2929+6
19+1.5"3031+2

Shroud tension, PT-2 (Fall 2018 chart)

True wind (kn)PrebendUppersLowersBackstay
0–52.5"16100
5–102.5"19130
8–122.25"2116+6
10–142"2320+6
12–161.75"2523+6
16+1.5"2527+2

Sail trim by wind (2020 chart, Model B)

True wind (kn)0–54–88–1312–1515–1919+
Uppers182024272931
Lowers121521242931
Genoa scallops¾"½"¼"¼"SmoothSmooth
Leech off spreader4"3"2"3.5"4–8"8–16"
Foot off shrouds5"4"2"2–4"2–5"4–6"
Main top battenParallel to 5°Parallel to 5°Parallel to 3°Parallel to 5°Open to depowerOpen to depower
Traveller11" up7" up2" up0–2" up0–2" down0–6" down
Backstay below8"10"12–16"14–22"22–32"22–32"
OuthaulEased 2"Eased 2"Eased 1"MaxMaxMax
Jib from spreader tip————3" insideSee full guide

Trim by condition

Main, 0–7 kn
Traveller to windward with the boom on or just above centreline, top batten parallel to the boom, outhaul eased 2", top telltale streaming about 80% (speed mode). To point, bring the boom up and close the top batten up to 6° with the telltale stalling about half the time; ease back to parallel to build speed.
Main, 8–14 kn
Bottom of the range: outhaul 1" off the band, crew fully hiked, top batten hooked about 5° for speed or 7° to point (about two ratchet clicks apart). 10–14 kn: outhaul to the band; depower with traveller first, then backstay, adding a click of mainsheet whenever backstay goes on.
Main, 15+ kn
Outhaul max and backstay hard; switch to vang sheeting (8:1) with the traveller about ¾ down and play the sheet.
Genoa leads
Neutral lead set in 8 kn is where the sail touches the spreader tip and the chainplate together; the range is 2 holes forward to 7 holes aft, with track holes drilled to 2 between each factory hole. Genoa range 0–18 kn.
Genoa, 0–7 kn
Loose halyard with ¾" scallops; lead 1–2 holes forward of median; work out to about 4–6" off the spreader; constant trimmer–driver talk.
Genoa, 8–14 kn
Tighten the luff to a hint of scallops; lead at median to 2 holes aft; ease only for wave sets or tactics.
Genoa, 15+ kn
Luff smooth, lead 3–7 holes aft. Flat water: lead aft and sheet harder. Chop: ease the sheet.
Blade jib, 17+ kn
Built to overlap the genoa so lighter teams can change earlier. Luff always smooth (set maximum halyard sailing downwind with the backstay off). Median lead: plunger square to the lower shroud, used about 80% of the time; middle batten parallel to centreline, upper leech about 3" inside the spreader tip, moving from 3" inside to 3" outside as the wind builds. Over 24 kn move the lead back 1"; ease 1–2" when overpowered.
Spinnaker
Pole on the lower ring 0–14 kn, upper ring 14+. Tight reaching in breeze: pole end about a foot below perpendicular and 3–6" off the headstay.
  • Quantum's own chart lists the 19+ uppers as 30 in the shroud table and 31 in the trim table, and uses slightly different wind bands in each.
  • The units of the backstay "+6 / +2" and the reference point for "backstay below" aren't stated in the chart.

OneSails — J 24 Tuning Guide 2024

Written for
Genoa (to 17 kn) and jib (17 kn+); no model names
Tension gauge
Loos Model B; convert to kg with the gauge's table for other models, and build your own tension-to-turns table
How it’s measured
Rake as forestay length, pin to pin
Source
OneSails, 2024

Base setup

Rake
Forestay 8600 mm, pin to pin
J
Mast at the deck (coaming) down to J max, 2910 mm
Mast foot
2790 mm, measured from the third bolt from the top (see the guide's diagram)
Spreaders
Opening given only in the guide's diagram

Shroud tension by wind (Model B)

True wind (kn)HeadsailUppers (V)Lowers (D)
0–4Genoa169
4–8Genoa2114
8–12Genoa2423
12–17Genoa2727
17–21Jib2931
22+Jib3032

Trim by condition

Waves
In big waves keep the rig slightly looser for power.
  • The guide labels the columns V and D (verticals and diagonals); we show them as uppers and lowers.

Ullman Sails — J/24 Rig Tension Guide (Loos B gauge) 2014

Written for
Not stated (blade jib from 18 kn)
Tension gauge
Loos Model B
How it’s measured
Record your own turn counts from the lowest to the highest setting: turns depend on the turnbuckle type.
Source
Ullman Sails, 2014

Shroud tension by wind (Model B)

True wind (kn)0–55–108–1210–1414–1818–22 (blade)22+
Uppers20232427292929
Lowers15182024303234
  • Ullman no longer publishes this guide on its own site; the link is to a copy hosted by canadianboating.ca. Rake, butt position, spreaders, prebend and trim aren't covered.

Hyde Sails — J/24 Tuning Guide 2004

Written for
Main, genoa, jib (including the 3D jib), spinnaker
Tension gauge
Loos Model B
How it’s measured
Check tensions with sails down, backstay fully off and boom centred; confirm the mast is straight and upright.
Source
Hyde Sails, 2004

Base setup

Forestay
Maximum 8670 mm, sheerline at the stem to the forestay/mast intersection
Mast & spreaders
Mast at minimum length; spreaders at minimum, 760 mm; spreader rake 155 mm (tip line to aft face of mast)
J
Deck chocks for maximum J
Mast heel
Front face 2855 mm from the 3rd bolt down on the stem (scribe 2750 mm, then 105 mm further aft). Over 23 kn move 10 mm forward; under 5 kn 10 mm aft.
Heel cross-check
Outside edge of the transom to the hatch entrance, then diagonally over the main bulkhead lip to the back of the mast: 4445 mm
Prebend
35–40 mm with moderate shroud tension and no backstay

Shroud tension by wind (Model B)

True wind (kn)0–56–1516–2222+
Uppers20242729
Lowers15212430

Trim by condition

Main, 0–8 kn
Traveller centred or to windward, top batten parallel, outhaul eased 10 mm, no kicker; sheet harder to point, ease for speed.
Main, 9–15 kn
Traveller centred, outhaul at the band, backstay and traveller in the gusts, moderate kicker.
Main, 16+ kn
Firm sheet, traveller down 150–200 mm, outhaul at the band, more backstay, firm kicker.
Genoa, 0–8 kn
Scallops just showing, lead forward, sheet to within 120 mm of the spreader tips.
Genoa, 9–15 kn
No scallops, lead forward, leech 100 mm off.
Genoa, 16+ kn
No scallops, lead one hole back, leech 150–200 mm off.
Jib
Change at about 18–20 kn depending on crew weight. Halyard just removes scallops; set the car so the bottom batten is parallel to centreline. For the 3D jib the car lines up roughly with the shroud base.
Spinnaker
Lower ring in light air; clews level; pole square to the apparent wind.
  • Hosted by the UK J24 Class Association.

North Sails — J/24 Tuning Guide – San Diego Designs about 2013

Written for
San Diego model main, genoa, class jib, spinnaker
Tension gauge
Loos PRO PT-2 and Model B
How it’s measured
Same method as North's current guide; base band is 10–13 kn.
Source
North Sails, about 2013

Base setup

Spreaders
760 mm; deflection 160–165 mm for the San Diego main
Mast length mark
7725 mm (rule 3.5.2); band lower edge 405 mm above the sheerline (minimum 400)
J
2925 mm
Mast butt
111 ⅝" from the top of the 3rd stem bolt to the mast front at the shoe
Base tension
Uppers 24 / lowers 21 on Model B (the 10–13 kn setting)
Headstay check
Backstay disconnected: gauge tip about 20–30 mm from the wire
Prebend
1–1.5"
Backstay bridle
Blocks 6–8" below the Y

Shroud tension by wind

True wind (kn)Uppers PT-2Lowers PT-2Uppers Model BLowers Model B
0–515121812
6–916132015
10–13 (base)19172421
14–1722192724
18+25263031

Mainsail settings

Wind (kn)TravellerBackstayTop battenOuthaul
0–6All the way upNoneClosed 3°In ½"
7–12Down 3–4"¼ onClosed 3° to parallelMax tight
12–18Middle½ to ¾ onParallel to open 3°Max tight
18+2–3" below centrelineMax onOpen 3–6°Max tight

Trim by condition

Traveller
Drop about 2" once the crew is hiked (not 6" as in the current guide); North avoids sailing below ¾ of the way down.
Genoa, jib, spinnaker
Same approach as North's current guide.
  • An older North edition for the San Diego-designed sails; it differs from the 2019 guide on base band, butt position and prebend. The guide gives no turn counts: record your own.
  • The link is to a copy hosted by a university sailing club.

Hood Sails — J/24 Tuning Tips Undated archive

Written for
Mylar No.1 / genoa, 100% jib, main, spinnaker
Tension gauge
Not stated
How it’s measured
Shroud figures are given without a gauge or units, so they can't be compared with Loos numbers.
Source
Hood Sails, Undated archive

Base setup

Spreaders
Minimum length; 155 mm sweep (tip line to back of mast, class rule 3.5.3(h))
Mast heel
Front of the mast 315 mm from the main bulkhead on the I-plate
J
Class maximum
Prebend
30 mm with medium shrouds and no backstay

Shroud settings (units not stated)

True wind (kn)UppersLowers
0–8400300
9–15450400
16+600600

Trim by condition

Genoa
Under 8 kn, 10–15 cm off the spreader; above 8 kn trim progressively to 1 cm from the tip. Lead in the front half of the track: forward for light air or chop, aft in breeze.
Jib
Change at about 20 kn, using the front 3" of the track.
Main
Light: traveller up, outhaul eased 5 cm. Medium: traveller centred, outhaul eased 2 cm, medium kicker, backstay in gusts. Heavy: more backstay, firm kicker, outhaul to the band. Cunningham only to remove wrinkles.
Spinnaker
A second pole ring 12–18" below the normal one (class rule 3.5.2(f)).
  • Old Hood/Intersail page kept on an archive site.

Doyle Sails — J/24 sail range notes Current page

Written for
Doyle J/24 main, genoa and working jib
Tension gauge
Not published
How it’s measured
Doyle's page offers a tuning guide but doesn't publish it as a file; ask Doyle for the full numbers.
Source
Doyle Sails, Current page

Base setup

Main prebend
No more than 1¼"

Trim by condition

Genoa
Used up to about 18 kn.
Working jib
From about 20 kn; move the lead back above 25 kn.

Settings are summarised from each sailmaker’s published guide (checked 2026-11-02). Use the guide written for your sails, check it against the full guide, and stay inside the class rules.

Technical

J/24 resource centre

How we verify parts

Fit verified
Each part listed here was matched to the J/24 by part number against the builder’s specification or a manufacturer’s class guide, then checked again by an independent reviewer.
Class rules
Fitting a part is not the same as it being legal for racing. Read the current J/24 class rules before changing equipment, and ask your class measurer if a part is not original equipment.
