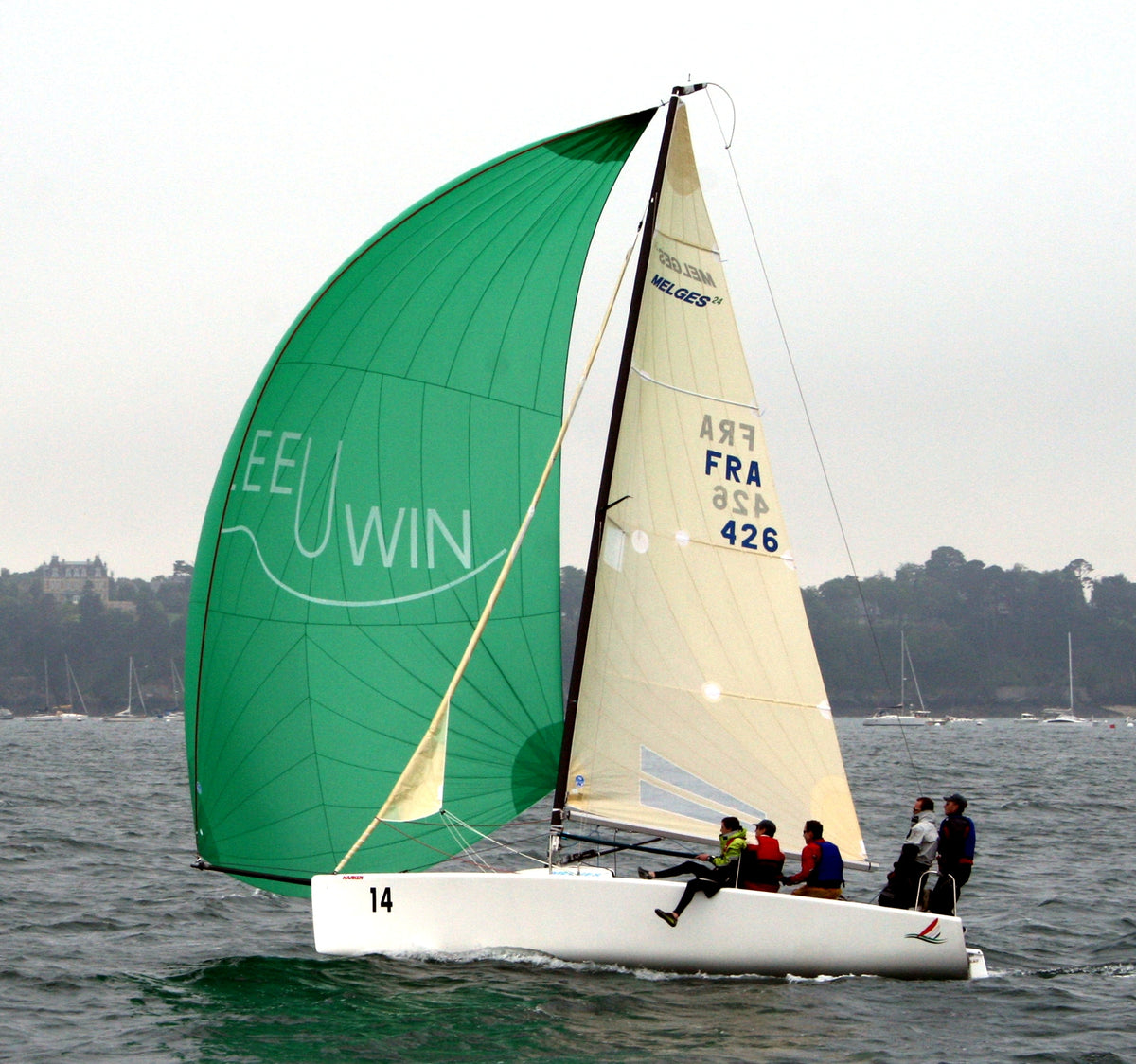

Melges 24 sailing under a green gennaker

Photo: Remi Jouan / Wikimedia Commons, CC BY-SA 3.0 (creativecommons.org/licenses/by-sa/3.0)

One-design race shop · Keelboat

Melges 24 Race Shop

Everything you need to prepare, compete, and win.

Shopping for

Melges 24

  • 64 verified parts
  • 14 brands
  • Fit checked Nov 2026

Fit verified for Melges 24

All Melges 24 equipment

64 parts

Can’t find a part for your Melges 24? Request a Melges 24 part

Official Harken dealer

Melges 24 deck layout

Length
24 ft (7.82 m)
Beam
8 ft 2 in (2.499 m)
Draft
5 ft (1.52 m)
Weight
1,783 lb (809 kg)
Main
264 sq ft (21.0 sq m)
Jib
126 sq ft (12.0 sq m)
Spinnaker
670 sq ft (55.9 sq m)

Mainsheet

Mainsheet — Harken layout for the Melges 24
Drawing: Harken
  1. 1 40mm T2™ Loop Soft-Attach BlockHarken 2148 $51.95
  2. 3 Standard Cam-Matic® Cleat - 150Harken 150 $44.95
  3. 4 57mm T2™ Soft-Attach BlockHarken 2152 $53.95
  4. 5 57mm T2™ Soft-Attach BlockHarken 2152 $53.95
  5. 6 57mm T2™ Loop Soft-Attach BlockHarken 2151 $60.95
  6. 7 75mm Cheek Ratchamatic® BlockHarken 2682 $171.95
  7. 8 75mm Cheek Ratchamatic® BlockHarken 2682 $171.95
  8. 9 38mm Wire BlockHarken 304 $77.95
  9. 10 Standard Cam Base — SwivelHarken 144 $180.95
  10. 12 57mm Double Block — SwivelHarken 2602 $118.95
  11. 14 40mm T2™ Loop Soft-Attach BlockHarken 2148 $51.95

Systems and part numbers as published by Harken (checked 2026-11-04). Specifications are Harken’s; class rules decide what is legal for racing.

Go fast

Melges 24 tuning guide

The Melges 24 is tuned from a fixed rake of 36′6½″ (11.140 m, masthead to the transom/hull-bottom corner) and a base upper-shroud tension, then wound up or down by counted turns as the wind changes; shrouds may be adjusted while racing. Turn counts depend on the turnbuckle type (North and Ullman count Ronstan turns, Quantum counts open-body turns), and the base reading is quoted on different gauges (North: 16 on a Loos Model B; Ullman: 20 Model B = 16 PT-2; Quantum: 15 on a PT-2), so stay inside one guide.

North Sails — Melges 24 Tuning Guide (with Melges 24 Speed Guide) Current web page (no revision shown)

Written for
North Melges 24 main, jib and asymmetric spinnakers (Speed Guide: 3Di main and jib, reacher and runner spinnakers)
Tension gauge
Loos Model B for the uppers; lowers set by sighting mast sag (with a Model B reading for the base)
How it’s measured
Rake: 50′ tape hoisted two-blocked on the main halyard (shackle removed), measured from the masthead to where the transom meets the bottom of the hull. Uppers at 16 when measuring. Centre the mast by measuring from the masthead to the chainplates, then to the deck at the upper-sidestay position, on each side.
Source
North Sails, Current web page (no revision shown)

Base setup

Rake
36′6½″ (11.140 m), adjusted with the turnbuckle above the Hyfield lever, with uppers at 16 (Model B)
Uppers (base)
16 on a Loos Model B, the 6–8 kn setting
Lowers (base)
Model B pulled to the line reads 68 mm from the shroud to the end of the gauge; in use about ¾″ leeward sag
Pre-stretch
Wind the uppers on 18 turns and the lowers 15 turns, check the mast is straight, then return the uppers to 16 and re-check centring and rake
Spreader marks
Dark tape 12″ (305 mm) in from each spreader tip, used to judge jib trim
Jib lead (base)
Third bolt head from the back of the jib track (drill extra holes either side of it)
Turnbuckles
Chart is written for Ronstan turnbuckles and the internal-wire jib halyard; on open-body turnbuckles use ½ turn for each full Ronstan turn

Shroud settings, standard (wire-halyard) forestay: turns from base on Ronstan turnbuckles (base uppers = 16 Model B)

Wind (kn)UppersLowers
0–6 (light)Loosen 2 turns from base¾″ leeward sag, loosen 1 turn from base
6–8 (base)Loos 16 – base¾″ leeward sag – base
7–10+3+2
10–1164
11–1296
12–13128
13–151511
15–171814
17–192017
19–212320
21–232524
23+Loosen forestay 5 turns, go to 2927

Shroud settings, fixed forestay with Vectran jib halyard: turns from base (base uppers = 16 Model B)

Wind (kn)Uppers / forestayLowers
0–6 (light)Loosen 2 turns from base¾″ leeward sag, loosen 1 turn from base
6–8 (base)Loos 16 – base¾″ leeward sag – base
7–10Loosen forestay turnbuckle 6 full turns from base; uppers +2 from base+1.5
10–1153.5
11–1285.5
12–13Loosen forestay 12 full turns from base; uppers +10 from base7.5
13–15129
15–18Loosen forestay 18 full turns from base; uppers +15 from base12
17–201814
19–212116

Trim by condition

Lowers
Set by sighting up the back of the mast; keep the middle from bending to windward. Only when the main inverts and flogs in puffs, tighten the lowers so the top falls off to leeward. With tight lowers always keep some backstay on downwind or the mast can invert and break.
Sea state
In waves err slightly tight on the shrouds (softer backstay, looser mainsheet); in flat water err light for more backstay and bend. Leave the dock at the light-medium base and set for the lightest wind expected on the first beat.
Main sheet
Light–moderate: top-batten telltale stalled about 25% of the time (second telltale always flying), top batten parallel to centreline; heavy air: top batten about 5° open.
Backstay
None upwind until about 12 kn true, then ease/trim the mainsheet with every backstay change; in puffy air play backstay rather than mainsheet; very windy, backstay hard and work the main.
Outhaul
Clew at the black band with crew on the rail; 1″ in when crew is in the boat; 2–3″ in downwind (tight when tight-reaching in breeze).
Vang
Snug once overpowered so easing sheet doesn't open the leech; harder to flatten the lower third. Downwind, top batten parallel to the boom; mark an approximate downwind setting.
Cunningham
Off below 16 kn (slight luff wrinkles); above 16 kn just enough to remove wrinkles; off downwind.
Traveller
Keep the car between the helmsman's foot rests. Light air at the windward foot rest; crew hiking: centred or above centreline in chop; very windy: centred or raised with a soft sheet.
Jib
½″ of sheet makes a big difference. Lead one special hole forward of base in light air, aft of base above base conditions, up to 3 holes aft in heavy air (further forward in chop). Trim until the upper leech telltale is on the edge of stalling. Tack line set for slight luff wrinkles; smooth in very heavy air. Keep the leech cord loose.
Spinnaker
Tack down to the pole end on reaches; when it will ride straight up, ease the tack line 12–18″. Set and douse behind the shrouds; gybe inside (tack line over the sheet).
Speed Guide (Brian Janney)
Crew limit 825 lb (375 kg), usually five aboard. About 20 turns from base to 20 kn. About 75% backstay from 12 kn up; if you keep easing backstay, ease the shrouds, and if near maximum backstay, tighten them. In 12 kn the jib telltale can stall slightly; ease the jib ½″ as it gets windier. Boat begins to plane at about 14 kn. Keep at least 2.5 kn of speed on the starting line.
  • The 7–10 kn row overlaps the 6–8 base band, and later rows give bare numbers; the guide reads them as cumulative turns on from base.
  • The web page cuts off part-way through the spinnaker douse section.
  • North recommends recording turnbuckle numbers (or measuring open-body stud gaps with a micrometer) at base so the setting can be repeated.
  • The rake is printed as 36′6½″ (11.140 m); 36′6½″ converts to about 11.138 m.
  • Speed Guide (Brian Janney, undated): https://northsails.com/sailing/en/resources/melges-24-speed-guide

Quantum Sails — Melges 24 Quick Tune (Dyform shrouds) 2026_v13

Written for
Quantum Melges 24 main and jib; AIRX650 spinnakers (Z1 AP runner 9–14 kn, V4 reacher 0–8 and 15+ kn)
Tension gauge
Loos PT-2
How it’s measured
Rake by hoisting a tape to the masthead on the main halyard, measured to the transom edge at the waterline. Turns are full turns from base on open-body turnbuckles; record caliper readings between the turnbuckle ends at base.
Source
Quantum Sails, 2026_v13

Base setup

Rake
36′ 6½″
Uppers
15 on PT-2
Lowers
15 on PT-2, then 7 full turns off
Base wind
All turns are from base, the 5–6 kn setting
Rig
Black Southern Spars mast with Dyform upper and lower shrouds, open-body turnbuckles
Jib lead numbering
Holes numbered 0–5; hole #2 is the drilled-out 3rd bolt head from the back of the track; base lead (#1) for 5–6 kn is one hole forward of it

Quick Tune by true wind (turns from base; PT-2 base 15/15 −7)

TWS (kn)UppersLowersMast sagJib leadJib cunnMain cunnTraveller (upwind)Vang (upwind)Backstay (upwind)Jib furl (downwind)Spinnaker (downwind)
0–4−1−225 mm0EaseNoneMax up00InV4
5–6BaseBase20 mm0EaseNoneMax up00InV4
7–93215 mm1SomeNoneUp 8"Slack out0InZ1/V4
9–126410 mm1Some20%Up 6"30%30%In/OutZ1
12–1410802Smooth40%Up 6"50%40%OutZ1
15–18141202 or 3Smooth60%Up 4"60%50%OutV4
19–201614Poke3Smooth80%Up 4"75%80%OutV4
21–241816Poke4SmoothMaxUp 2"75%MaxOutV4
25+2020Max poke4SmoothMaxUp 2"75%MaxOutV4

Trim by condition

Backstay
Above 12 kn hook the backstay bridle around the motor mount to get maximum tension.
Lowers in breeze
Make sure the lowers are tight from 15 kn when overpowered so the headstay is properly tensioned and the main doesn't invert too early (clew-to-spreader area).
Light-air race report (Quantum 'Podium Insights', Scott Nixon, July 2018)
Quantum's team sailed at its base tune with 15 on the uppers (the article says PT1 gauge), lowers backed off 1.5 full turns for almost 1″ of sag at the spreaders with no backstay, jib lead in the third hole forward of the third screw head, traveller fully to windward, about 20/40/60% backstay with one/two/all crew hiking, target upwind speed around 5.3 kn.
  • The chart shows jib lead 0 at the 5–6 kn base row, while its tips call the 5–6 kn base lead #1; check which hole numbering you use.
  • The 'Podium Insights' article (https://www.quantumsails.com/en/resources-and-expertise/articles/podium-insights-a-detailed-review-of-how-melges-24) quotes the uppers on a PT1 gauge while the chart uses a PT-2, so treat that reading with care.
  • Not for older boats with other masts or rod/wire shrouds; the chart says it is for the black Southern Spars mast with Dyform shrouds.

Ullman Sails — Melges 24 Tuning Guide, Tuning Chart and Sailing Guide Undated (file names on the host say 2014; PDF metadata dates the guides to 2009–10; Tickler: Version 5)

Written for
Ullman Melges 24 main, jib and asymmetric spinnaker
Tension gauge
Loos Model B with PT-2 equivalents in brackets (the chart quotes the base as 16 on a PT-2)
How it’s measured
Rake: main halyard tied to a 50′ tape, two-blocked, measured to the intersection of the hull and the bottom edge of the transom, with some rig tension on. Turns are full turns on Ronstan calibrated turnbuckles with the old forestay system. Jib lead measured from the centre of the jib-car pin to the back edge of the cabin coaming at deck level.
Source
Ullman Sails, Undated (file names on the host say 2014; PDF metadata dates the guides to 2009–10; Tickler: Version 5)

Base setup

Rake
36′6½″; pull forward to 36′8″ in under 7 kn with crew in the boat (then loosen uppers 6 and lowers 3 turns to keep the same tension)
Base wind
8–11 kn (the text also calls it 7–11 kn)
Uppers (base)
20 on Model B (16 on PT-2)
Lowers (base)
Tighten to 18 Model B (15 PT-2), centre the middle of the mast by sighting, then loosen 15 turns; sailing upwind they should allow ½–1″ leeward sag between the black band and the hounds
Shroud rule of thumb
Turn the caps twice as much as the lowers until the main starts luffing, then bring the lowers up to match (e.g. 18 over 9, 18 over 18, then 21 over 21); change in 3-full-turn steps

Tuning chart by wind (full turns from base on Ronstan turnbuckles)

Wind (kn)0–678–1112–1516–1920+
Mast rake36′8″36′6.5″36′6.5″36′6.5″36′6.5″36′6.5″
Uppers−12−6 turns16 on Loos PT-2 (base)+6–12 turns+18–24 turns27 turns
Lowers−6−3 turnsSee tuning guide+3–6 turns+9–24 turns27 turns
BackstayLooseLooseLooseMediumMoreMax
Traveller (distance below centreline)Centre boomCentre boom0–6"0–1"1" above centre1" above centre
Outhaul (mid-foot from boom)2–3"2"1"TightTightTight
Upwind vangLooseLooseLooseSnugMax tightSlight ease
Jib lead (cabin to jib-car pin)206 mm206 mm184 mm162 mm162 mm155 mm
Jib luff tensionWrinklesWrinklesWrinklesSlight wrinklesNo wrinklesTight
Spinnaker tack lineTightTightEased 1"–3"TightTightTight
CunninghamWrinklesWrinklesWrinklesWrinkles outTightTight

Trim by condition

Main sheet
Light air: aft 2′ of the top batten parallel to the boom, or 5–10° open in light air and chop. Medium: sheet hard, top batten parallel. Overpowered: use the sheet to control twist.
Backstay
Loosest until overpowered at about 12 kn, then play it in puffs (ease the sheet when easing backstay). Hook the starboard backstay leg around the motor mount for more throw. Downwind: off in light–medium air; leave most of it on when planing.
Traveller
Boom on centreline until overpowered, then drop 2″ at a time, alternating with backstay. Heavy air and waves: car centred, max vang, play the sheet; in extreme conditions ease the vang and use the sheet.
Vang
Loose in light air; slack out as the sheet comes on; very hard when vang-sheeting. Light-air downwind top batten 10–15° open from the boom; in full planing sheet through the last upper mainsheet block and leave the vang loose.
Outhaul
Light air and chop: foot 1–2″ off the middle of the boom; otherwise tight upwind. Downwind 5″ in displacement mode, 7–8″ planing.
Cunningham
Light: wrinkles; medium: just removed; heavy: very firm. Off downwind.
Jib
Trim until the sewn leech telltale is about to stall (it may stall in very light air, chop, out of tacks and off the line). Leads 206 / 184 / 162 mm for light / medium / heavy. Luff: slight wrinkles light, slight to none medium, none to very tight heavy; leech line as loose as possible.
Spinnaker
Tack to the pole in light and heavy air; eased 1–2″ in medium (to the pole in very choppy water). Keep about 6″ of luff curl and never over-trim. Always gybe inside.
Crew
Flat upwind; weight forward to the shrouds in light air, from the shroud aft in medium, about 1′ further aft in heavy air.
  • The tuning guide says base is 8–11 kn and also 7–11 kn, and quotes the uppers as 20 (16) while the chart names only the PT-2 reading of 16.
  • Heavy-air lowers are a wide range (+9–24 turns); see the guide's rule of thumb for how to step them.
  • Ullman no longer hosts these files; the links are copies on canadianboating.ca. Related copies: Sailing Guide (https://canadianboating.ca/wp-content/uploads/2020/05/Ullman-Sails-Melges-24-Racing-Guide-2014.pdf), Tuning Chart (https://canadianboating.ca/wp-content/uploads/2020/05/Ullman-Sails-Melges-24-Tuning-Chart-2014.pdf) and Erik Shampain's 'Tickle your Melges 24' boat-prep list V5 (https://canadianboating.ca/wp-content/uploads/2020/05/Ullman-Sails-Melges24-Tickle-V5.pdf).

Settings are summarised from each sailmaker’s published guide (checked 2026-11-02). Use the guide written for your sails, check it against the full guide, and stay inside the class rules.

Technical

Melges 24 resource centre

How we verify parts

Fit verified
Each part listed here was matched to the Melges 24 by part number against the builder’s specification or a manufacturer’s class guide, then checked again by an independent reviewer.
Class rules
Fitting a part is not the same as it being legal for racing. Read the current Melges 24 class rules before changing equipment, and ask your class measurer if a part is not original equipment.
