J/70 Race Shop
Everything you need to prepare, compete, and win.
Fit verified for J/70
All J/70 equipment
120 parts
Fit verified for J/70
Harken
Harken Plain Top Winch Radial Size 8 - Aluminum Black / One Speed
Part # HARB8A
$299.95
$428.00Fit verified for J/70
Lewmar
Lewmar Winch Handle - 8 in. / Aluminum / Single Hand Grip / Locking
Part # LEW29141011
$116.00
$170.95Fit verified for J/70
Lewmar
Lewmar Winch Handle - 10 in. / Plastic - Red / Single Hand Grip / Locking / Floating
Part # LEW29145311
$79.33
$113.95Fit verified for J/70
Lewmar
Lewmar Winch Handle - 10 in. / Chrome / Double Handle Grip / Locking
Part # LEW29141122
$196.00
$297.95Fit verified for J/70
Harken
Harken Winch Handle - 8 in. / Aluminum / Speed Grip / Locking
Part # HARB8ASG
$109.95
$156.85Fit verified for J/70
Lewmar
Lewmar Winch Handle - 10 in. / Aluminum / Single Hand Grip / Locking
Part # LEW29141111
$125.00
$184.95Fit verified for J/70
Harken
Harken Winch Handle - 8 in. / Bronze / Single Hand Grip / Locking
Part # HARB8BL
$126.95
$180.90Fit verified for J/70
Harken
Harken Winch Handle - 10 in. / Aluminum / Single Hand Grip / Locking
Part # HARB10AL
$109.95
$156.85Fit verified for J/70
Harken
Harken Winch Handle - 8 in. / Chrome / Single Hand Grip / Locking
Part # HARB8CL
$126.95
$181.20Fit verified for J/70
Harken
Harken Winch Handle - 10 in. / Chrome / Single Hand Grip / Locking
Part # HARB10CL
$148.95
$212.85Fit verified for J/70
Harken
Harken Winch Handle - 8 in. / Chrome / Speed Grip / Locking
Part # HARB8CSG
$145.95
$208.00Fit verified for J/70
Lewmar
Lewmar Winch Handle - 10 in. / Chrome / Single Hand Grip / Locking
Part # LEW29141121
$153.00
$231.95Fit verified for J/70
Lewmar
Lewmar Winch Handle - 8 in. / Plastic - Red / Single Hand Grip / Locking / Floating
Part # LEW29145301
$74.19
$104.95Fit verified for J/70
Harken
Harken Winch Handle - 10 in. / Chrome / Speed Grip / Locking
Part # HARB10CSG
$153.95
$220.15Fit verified for J/70
Harken
Harken Winch Handle - 8 in. / Aluminum / Single Hand Grip / Locking
Part # HARB8AL
$94.95
$135.00Fit verified for J/70
Harken
Harken Winch Handle - 8 in. / Aluminum / Ball Grip / Locking
Part # HARB8ASGLP
$106.95
$152.05Fit verified for J/70
Harken
Harken Winch Handle - 10 in. / Aluminum / Double Handle Grip / Locking
Part # HARB10ADL
$182.95
$261.50Fit verified for J/70
Harken
Harken Winch Handle - 10 in. / Bronze / Single Hand Grip / Locking
Part # HARB10BL
$193.95
$277.30Fit verified for J/70
Harken
Harken Winch Handle - 10 in. / Aluminum / Speed Grip / Locking
Part # HARB10ASG
$124.95
$177.55Fit verified for J/70
Harken
Harken Cam Cleats - Micro Fairlead (Red) - For Carbo-Cam 471
Part # HAR424R
$6.65
$8.50Fit verified for J/70
Harken
Harken Cam Cleats - Micro Fairlead (Black) - For Carbo-Cam 471
Part # HAR424B
$7.95
$8.50Fit verified for J/70
Harken
Harken Block - Carbo 40mm Single - Stand-Up - Fixed Head
Part # HAR2652
$41.95
$48.05Fit verified for J/70
Harken
Harken Track 22.0 mm High-Beam Slide Bolt - Aluminum - Length: 3.9 ft (1.2 m)
Part # HAR272112M
$100.95
$115.00Fit verified for J/70
Harken
Harken Cam Cleats - Standard Fairlead (Blue) - For Carbo-Cam 365
Part # HAR425BL
$7.55
$9.65Fit verified for J/70
Harken
Harken Twist Shackle - Pin Dia: 5/16 in (8.0 mm)
Part # HAR2119
$28.95
$32.75Fit verified for J/70
Harken
Harken Cam Cleats - Standard Fairlead (Black) - For Carbo-Cam 365
Part # HAR425B
$8.95
$9.65Fit verified for J/70
Harken
Harken Furlers - Hoistable Furling Swivel - Luff Wire Dia: 3/16 in (5.0 mm)
Part # HAR465
$333.95
$417.85Fit verified for J/70

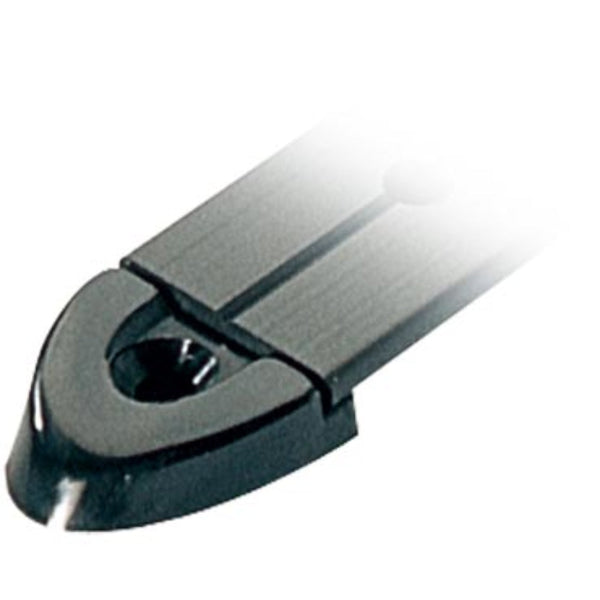

Ronstan
Ronstan Genoa Car - T-Track Composite Slide - Series 25 - w/ Series 40 Orbit Block & Plunger Stop - Length: 4.0 in (102.0 mm)
Part # RONRC72536S
$105.00
$119.68Fit verified for J/70
Harken
Harken Cam Cleats - Standard Fairlead (Red) - For Carbo-Cam 365
Part # HAR425R
$7.55
$9.65Fit verified for J/70
Ronstan
Ronstan Tiller Extension Battlestick (Tapered) (Carbon Fibre) - Length: 3.4 ft (1030 mm)
Part # RONRF3130C
$128.63
$151.33Fit verified for J/70
Harken
Harken Cam Cleats - Micro Fairlead (Yellow) - For Carbo-Cam 471
Part # HAR424Y
$6.65
$8.50Fit verified for J/70
Ronstan
Ronstan Snap Shackle - Swiveling Small Bail - Length: 2 11/16 in (69.0 mm)
Part # RONRF6110
$79.96
$94.07Fit verified for J/70
Ronstan
Ronstan Tiller Extension Battlestick (Alloy) - Length: 3.4 ft (1030 mm)
Part # RONRF3130
$74.09
$87.17Fit verified for J/70
C. Sherman Johnson
C. Sherman Johnson Rigging Tape - White - 1" x 15'
Part # CSJ-50-115
$24.30
$25.25Fit verified for J/70
C. Sherman Johnson
C. Sherman Johnson Rigging Tape - Black - 1" x 15'
Part # CSJ-50-115B
$24.30
$25.25Fit verified for J/70
Harken
Harken Eye Strap (Pair) - Spacing: 1 17/64 in (32 mm)
Part # HAR073PAIR
$6.95
$7.70Fit verified for J/70
Lewmar
Lewmar Rode - 10'1/4"4G 150'1/2"3Str Swv/Skl
Part # LEWHM10HT150XS
$243.00
$366.95Fit verified for J/70
Premium Ropes
Anchor Line - 8 mm (5/16 in) Polyester 3-Strand, by Premium Ropes
Part # PRR-201-08-BLK
$0.49
$0.58Fit verified for J/70
Premium Ropes
Anchor Line - 10 mm (3/8 in) Polyester 3-Strand, by Premium Ropes
Part # PRR-201-10-BLK
$0.83
$0.98Fit verified for J/70
Powerwinch
Powerwinch 200' of 1/2" Rope 15'of 1/4" HT Chain Rode
Part # pow-p10294
$457.00
$479.22Fit verified for J/70
Lewmar
Lewmar Anchor Rode - 1/4 in Chain (15'), 1/2 in 3-Strand Polyster (200')
Part # LEW69000334
$363.00
$567.95Fit verified for J/70
Buccaneer
Buccaneer Twisted Nylon Anchor Lines - 1/2" X 150' long
Part # buc-cro-nal12150
$122.00
$123.70Fit verified for J/70
Powerwinch
Powerwinch 150' of 1/2" Rope 10' of 1/4" HT Chain Rode
Part # pow-p10293
$381.00
$403.92Fit verified for J/70
Lewmar
Lewmar Rode - 10'1/4"G4 150'1/2"8P Skl/Swv
Part # LEWHM10HT150PXS
$279.00
$422.95Fit verified for J/70
Lewmar
Lewmar Anchor Rode - 1/4 in Chain (10'), 1/2 in 8-Plait Nylon (200')
Part # LEWHM10HT200PX
$469.00
$735.95Fit verified for J/70
Lewmar
Lewmar Rode - 150' 1/2"8Plt Splcd 5/16" Skl
Part # LEWHM150PX
$329.00
$498.95Fit verified for J/70
Buccaneer
Buccaneer Twisted Nylon Anchor Lines - 1/2" X 200' long
Part # buc-cro-nal12200
$161.00
$169.04Fit verified for J/70
Lewmar
Lewmar Rode - 10' 1/4"G4 150"1/2"8Plt W/Shkl
Part # LEWHM10HT150PX
$382.00
$597.95Fit verified for J/70
Lewmar
Lewmar Rode - 8'1/4"G4 200'1/2"Rope W-5/16
Part # LEW69000333
$361.00
$545.95Fit verified for J/70
Lewmar
Lewmar Rode - 15'1/4"G4 200'1/2"8P Jj Swiv
Part # LEWHM15HT200PS
$372.00
$582.95Fit verified for J/70
Lewmar
Lewmar Rode - 10'1/4"G4-200'1/2"8Pltw/Shkl&S
Part # LEWHM10HT200PXS
$493.00
$769.95Fit verified for J/70
Buccaneer
Buccaneer Twisted Nylon Anchor Lines - 3/8" X 150' long
Part # buc-cro-nal38150
$70.70
Fit verified for J/70
Lewmar
Lewmar Rode - 15' 1/4"G4 200' 1/2" 8P W/5/16
Part # LEWHM15HT200PX
$495.00
$773.95Fit verified for J/70
Lewmar
Lewmar Rode - 6' 1/4" G4 150' 1/2" 8 Plt Rop
Part # LEWHM06HT150P
$358.00
$561.95Fit verified for J/70
Lewmar
Lewmar Anchor Rode - 1/4 in Chain (10'), 1/2 in 3-Strand Polyster (150')
Part # LEW69000332
$289.00
$435.95Fit verified for J/70
Ritchie
Ritchie X-11Y SportAbout Handheld Compass - Yellow
Part # rit-x-11y
$59.99
Fit verified for J/70
Rooster
Rooster Tell Tales - Teflon Coated (3 Green & 3 Red)
Part # ROO127491
$8.96
$9.95Fit verified for J/70
Ronstan
Ronstan Tell Tales - Tell Tails Kit (3 Pairs)
Part # RONRF4025
$9.91
$11.66Fit verified for J/70
Ronstan
Ronstan Tell Tales - Leech Tails Kit (3 Pairs)
Part # RONRF4026
$9.91
$11.66Fit verified for J/70
Harken

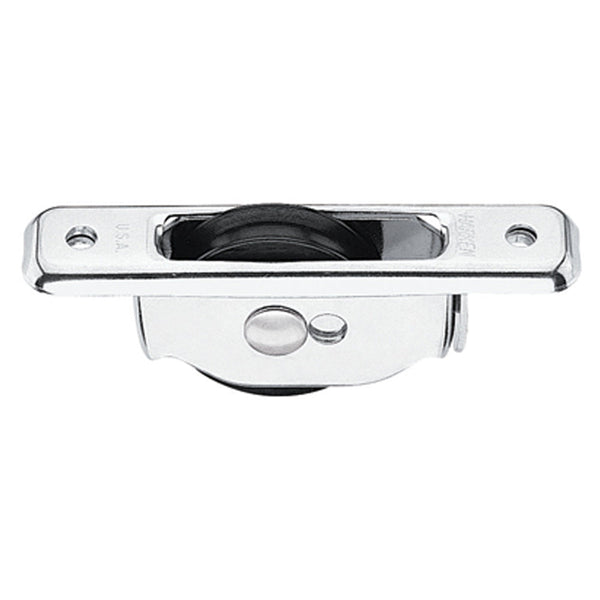

Harken Block - Wire High Strength 51mm - Wire - Through-Deck
Part # HAR310
$126.95
$144.35Fit verified for J/70
Harken

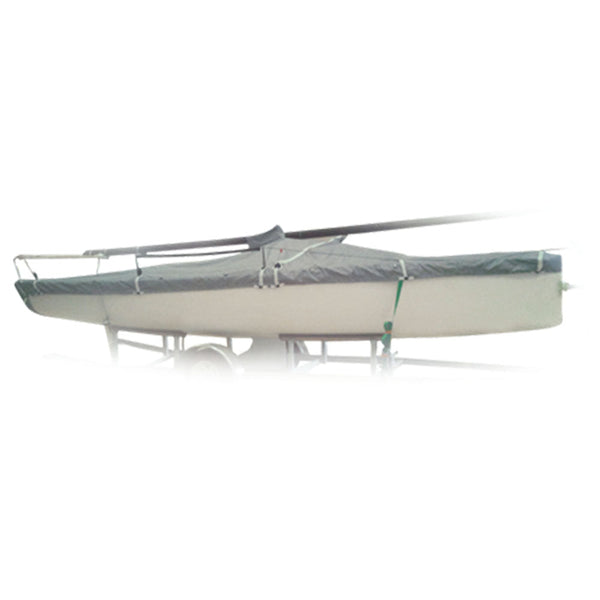

Harken Canvas J/70 Mooring Cover (Over-The-Cockpit)
Part # HAC8701
$1,003.60
Fit verified for J/70
Harken

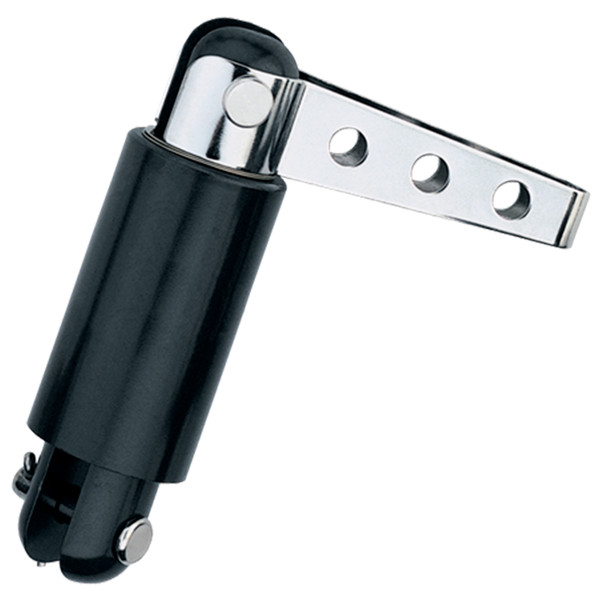

Harken Furlers - High-Load Furling Swivel - Luff Wire Dia: 3/16 in (5.0 mm)
Part # HAR207
$273.95
$342.30Fit verified for J/70
Harken

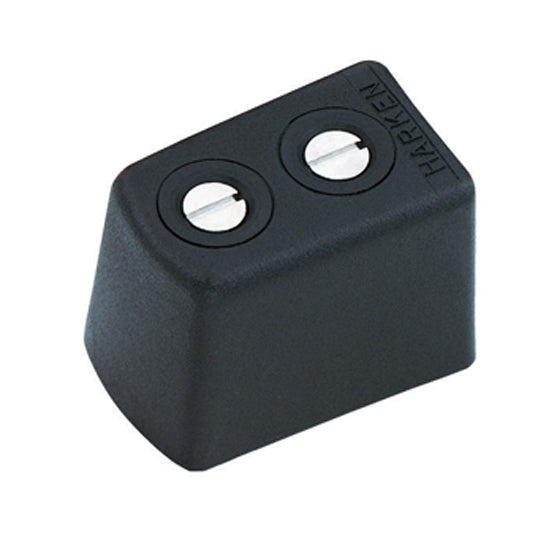

Harken Endstops Heavy-Duty - High-Beam - For Tracks: 7/8 in (22.0 mm) - Set of 2
Part # HAR264
$51.95
$58.70Fit verified for J/70
Harken

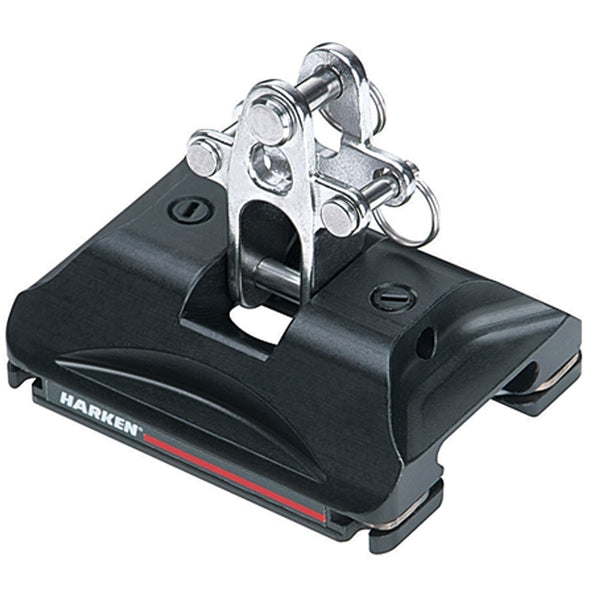

Harken Traveler Car 7/8 in (22.0 mm) - Stand-Up Toggle
Part # HAR2731
$224.95
$255.40Fit verified for J/70
Harken

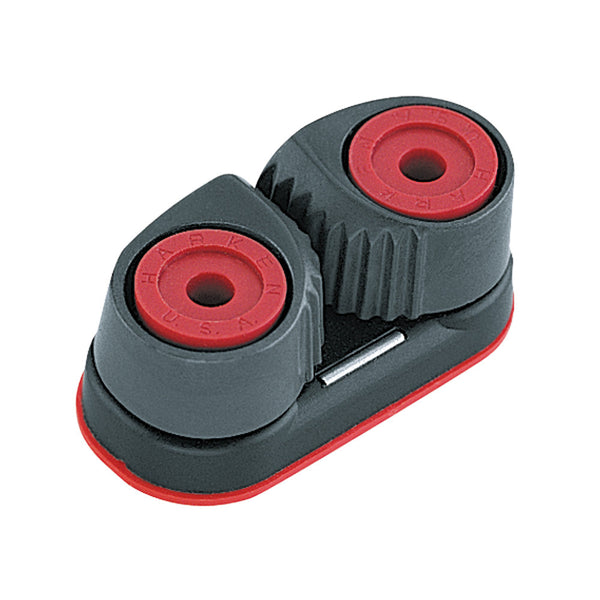

Harken Cam Cleat - Cam-Matic (Micro) 468 - Line: 5/64 to 1/4 in (2 to 6 mm)
Part # HAR468
$36.95
$41.50Fit verified for J/70
Harken
Harken Cam Cleat - Cam-Matic 150 - Line: 1/8 to 1/2 in (3 to 12 mm)
Part # HAR150
$44.95
$50.80Fit verified for J/70
Harken

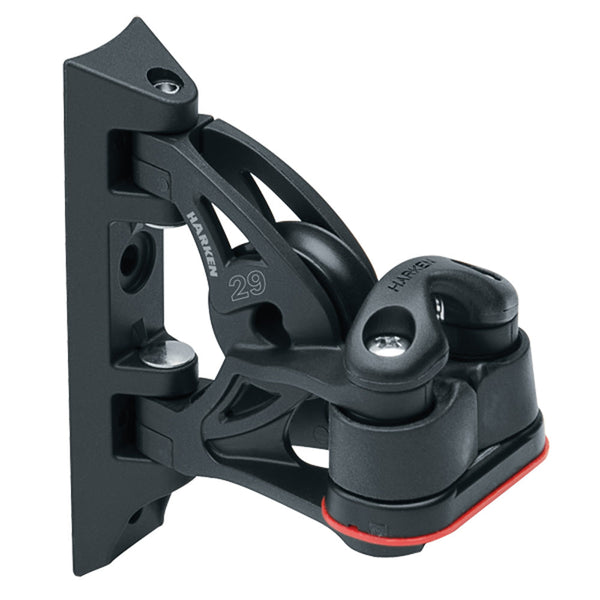

Harken Block - Carbo 29mm Single - Pivoting / 471 Carbo-Cam
Part # HAR396
$72.95
$82.95Fit verified for J/70
Harken
Harken Block - Carbo 40mm Single - Pivoting / 150 Cam-Matic
Part # HAR2156
$89.95
$102.20Fit verified for J/70
Harken
Harken Swivel Cam Cleat - Base (Standard) w/ Cam-Matic 150 - Line: 1/8 to 1/2 in (3 to 12 mm)
Part # HAR144
$180.95
$205.65Fit verified for J/70
Harken
Harken Block - 57mm Ratchet Block - Swivel (Black)
Part # HAR2135
$86.95
$98.25
No J/70 parts match these filters.
Can’t find a part for your J/70? Request a J/70 part
Official Harken dealer
J/70 deck layout
- LOA
- 22.75 ft; 6.93 m
- LWL
- 20.47 ft; 6.24 m
- Beam
- 7.38 ft; 2.25 m
- Standard Draft
- 4.75 ft; 1.45 m
- Standard Ballast
- 630 lb; 286 kg
- Displacement
- 1,750 lb; 794 kg
- Engine
- outboard
- 100% SA
- 226 ft2; 21.02 m2
- I
- 26.77 ft; 8.159 m
- ISP
- 30.15 ft; 9.19 m
- J
- 7.68 ft; 2.34 m
- P
- 26.16 ft; 7.97 m
- E
- 9.44 ft; 2.88 m
- SA/Dspl
- 25
- Dspl/L
- 91
Underdeck Furler
-
1

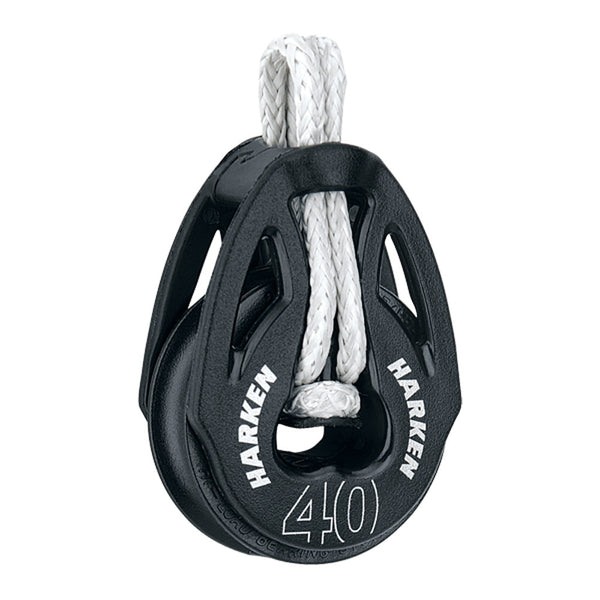

40mm T2™ Soft-Attach BlockHarken 2149
$44.95 -
2
29mm T2 Soft-Attach BlockHarken 2146
$29.95 -
3
40mm T2™ Soft-Attach BlockHarken 2149
$44.95 -
5
29mm Pivoting Lead Block — Carbo-Cam® cleatHarken 396
$72.95 -
6

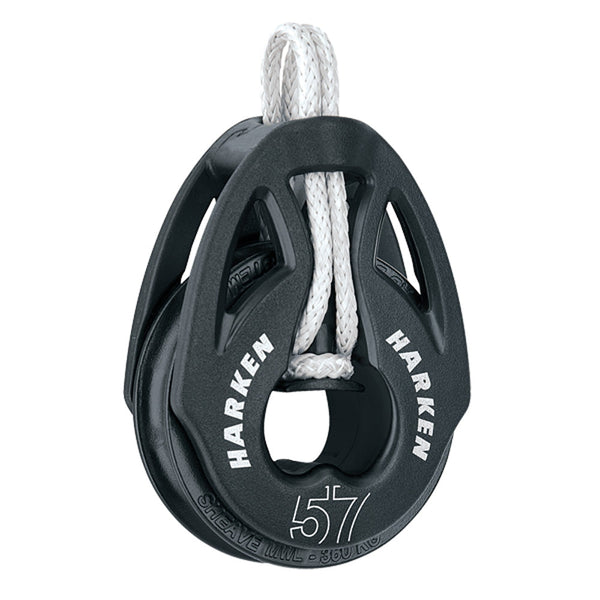

57mm T2™ Loop Soft-Attach BlockHarken 2151
$60.95 -
7
40mm T2™ Soft-Attach BlockHarken 2149
$44.95 -
9
29mm T2 Soft-Attach BlockHarken 2146
$29.95 -
10
57mm T2™ Loop Soft-Attach BlockHarken 2151
$60.95 -
11
29mm BlockHarken 348
$17.95 -
12
29mm BlockHarken 348
$17.95 -
13
57mm Ratchet Block — SwivelHarken 2135
$86.95 -
15
57mm Ratchet Block — SwivelHarken 2135
$86.95 -
16
Standard Cam Base — SwivelHarken 144
$180.95 -
17
57mm T2™ Loop Soft-Attach BlockHarken 2151
$60.95 -
18
57mm Ratchet Block — SwivelHarken 2135
$86.95 -
19
Micro Cam-Matic® CleatHarken 468
$36.95 -
20
Micro Cam-Matic® CleatHarken 468
$36.95 -
21
57mm Ratchet Block — SwivelHarken 2135
$86.95 -
22
Standard Cam-Matic® Cleat - 150Harken 150
$44.95 -
23
57mm Ratchet Block — SwivelHarken 2135
$86.95 -
24
57mm Fiddle Block — SwivelHarken 2621
$66.95
Systems and part numbers as published by Harken (checked 2026-11-04). Specifications are Harken’s; class rules decide what is legal for racing.
Go fast
J/70 tuning guide
J/70 tuning comes down to headstay length (rake), shroud tension stepped up or down with the wind, and jib lead and in-hauler. Most guides use the Loos PT-2 with the backstay off, but OneSails and Fritz give Loos PT-2M (metric) readings and OneSails adds Spinlock RGS values, which are not interchangeable with PT-2 numbers. Base tensions and the rake reference point differ between sailmakers, and Selden and Southern Spars masts have separate charts, so use the chart that matches your sails and your mast.
North Sails — J70 Tuning Guide (with rig tension and jib trim quick tuning charts) Current web guide (page first published 2017, last modified March 2026 per page metadata; quick-chart images uploaded May 2023, charts carry no date)
- Written for
- North J/70 sails (no main or jib model named except the J-2+ jib in the in-haul notes). North's May 2021 J/70 tool-kit article says this guide was revised for the XCS-4 main and J-2+ jib.
- Tension gauge
- Loos PT-2, backstay detached at the transom
- How it’s measured
- Rake: with the mast up and the rig at base, hold the mast on the spinnaker halyard, disconnect the headstay, pull it taut down the front of the mast and mark it level with the top of the white band near the gooseneck; reconnect and measure from the mark to the centre of the upper pin joining headstay to furler (not the furler pin), toggles included. Prebend: main halyard pulled tight to the bottom of the mast track, gap from the back of the track to the front of the halyard just above the spreaders, measured with uppers 19 / lowers 9.
- Source
- North Sails, Current web guide (page first published 2017, last modified March 2026 per page metadata; quick-chart images uploaded May 2023, charts carry no date)
Base setup
- Spreader marks
- Tape stripes at 18", 20" and 22" from the mast along the aft edge of each spreader (edge nearest the mast)
- Headstay (rake)
- Step 1 of the text: 56.5" (1435.1 mm) as an all-purpose setting. The jib section calls 56" the recommended base rake, and both quick charts say Rake = 56″ (1425 mm). Fast teams vary it by up to 1" (25.4 mm): shorter for breeze, longer for light air.
- Mast centring
- Pencil marks 96" (2440 mm) aft of the stem fitting on each rail; lowers loose, hoist a tape on the jib halyard and adjust the uppers until both sides read the same (if you must choose, straight beats centred)
- Base tension
- Uppers 19 / lowers 9 (Loos PT-2), backstay detached at the transom
- Prebend at base
- 2–2.5" (printed as 56–63.5 mm). With uppers at 19, many fast boats need 6–10 on the lowers (PT-2) to get this.
- Calipers
- Record the stud-to-stud gap on shrouds and headstay at base
- Jib lead base
- Text: hole 6 (6 holes showing between the front of the car and the forward-most factory screw hole) at 56" rake. Jib chart: hole 7 = BASE (also at 56" rake, original US-built tracks).
Rig tension quick tuning chart (PT-2; rake 56″ / 1425 mm)
| Wind (kn) | Uppers (turns from base) | Lowers (turns from base) | Tensions uppers / lowers (PT-2) | Traveller | Backstay |
|---|---|---|---|---|---|
| >6 (as printed) | −2 | >−2 (as printed) | 15 / Loose | 100% up | 0% |
| 6–8 | −1 | −1 | 17 / Loose | 100% up | 0–20% |
| 8–10 (base) | Base | Base | 19 / 9, prebend = 2″ | 50%–100% up | 0–40% |
| 10–12 | 2 | 2 | 21 / 13 | 40%–75% up | 30–50% |
| 12–13 | 3 | 3 | 23 / 16 | 20%–40% up | 40–60% |
| 13–14 | 4 | 4 | 24 / 21 | 10%–30% up | 50–70% |
| 14–15 | 5 | 5 | 26 / 23 | 1 car length up | 60–80% |
| 15–16 | 6 | 6 | 27 / 27 | 1 car length up | 80–100% |
| 16–18 | 7 | 7 | 28 / 28 | 1 car length up | 100% |
| 18–20 | 8 | 8 | 29 / 30 | 1 car length up | 100% |
| 20+ | 9 | 8.5 | 30 / 32 | Centred – 1 car length down | 100% |
Jib trim quick tuning chart (based on rake 56″ / 1425 mm and original US jib tracks)
| Wind (kn) | Lead car position | Clew position (in-haul) | Halyard (luff wrinkles) |
|---|---|---|---|
| >6 (as printed) | Hole 4–5 | No in-haul | Wrinkles to first seam |
| 6–8 | Hole 6 | 1″ outside cabin house | Wrinkles halfway to first seam |
| 8–10 (base) | Hole 7 – BASE | Directly over corner of cabin house | Hint of wrinkles |
| 10–11 | Hole 7 | 1″ inside cabin house | Hint of wrinkles |
| 12–13 | Hole 7.5 | 2″ inside cabin house | Smooth luff |
| 13–16 | Hole 7.5 | 1″ inside cabin house | Smooth luff |
| 16–19 | Hole 7 | Directly over corner of cabin house | Smooth luff |
| 19+ | Hole 6.5 | 1″ outside cabin house | Smooth luff |
Trim by condition
- Prebend fix
- Too much prebend: slightly tighter lowers relative to uppers. Too little: ease about half a turn off the lowers (or tighten the uppers). Changing rake also changes the lower tension needed.
- Main halyard / tack strap / battens
- Head at the bottom edge of the top white band; tack strap tight enough to hold the tack forward under outhaul load (unclip before dropping the main); battens just tight enough to remove pocket wrinkles and still pop easily.
- Mainsheet
- At max trim the top leech telltales stall 50–70% of the time; flowing 100% in light air or when building speed.
- Traveller
- Boom near centreline until overpowered; slightly above for pointing (risk of stalling). Fully to windward in very light air with no backstay; car centred when overpowered with lots of backstay.
- Vang
- When you have to ease sheet to stay flat, enough vang that the boom goes out, not up; do not overtighten (it costs headstay tension). Ease before bearing away.
- Outhaul
- Looser for power, tighter as power builds; bottom batten should hook slightly to windward of the boom. Biggest foot-to-boom gap usually 4–7".
- Backstay
- Use it to hold the heel angle you want; reset the gross-tune as wind and rig settings change; pull the gross-tune as hard as possible when maximum overpowered.
- Jib sheet
- Leech lined up with the spreader stripes with the upper leech telltale flowing; trim until it just stalls, then ease a hair. 10+ kn flat water: leech can reach the inside 18" mark; light and lumpy: nearer the 22" mark. To add twist, move the car aft and use less sheet.
- J-2+ in-haul
- Needs a little less in-haul than other jibs (fuller sail) but still use it most of the time: clew usually just above the cabin-house corner, 1–2" inside it in flatter water.
- Jib halyard
- Light air: slight horizontal wrinkles in the first panel (about 4–8" back from the luff); too loose if they pass the first seam, too tight if there are none. Breeze: tension just until the wrinkles go.
- Downwind modes
- Displacement under about 10 kn (flat or a couple of degrees to windward, weight forward, ease the kite to rotate it to windward); lazy planing about 10–15 kn (10–15° heel, weight to weather and back); full planing over about 15 kn (weight to weather and aft, ease the vang if it wants to broach); wing-on-wing about 8–14 kn.
- The guide contradicts itself on rake: 56.5" (1435.1 mm) in the headstay step, but 56" in the jib-lead section and 56″ (1425 mm) on both charts. Base jib lead is hole 6 in the text but hole 7 on the jib chart.
- The first row of both charts is printed as ">6" (and ">-2" for lower turns); it is presumably meant as under 6 kn. The jib chart jumps from 10–11 to 12–13 kn (no 11–12 row), as printed.
- The prebend metric figures are as printed (56–63.5 mm); 2" is about 51 mm, so the lower metric figure looks like a typo.
- The charts themselves do not name a gauge; the page names the Loos PT-2 as the tension gauge. Turn counts are estimates that differ from boat to boat, and rake changes the prebend and turn matrix.
- The two quick charts are images on the page; numbers transcribed from them.
Doyle Sails — 2024 J70 Tuning & Trim Guide, with the 2024 J/70 Tuning Imperial Matrix for the Selden Mast and for the Southern Spars Mast 2024 (guide and both matrices; PDFs uploaded to doylesails.com November 2023)
- Written for
- Doyle One Design J/70 sails (the guide does not name sail models); written by Jud Smith and Tomas Hornos
- Tension gauge
- Loos PT-2; backstay slack (matrices: detached) while reading shroud tension
- How it’s measured
- Rake = forestay length from a reference mark at the top of the lower band (put on the headstay before it goes onto the furler) to the lowest pin on the furler. Prebend is read at the spreaders with a Doyle prebend gauge hoisted there. Matrices: https://www.doylesails.com/wp-content/uploads/2023/11/J70-Selden-Tuning-Matrix-2024.pdf and https://www.doylesails.com/wp-content/uploads/2023/11/J70-Southern-Tuning-Matrix-2024-Imperial.pdf
- Source
- Doyle Sails, 2024 (guide and both matrices; PDFs uploaded to doylesails.com November 2023)
Base setup
- Spreader marks
- One mark at the middle of each spreader’s trailing edge and a second one 2" further inboard, aligned with the boat’s centreline if possible; Doyle paints them on the underside instead of using tape
- Headstay
- Guide text: 58.25" (148 cm), reference mark to lower furler pin, for a Selden mast on a US-built boat. Both 2024 matrices: 58.5", top of lower band to lowest furler pin, usually needing a toggle. To get the length, fit a longer T-swage, a longer turnbuckle stud or a 5/16" toggle under the turnbuckle; class rules let you shorten each threaded turnbuckle stud by up to 1 cm.
- Uppers to base
- Starting with both shroud turnbuckles opened until the thread just disappears inside the barrel, wind about 20 full turns onto each upper; the PT-2 should then show 18 or 19 (Selden matrix 18 or 19; Southern matrix 17–19). Centre the mast with a bucket of water hung on the main halyard, keeping the lowers just slack.
- Lowers at base
- Take up the lowers evenly, sighting the mast straight, until the PT-2 reads about 9 (both matrices: 9 or 10). The guide calls this the 10–11 kn base; the matrices put the base row at 9–10 kn.
- Prebend at base
- 3–4 cm at the spreaders with uppers 18/19 and lowers 9, trimmed by adjusting both uppers equally (same target printed on both matrices). If the main overbends in the middle, drop it from 4 to 3 cm.
2024 Imperial Matrix, Selden mast (Loos PT-2; turns per step and cumulative turns from base)
| Wind (kn) | Lower / upper tension | Upper turns each setting | Lower turns each setting | Turns from base (U | L) | Backstay | Outhaul (from band) | Traveller (above centre) | Jib lead (from back) | In-haul (weather sheet) |
|---|---|---|---|---|---|---|---|---|---|
| 1–4 | Slack / 12 | −1 | −1 | 3− | 3− | Slack | −2" | Max raised 15" (close hauled) | 8–11 holes | Use none |
| 5–6 | — | −1 | −1 | 2− | 2− | Slack | −2" | Max raised 15" | Hole 7 | Max in-haul: weather sheet to edge of cabin house, 10" of windward sheet |
| 7–8 | — | −1 | −1 | 1− | 1− | 1/4 on | −1.5" | Max raised 15" | Hole 6 | As above |
| 9–10 | 9 or 10 / 18 or 19 | Base | Base | — | 1/4 on | −1.5" | Raise 6"–12" | Hole 5 or 6 (4 or 5 holes showing) | As above |
| 11–12 | — | +2 | +1 | 2+ | 1+ | 1/2 on | −1" | Up 3"–6" | Hole 5 or 6 | As above |
| 12–13 | — | +1 | +1 | 3+ | +2 | 3/4 on | −.75" from band, max outhaul | Up 3"–6" | Hole 5 or 6 | 7"–10" in-haul |
| 13–14 | — | +1 | +1 | +4 | +3 | 3/4 on | −.75" | Up 3"–6" | Hole 5 or 6 | 5"–8" in-haul |
| 15–16 | — | +1 | +1 | +5 | +4 | 7/8 on | −.75" | Up 3"–6" | Hole 5 or 6 | 3"–6" in-haul |
| 16–17 | — | +1 | +1 | +6 | +5 | MAX | −.75" | Up 3"–6" | Hole 5 (4 showing) | 1–4" in-haul |
| 18–19 | 29 / 29 | +1 | +1 | +7 | +6 | MAX | −.75" | Up 3"–6" | Hole 5 (4 showing) | 0–2" in-haul |
| 20–25 | — | +1 | +1 | +8 | +7 | (blank in matrix) | −.75" | Up 3"–6" | Hole 5 (4 showing) | 0–2" in-haul |
2024 Imperial Matrix, Southern Spars mast (Loos PT-2; turns per step and cumulative turns from base)
| Wind (kn) | Lower / upper tension | Upper turns each setting | Lower turns each setting | Turns from base (U | L) | Backstay | Outhaul (from band) | Traveller (above centre) | Jib lead (from back) | In-haul (weather sheet) |
|---|---|---|---|---|---|---|---|---|---|
| 1–4 | Slack / 12 | −1 | −1 | 3− | 3− | Slack | −2" | Max raised 15" (close hauled) | 8–10 holes | Use none |
| 5–6 | — | −1 | −1 | 2− | 2− | Slack | −2" | Max raised 15" | Hole 7 | Max in-haul: weather sheet to edge of cabin house, 10" of windward sheet |
| 7–8 | — | −1 | −1 | 1− | 1− | 1/4 on | −1.5" | Max raised 15" | Hole 6 | As above |
| 9–10 | 9 or 10 / 17–19 | Base | Base | — | 1/4 on | −1.5" | Raise 6"–12" | Hole 5 or 6 (4 or 5 holes showing) | As above |
| 11–12 | — | +2 | +2 | +2 | +2 | 1/2 on | −.1" (as printed) | Up 3"–6" | Hole 5 or 6 | As above |
| 12–13 | — | +1 | +1 | +3 | +3 | 3/4 on | −.75" from band, max outhaul | Up 3"–6" | Hole 5 or 6 | 7"–10" in-haul |
| 13–14 | — | +1 | +1 | +4 | +4 | 3/4 on | −.75" | Up 3"–6" | Hole 5 or 6 | 5"–8" in-haul |
| 15–16 | — | +1 | +1 | +5 | +5 | 7/8 on | −.75" | Up 3"–6" | Hole 5 or 6 | 3"–6" in-haul |
| 16–17 | — | +1 | +1 | +6 | +6 | MAX | −.75" | Up 3"–6" | Hole 5 (4 showing) | 1–4" in-haul |
| 18–19 | 32 / 29 | +1 | +1 | +7 | +7 | MAX | −.75" | Up 3"–6" | Hole 5 (4 showing) | 0–2" in-haul |
| 20–25 | — | +1 | +1 | +8 | +8 | MAX | −.75" | Up 3"–6" | Hole 5 (4 showing) | 0–2" in-haul |
Trim by condition
- Rig setting
- Pick the rig setting for the lightest breeze you expect in the race, because class rules freeze the standing rigging (including the backstay bridle adjuster) from the preparatory signal to the finish, and the headstay can’t be changed after leaving the dock. The first step above base is +2 turns on the uppers and +1 on the lowers. Upwind, the leeward lower should be just firm above base; a trimmer struggling to depower with backstay and sheet means the rig is too soft, while a backstay that is nearly always slack means it is one or two steps too tight.
- Backstay
- After setting the shrouds, adjust the bridle so it is just slack when uncleated, and take slack out of it as the breeze and rig setting go up (let it out again when it gets lighter). Backstay is at its limit once a crease starts running from mid-mast toward the clew.
- Jib leads (guide text)
- Page 4: hole 7 at 5–6 kn, hole 6 at 7–8 kn, hole 6 or 5 at 10–16 kn, hole 5 above 16 kn, and hole 8 or 9 below 5 kn when the in-hauler is not used. Page 8: hole 7 at 5–8 kn, hole 6 at 9–10 kn, hole 9 or 10 below 5 kn. Hole numbers are counted from the back of the track.
- Tack strop
- Basically loose upwind in light air; from about 10 kn tension it progressively to allow for the extra mast bend when vang sheeting.
- Outhaul
- Upwind, 1.5" (4 cm) off the boom band, coming in to .75" (2 cm) as it freshens; let it out to 2" (5 cm) off the band below 8 kn.
- Traveller
- Up to 8 kn the car goes fully to windward with the boom on or slightly above centreline; drop it to 6"–12" (15–30 cm) above centreline as the wind reaches 10–13 kn, and keep it no higher than 6" (15 cm) above in 14 kn or more. Over 12 kn, 3"–6" (7.5–15 cm) above centreline allows more sheet load.
- Mainsheet and vang
- Sheet until the top-batten telltale stalls while the rest keep flying; hard sheeting works in 8–12 kn. Vang just eased upwind below 10 kn and just firm above 10 kn, taking care not to over-vang in shifty 11–13 kn conditions.
- Jib luff
- Allow some luff wrinkles in light air and still at 8–10 kn; pull them out with halyard from 12 kn. Furl while running on starboard tack with the sheets eased, never while sailing upwind.
- Downwind
- Displacement mode: crew forward and boat nearly flat. Wing on wing works best in 10–14 kn. Lazy planing (jib out, outhaul eased) is only worth it if the boat holds roughly 10 kn of speed; the guide prints its wind range as "24 to 15 knots". Full planing from 16 kn: crew well aft, jib kept out, main played from the end of the boom with light vang and the traveller down. The guide targets 5–10° of heel when planing.
- Rake conflict: the guide text gives 58.25" (148 cm) but both 2024 matrices print 58.5".
- Base wind range conflict: the guide text calls the base the 10–11 kn setting; the matrices place the base row at 9–10 kn.
- The two jib-lead paragraphs in the guide (pages 4 and 8) disagree with each other and with the matrices.
- Southern matrix prints lowers 32 / uppers 29 at 18–19 kn (lowers higher than uppers) and an 11–12 kn outhaul of "-.1"" (probably meant −1"); both transcribed as printed.
- Selden matrix uses mixed notation in the turns-from-base column ("3+ | +2") and leaves the 20–25 kn backstay cell blank.
- Both matrices note that every batten end has a rocket tensioner and a batten could fall out in a breeze if left untensioned.
Quantum Sails — J/70 Tuning and How-To Guide (eBook), with the J/70 Quick Tune Chart, J/70 On the Water Tuning and J/70 Performance Targets © 2020 on the guide’s last page (PDF file name says 2023, created May 2023); Quick Tune Chart undated; On the Water Tuning and Performance Targets file names say June 2020
- Written for
- Quantum J/70 sails (main, jib, spinnaker; the guide does not name sail models)
- Tension gauge
- Loos PT-2
- How it’s measured
- Rake: with the mast down, mark the headstay level with the top of the white band near the gooseneck; with the mast up, measure from that mark to the centre of the bottom furler pin (the one just under the headstay turnbuckle). Prebend: pull the main halyard tight to the gooseneck and measure, at spreader height, from the back of the mast track to the halyard. Separate charts: https://www.quantumsails.com/en/sails/one-design/documents/j70/j70_quicktunechart.aspx, https://www.quantumsails.com/en/sails/one-design/documents/j70/j70_onthewatertuning_june2020.aspx and https://www.quantumsails.com/en/sails/one-design/documents/j70/j70_perftargets_june2020.aspx
- Source
- Quantum Sails, © 2020 on the guide’s last page (PDF file name says 2023, created May 2023); Quick Tune Chart undated; On the Water Tuning and Performance Targets file names say June 2020
Base setup
- Headstay (rake)
- 58" to start, adding a toggle if the turnbuckle is too short; the chart says the 58" base figure is not changed with the wind.
- Mast centring
- Uppers at 22 on the PT-2, then hoist a tape measure on the jib halyard and compare to marks made 8 ft aft of the bow where deck meets sheer on each side, adjusting the uppers until both sides match.
- Base tension
- Uppers 22 / lowers 14 (PT-2); this is the 10–12 kn setting.
- Headstay tension at base
- 15 on the PT-2
- Spreader sweep
- 2" or 51 mm
- Prebend at base
- Selden mast 1 3/4"; Southern mast 2 1/4"
- Spreader marks
- Coloured tape at 18", 20" and 22" (chart: measured from the side wall of the mast; guide text: from the centre of the mast track)
- Calipers
- Measure and record the turnbuckle gaps at base (and at each step) for repeatability; the chart has blank boxes for them.
Quick Tune Chart (Loos PT-2; all turns counted from the 10–12 kn base)
| TWS (kn) | Uppers turns from base | Lowers turns from base | Uppers PT-2 | Lowers PT-2 | Jib lead (holes showing in front) | Weather jib sheet on | Traveller (upwind) | Vang (upwind) | Backstay (upwind) | Jib furl (downwind) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0–4 | −7 | −4 | 9 | 3" of slop | 8 | Play | Max | 0 | 25% | In |
| 5–6 | −5 | −3 | 15 | 6 | 8 | Play | Max | 0 | 25% | In |
| 6–8 | −3 | −2 | 18 | 8 | 8 | Cabin top | Max | Slack out | 25% | In |
| 8–10 | −2 | −1 | 20 | 12 | 9 | Cabin top | Up 8" | Just firm | 25% | In |
| 10–12 (base) | Base | Base | 22 | 14 | 9 | Cabin top | Up 6" | 25% | 25% | In |
| 12–14 | +2 | +1 | 24 | 16 | 10 | — | Up 6" | 50% | 50% | In |
| 14–18 | +3 | +2 | 26 | 20 | 11 | — | Up 4" | 75% | 75% | In/Out |
| 18–20 | +5 | +3 | 28 | 24 | 11 | — | Center | 80% | 80% | Out |
| 20–23 | +7 | +4 | 29 | 26 | 11 | — | Center | 100% | 90% | Out |
| 24–26 | +7 | +5 | 29 | 28 | 11 | — | Center | 100% | 100% | Out |
| 26+ | +8 | +6 | 30 | 29 | 11 | — | Center | 100% | 100% | Out |
Performance Targets (file dated June 2020)
| TWS (kn) | Upwind boat speed | Upwind heel ° | Upwind TWA ° | Tack ° | Downwind boat speed | Downwind heel ° | Downwind TWA ° | Gybe ° |
|---|---|---|---|---|---|---|---|---|
| 4 | 4.0 | 6 | 45 | 90 | 4 | 3 | 135 | 90 |
| 6 | 5.0 | 6 | 45 | 90 | 4.5 | 3 | 135 | 80 |
| 8 | 5.5 | 8 | 41 | 85 | 5 | 3 | 150 | 80 |
| 10 | 5.6 | 8 | 41 | 85 | 5.5 | 0 | 150 | 80 |
| 12 | 5.7 | 8 | 39 | 80 | 6 | 0 | 165 | 70 |
| 14 | 5.8 | 10 | 38 | 75 | 10 | 0 | 165 | 70 |
| 16 | 5.9 | 12 | 37 | 75 | 15 | 0 | 145 | 75 |
| 18 | 6.0 | 12 | 38 | 75 | 11 | 6 | 145 | 72 |
| 20 | 6.1 | 14 | 38 | 75 | 12 | 6 | 150 | 70 |
| 25 | 6.1 | 16 | 39 | 80 | 14 | 6 | 150 | 70 |
Trim by condition
- Main, 0–7 kn
- For speed: car to windward so the boom sits on or a little above centreline, top batten parallel to the boom, outhaul 2" off the band, top leech telltale flying about 80% of the time. For height: boom about 3" to windward and the top batten hooked up to as much as 6°, with the top telltale flying around half the time.
- Main, 8–14 kn
- Car near centreline, ease sheet in the bigger puffs, top batten falling slightly to leeward, outhaul 1" off the band; in pointing mode aim for the top telltale stalled 50–75% of the time. In 10–14 kn pull the outhaul to the band and depower with traveller (first a few inches down), backstay and sheet.
- Main, 15+ kn
- Sail at about 10° of heel with the car centred, vang and backstay on hard and outhaul at max. Overbend wrinkles are acceptable; let some backstay off before rounding the windward mark.
- Backstay
- Whenever backstay goes on, trim more mainsheet. If the backstay is fully on and the boat still heels too much, put more turns on the lowers.
- Jib lead
- Counting holes from the front of the track, start with 6–7 holes showing at base; go back one hole at a time as the wind builds in flat water or moderate chop and forward one hole at a time as it drops.
- Jib sheet and in-hauler
- Keep the leech between the spreader marks and the top two leech telltales flying almost all the time. In waves, sheet to the 18" mark and use the weather sheet for the rest; in flat water move the car aft, sheet to between 18" and 20" and in-haul the rest.
- Jib halyard
- Light air: small luff wrinkles extending only 4–6" back from the luff; medium: just remove them; strong wind: more tension to limit headstay sag.
- Downwind main
- Light: vang and backstay off, all leech telltales flowing. Medium: work the vang and use backstay to steady the boat. Heavy: vang at roughly half its upwind tension and the traveller all the way to leeward.
- Downwind jib
- 0–13 kn: furled once the spinnaker is up. 13–15 kn: unfurled and loose, rolled up for gybes. 15+ kn: unfurled the whole time.
- Modes
- Wing on wing in 8–14 kn pays if the boat keeps 5.5 kn or more; displacement mode in 5–15 kn with the jib furled; lazy planing once it is over 14 kn, at about 5–10° heel; full planing above 9 kn of boat speed, best in over 15 kn of wind, depowering in the order vang, main, spinnaker, jib.
- The guide’s last page reads © 2020 although its file is named J70_TuningGuide_2023; the same guide is also linked as j70_tuningguide.aspx with identical content.
- The Quick Tune Chart page in the guide and the standalone Quick Tune Chart PDF carry the same numbers; the On the Water Tuning sheet repeats only the turns-from-base columns, also identical.
- Jib leads disagree inside the guide: the text says 6–7 holes showing at base, but the chart shows 9 holes showing in the 10–12 kn base row (8 below 8 kn, up to 11 in breeze).
- Downwind targets list 15 kn boat speed at 16 kn TWS, against 10 kn at 14 kn and 11 kn at 18 kn; transcribed as printed.
Fritz Segel — J/70 Tuning Guide Undated; PDF sits in Fritz Segel’s November 2024 upload folder and was generated 11 Feb 2025 (internal file title “Tuning Guide 2023”)
- Written for
- No sail model named; written for Fritz Segel J/70 sails (the care section describes a Dacron main and jib)
- Tension gauge
- Loos PT-2M (5–7 mm wire; the guide spells it “Loose Gauge”), permanent backstay fully released
- How it’s measured
- With the mast lying groove-down on two trestles, pull the forestay straight along the front and mark it level with the top of the white band near the gooseneck. Rake = distance from the centre of the first bolt above the deck up to that mark. Prebend is read at spreader height between the aft side of the groove and the front of the main halyard.
- Source
- Fritz Segel, Undated; PDF sits in Fritz Segel’s November 2024 upload folder and was generated 11 Feb 2025 (internal file title “Tuning Guide 2023”)
Base setup
- Rig marks
- Shrouds and forestay marked with 10 kg pull on a hand scale
- Spreader marks
- 455, 510 and 560 mm
- Spreader height
- Marks 4210 mm from the top of the upper-shroud fittings, fixed at the spreader ends so both spreaders sit at the same height
- Rake
- 1470 mm (first bolt above deck to forestay mark)
- Base tension
- Uppers 19 / lowers 10 minus one turn (PT-2M), the 8–10 kn step
- Prebend
- 50 mm at spreader height
- Crew weight
- 345–350 kg recommended
Tuning chart (PT-2M)
| Step | Wind (kn) | Uppers | Lowers | Uppers steps | Uppers turns from base | Lowers steps | Lowers turns from base | Jib car (holes from aft) |
|---|---|---|---|---|---|---|---|---|
| −2 | <6 | 14 | loose | −1 | −2 | −1 | −2 | 5 |
| −1 | 6–8 | 16 | loose | −1 | −1 | −1 | −1 | 6 |
| 0 | 8–10 | 19 | 10 (−1 turn) | Base | Base | Base | Base | 7 |
| 1 | 10–14 | 21 | 10 | 2 | +2 | 1 | +1 | 7 |
| 2 | 14–18 | 25 | 18 | 2 | +4 | 1.5 | +2.5 | 7 |
| 3 | 18–22 | 26 | 23 | 1.5 | +5.5 | 1.5 | +4 | 6 |
| 4 | 22–25 | 28 | 26 | 1.5 | +7 | 1 | +5 | 6 |
| 5 | 25+ | 29 | 29 | 1 | +8 | 1 | +6 | 6 |
Trim by condition
- Backstay
- Under 8 kn backstay and fine-tune fully off (gusts only); 8–16 kn trim to keep the boat upright with the fine-tune 50% set; 16+ kn fine-tune fully down, play the backstay hard in gusts.
- Main
- Under 8 kn boom about 10 cm to windward of centreline, traveller in position 4. 8–16 kn traveller to position 3, boom on centreline, prefer a little vang over too much backstay; ease to position 2 in gusts. 16+ kn traveller position 1 (centre in gusts), play vang and backstay.
- Jib in-haul marks
- Weather-sheet marks set the clew-to-cabin distance: 1 = 20 mm, 2 = 50 mm, 3 = 80 mm.
- Jib by wind
- Under 8 kn: loose halyard with visible wrinkles, leech on the middle spreader mark, car back, in-haul 2. 8–16 kn: car forward, in-haul 1, leech on the inside mark, almost no wrinkles. 16+ kn: halyard a little tighter, leech on the outer mark, in-haul 2 in chop or 3 in flat water, release fully in strong gusts; never ease the leeward sheet.
- Downwind
- Cunningham fully off, outhaul eased 2 cm, mast straight. Jib furled in low mode; switch to high mode and unfurl once boat speed exceeds 12 kn; wing-on-wing an option at 11–12 kn boat speed; release vang in strong gusts.
- Fritz Segel is a German sailmaker (Prien am Chiemsee).
- Traveller positions 1–4 are used in the main-trim text and said to be in the tuning chart, but the chart has no traveller column and no drawing defines the positions.
- Decimal commas in the chart (1,5 / 2,5 / 5,5) are written here as 1.5 / 2.5 / 5.5.
- Its shroud numbers and turns are almost the same as North Sails’ 2019 Selden chart stored in this file, but the wind bands differ.
North Sails — J/70 Tuning Guide Rev. T03 with Selden and Southern Spars Quick Tuning Charts (Rev. T09) 2019, Rev. T03 (charts Rev. T09; PDF created September 2019)
- Written for
- XCS-2, XCS-1, F-1 and M-2 mains; J-6 and J-2 jibs (Selden chart for XCS-2 and F-1 mains, Southern chart for XCS-2)
- Tension gauge
- Loos PT-2
- How it’s measured
- Headstay: mark the headstay level with the top of the white band near the gooseneck, then measure to the centre of the pin at the bottom of the headstay (toggles included); later changes in 1/4" steps. Prebend from the back of the track to the front of the main halyard at the spreaders. Jib lead: open holes counted in front of the car, behind the first deck-mounting screw.
- Source
- North Sails, 2019, Rev. T03 (charts Rev. T09; PDF created September 2019)
Base setup
- Headstay
- Initial 54 1/2" (text). Selden chart: rake 1400 mm. Southern chart: rake 4′ 7″.
- Mast centring
- Pencil marks 8′ (96") aft of the stem fitting at the sheer; equalise with a tape on the jib halyard by adjusting the uppers
- Base tension (text)
- Uppers 16 / lowers 10 minus one full turn (PT-2)
- Prebend
- 1–2.5" overall: XCS-2 1.25–2.25", XCS-1 1–2", M-2 closer to 2.5"
- Spreader marks
- 18", 20", 22" along the aft edge
Selden mast quick tuning chart (PT-2; rake 1400 mm)
| Step | Wind (kn) | Uppers | Lowers | Uppers steps | Uppers turns from base | Lowers steps | Lowers turns from base | Traveller | Jib lead (holes in front) | In-haul (out from cabin) |
|---|---|---|---|---|---|---|---|---|---|---|
| −2 | <6 | 14 | Loose | −1 | −2 | −1 | −2 | Top | 7.5 | 1"–3" |
| −1 | 6–8 | 16 | Loose | −1 | −1 | −1 | −1 | 12"–14" above | 7.5 | 1"–2" |
| 0 | 8–10 | 19 | 10 (−1 turn) | Base | Base | Base | Base | 10"–12" above | 8.5 | 1"–2" |
| 1 | 10–13 | 21 | 10 | 2 | +2 | 1 | +1 | 6"–8" | 8.5 | 1.5–3" |
| 2 | 13–16 | 25 | 18 | 2 | +4 | 1.5 | +2.5 | 4" above | 8.5 | 2"–3" |
| 3 | 16–19 | 26 | 23 | 1.5 | +5.5 | 1.5 | +4 | 2"–4" above | 8.5 | 2"–4" |
| 5 (as printed) | 19–22 | 28 | 26 | 1.5 | +7 | 1 | +5 | Centre | 9.5 | 3"–4" |
| 6 (as printed) | 22+ | 29 | 28 | 1 | +8 | 1 | +6 | Centre | 9.5 | None |
Southern Spars mast quick tuning chart (PT-2; rake 4′ 7″; XCS-2 main)
| Wind (kn) | Uppers | Lowers | Uppers steps | Uppers turns from base | Lowers steps | Lowers turns from base | Vang | Outhaul | Main traveller |
|---|---|---|---|---|---|---|---|---|---|
| <6 | 12 | Loose | −1 | −2 | −1 | −2 | 0 | Loose | 14"–max above centre |
| 6–8 | 14 | Loose | −1 | −1 | −1 | −1 | 0 | Firm | 12"–14" above centre |
| 8–10 | 16 | 10 (−2 turn) | Base | Base | Base | Base | 0 | 75% | 10"–12" above centre |
| 10–13 | 19 | 15 | 1.5 | +1.5 | 1.5 | +1.5 | Snug | 90% | 6"–8" above centre |
| 13–16 | 22 | 20 | 1.5 | +3 | 1.5 | +3 | Snug | 95% | 4" above centre |
| 16–19 | 25 | 23 | 1.5 | +4.5 | 1 | +4 | Snug+ | 95% | 2"–4" above centre |
| 19–22 | 26 | 26 | 1.5 | +6 | 1 | +5 | Snug+ | 100% | 2" above centre |
| 22+ | 28 | 29 | 1 | +7 | 1 | +6 | Snug+ | 100% | 2" above centre |
J-6 jib tuning
| Sea state | Jib lead (holes in front) | In-haul (from cabin) |
|---|---|---|
| Flat water | 7–8 | 1" inside cabin |
| Light–moderate chop | 6–7 | At cabin |
| Heavy chop | 5–6 | 2"–3" from cabin |
Trim by condition
- Mainsheet
- Top leech telltales stalling 25–30% at max trim; flowing 80–100% in light air or when building speed.
- Jib sheet
- Leech between the 18" and 22" spreader marks with the upper leech telltale flowing 90–100%; trim to a stall, then ease a hair.
- J-2 in-haul
- Usual setting 2" from the cabin house; 1" in flat water, 2.5–3.5" in moderate chop, possibly none in big waves. Car about 3–4 holes showing with no in-hauler, 5–6 holes with lots of in-haul (clew 1" from the house).
- J-6 in-haul
- Always some in-haul: very choppy, clew 2–3" from the house with 5–6 holes showing; light–moderate chop, clew at or just inside the house with 6–7 holes; very flat water, 7–8 holes.
- Spinnaker tack
- Normally pulled tight to the end of the sprit; before planing, when you can sail deeper, ease the tack line 4–6" to let the kite rotate to windward.
- Older North edition. The text gives a base of 16/10 minus one full turn, then says to check prebend "at 22-12" (left over from an earlier revision); the Selden chart base is 19 / 10 (-1 turn) and the Southern chart base is 16 / 10 (-2 turn).
- The three rake figures differ: 54 1/2" in the text, 1400 mm on the Selden chart and 4′ 7″ on the Southern chart.
- Selden chart: the step column jumps from 3 to 5, and the lowers at step 1 (10–13 kn) are printed as 10 although the chart says +1 turn from base; both transcribed as printed.
- Hosted by KSSS (Royal Swedish Yacht Club).
OneSails — J 70 Tuning guide (file title “J70 TG2.7”) V 2.7, © 2019
- Written for
- Not stated
- Tension gauge
- Loos & Co PT2-M or Spinlock RGS 0205 (base given for both); backstay completely off, boom laid to the centre of the cockpit
- How it’s measured
- Hoist the mast, pull the headstay down the front of the mast and mark it at the top of the white band near the gooseneck; then, with the stay on the furler, measure from the mark to the furler pin. Prebend: a tight string (main halyard) from the masthead to the bottom of the track, gap to the back of the track read at spreader height.
- Source
- OneSails, V 2.7, © 2019
Base setup
- Spreader marks
- 480 and 590 mm from the mast groove
- Headstay (rake)
- 1425 mm, mark to furler pin
- Base tension
- Selden: uppers 24 / lowers 16 (Loos PT2-M) or 260 / 135 kg (Spinlock RGS 0205). Southern Spars: uppers 21 / lowers 14 (PT2-M) or 225 / 135 kg (RGS 0205). Base row is 8/10 kn
- Prebend
- Rough check about 65/70 mm at 50% and 40/50 at the quarters (no unit printed for the quarters)
- Jib sheet marks
- First mark 1300 mm from the splice, second mark a further 1660 mm on (diagram on p. 5)
Shroud setting chart, Selden mast (turns from the neighbouring row; bracket = running total from base; base on Loos PT2-M or Spinlock RGS 0205)
| TWS (kn) | Uppers | Lowers | Vang | Traveller | Jib in-haul |
|---|---|---|---|---|---|
| 4/6 | −1 (base −4) | −1 (base −4) | 0% | 100% up | B |
| 6/8 | −3 (base −3) | −3 (base −3) | 0% | 100% up | C |
| 8/10 (Loos PT2-M) | 24 | 16 | 50% | 80% up | D |
| 8/10 (Spinlock RGS 0205) | 260 kg | 135 kg | 50% | 80% up | D |
| 10/12 | +2 (base +2) | +2 (base +2) | 75% | 25% up | D |
| 12/16 | +3 (base +5) | +3 (base +5) | 90% | 25% up | C |
| 16/20 | +1 (base +6) | +1 (base +6) | 100% | 25% up | B |
| 20+ | +1 (base +7) | +1 (base +7) | 100% | 25% up | A |
Shroud setting chart, Southern Spars mast (turns from the neighbouring row; bracket = running total from base; base on Loos PT2-M or Spinlock RGS 0205)
| TWS (kn) | Uppers | Lowers | Vang | Traveller | Jib in-haul |
|---|---|---|---|---|---|
| 4/6 | −1 (tot −2) | −1 (tot −3) | 0% | 100% up | B |
| 6/8 | −1 (tot −1) | −2 (tot −2) | 0% | 100% up | C |
| 8/10 (Loos PT2-M) | 21 | 14 | 50% | 80% up | D |
| 8/10 (Spinlock RGS 0205) | 225 kg | 135 kg | 50% | 80% up | D |
| 10/12 | +2 (tot +2) | +3 (tot +3) | 70% | 25% up | D |
| 12/16 | +1 (tot +3) | +2 (tot +5) | 90% | 25% up | C |
| 16/20 | +1 (tot +4) | +1 (tot +6) | 100% | 25% up | B |
| 20+ | +1 (tot +5) | +1 (tot +7) | 100% | 25% up | A |
Trim by condition
- Jib in-haul A–D
- Clew positions A to D are shown only in a photo; the charts go from D at base to A above 20 kn (B in 4/6 kn).
- Records
- Once base is set, measure the stud gaps on the shroud and headstay turnbuckles with calipers and log them so base can be found again on the water.
- Chart cells read e.g. “−3 (base −3)”: the first figure is the step from the adjacent row, the bracket the running total from base (labelled “base” on the Selden chart, “tot” on the Southern Spars chart). Both charts add up consistently.
- The Spinlock lowers figure is 135 kg on both masts, although the Loos lowers base differs (16 Selden, 14 Southern Spars).
- Vang column is headed “Wang” in the source; traveller is given as a percentage “up” without defining the reference.
- Step numbering jumps from 8 to 11 (no steps 9–10).
Ullman Sails — 2018 J/70 Tuning Guide and Tuning Chart (Radial Head Main / El Grande Jib) 2018 (PDF created May 2018; imperial and metric editions)
- Written for
- Ullman Radial Head main and El Grande jib (as named on the tuning chart)
- Tension gauge
- Loos PT-2 for all shroud numbers
- How it’s measured
- Pull the forestay to the mast and mark it where it meets the top of the white band; rake is the distance from the centre of the furler pin to that mark. Centre the mast by hanging a three-quarter-full bucket from the jib halyard, handle 4″ (100 mm) below the rail, and comparing a tape mark on the halyard side to side (or measure from the halyard to a chainplate pin). Outhaul = gap from mid-boom to the middle of the main foot; jib lead = holes visible in front of the car.
- Source
- Ullman Sails, 2018 (PDF created May 2018; imperial and metric editions)
Base setup
- Forestay
- 54.5″ (metric edition 1.384 m), furler-pin centre to mark
- Uppers at base
- 17 (PT-2), set while centring the mast
- Lowers at base
- Tension to 18 (PT-2) with the mast sighted straight, then ease 3 full turns; this should give about ¾″ (20 mm) of leeward sag at base
- Lowers check
- Horizontal distance between the lowers at the top edge of the lower mast band about 58.25″ (1.480 m)
- Prebend at base
- 1.5–2″ (40–50 mm)
- Spreader marks
- 20″, 23″ and 26″ from the edge of the mast (510, 585 and 660 mm)
- Record
- Measure turnbuckle stud gaps with a caliper at base
Tuning chart, imperial edition (shroud turns relative to base, Loos PT-2)
| Wind speed (unit not printed) | Forestay | Upper/lower turns from base (total) | Upper/lower turns (incremental) | Jib lead (holes in front of car) | Jib halyard | In-haul | Vang | Outhaul | Traveller |
|---|---|---|---|---|---|---|---|---|---|
| 1–6 | 54.5″ | −3/−2 | −1/−1 | 6 | Many scallops | 1–2″ | Off | 2–3″ | Max up |
| 6–9 | 54.5″ | −2/−1 | −2/−1 | 6 | Many scallops | 1–3″ | Off | 2–3″ | Max up |
| 9–12 (base) | 54.5″ | 0 (uppers 17) | 0 | 6.5 | Some scallops | 4–5″ | Loose | 2–3″ | Up 8″ |
| 12–14 | 54.5″ | +2/+1.5 | +2/+1.5 | 7 | Light scallops | 4–5″ | Snug | 1″ | Up 6″ |
| 14–16 | 54.5″ | +4/+3 | +2/+1.5 | 7.5 | Just firm | 4–5″ | Light pull | 1″ | Up 4″ |
| 16–19 | 54.5″ | +6/+6 | +2/+3 | 8 | Firm | 2–3″ | Firm | 0″ | Centre |
| 19–25 | 54.5″ | +7/+8 | +1/+2 | 7.5 | Tight | 2–3″ | Hard | 0″ | Centre |
Metric edition: values that differ from the imperial chart (shroud turns, jib lead, halyard and vang are identical)
| Wind speed (unit not printed) | Forestay | In-haul | Outhaul | Traveller |
|---|---|---|---|---|
| 1–6 | 1.384 m | 25–50 mm | 50–75 mm | Max up |
| 6–9 | 1.384 m | 25–75 mm | 50–75 mm | Max up |
| 9–12 (base) | 1.384 m | 100–125 mm | 50–75 mm | Up 200 mm |
| 12–14 | 1.384 m | 100–125 mm | 25 mm | Up 150 mm |
| 14–16 | 1.384 m | 100–125 mm | 25 mm | Up 100 mm |
| 16–19 | 1.384 m | 50–75 mm | 0 mm | Centre |
| 19–25 | 1.384 m | 50–75 mm | 0 mm | Centre |
Trim by condition
- Turn steps
- Each row lists both the running total from base and the step from the previous row so you can either count from base or step band to band.
- Forestay
- The chart keeps the forestay at 54.5″ in every band; only the shrouds and sail controls change.
- Metric edition: https://newportbeach.ullmansails.com/wp-content/uploads/2018/05/18-May-J70-Tuning-Guide-METRIC-web.pdf
- Ullman’s J/70 page links these files on oldarchive.ullmansails.com, which now returns 401; the identical upload paths load on Ullman’s newportbeach.ullmansails.com loft site (also mirrored on canadianboating.ca).
- A draft dated April–May 2018 (J70-Tuning-Guide-corrections-pics.pdf, same Ullman paths) mixes uppers 17 and 18 at base and still lists 2–3″ of prebend; it is superseded by this edition and not transcribed.
- The boat-preparation page puts the spinnaker-douse carabiner 2–3″ aft of the gooseneck in the imperial file but 600–900 mm in the metric file (the 2016 edition says 2–3 ft).
Doyle Sails — J70 Tuning Guide, with the 2020 J/70 Tuning Imperial Matrix 2020 matrix (PDF created January 2020; uploaded to doylesails.com June 2021)
- Written for
- Doyle One Design J/70 sails (the guide names no sail models; it mentions rocket batten tensioners on the five main battens); written by Jud Smith. Matrix stated to apply to both Southern and Selden masts.
- Tension gauge
- Loos PT-2; backstay detached while measuring shroud tension
- How it’s measured
- Rake = forestay length from the reference mark at the top of the lower band to the lowest pin on the furler. Prebend is checked at the dock with the backstay detached (method not described).
- Source
- Doyle Sails, 2020 matrix (PDF created January 2020; uploaded to doylesails.com June 2021)
Base setup
- Spreader mark
- A single mark mid-way along the spreader’s trailing edge, parallel to centreline, 21" (53.5 cm) from the notch at the spreader’s inboard end
- Headstay
- 57.5" (146 cm) from the top of the mark to the lower furler pin (guide text: Selden mast, US-built boats; matrix: generally needs a toggle in the headstay)
- Uppers
- Starting with the turnbuckles opened until the thread just disappears inside the barrel, wind 20 full turns onto each upper; guide text says PT-2 19 or 20 (matrix base row: 18 or 19). Caliper gap at base 51 mm, equal on both sides.
- Lowers
- Take up evenly, keeping the mast straight, to 10 on the PT-2 (matrix base row: 9 or 10); guide calls this the 10–11 kn base.
- Prebend
- Only about 1.25" (3 cm) at base, and no more than 1.5"
2020 J/70 Tuning Imperial Matrix (Loos PT-2; printed as applicable to both Southern and Selden masts)
| Wind (kn) | Lower / upper tension | Upper turns each setting | Lower turns each setting | Turns from base (U | L) | Backstay | Outhaul (from band) | Traveller (above centre) | Jib lead (from back) | In-haul |
|---|---|---|---|---|---|---|---|---|---|
| 1–4 | Slack / 12 | −1 | −1 | 3− | 3− | Slack | −1.5" | Max raised 15" (close hauled) | 9–11 holes | Use none |
| 5–6 | — | −1 | −1 | 2− | 2− | Slack | −1.5" | Max raised 15" | Hole 8 | Max in-haul: weather sheet to edge of cabin house, 10" of windward sheet |
| 7–8 | — | −1 | −1 | 1− | 1− | 1/4 on | −1" | Max raised 15" | Hole 7 | As above |
| 9–10 | 9 or 10 / 18 or 19 | Base | Base | — | 1/4 on | −1" | Raise 6"–12" | Hole 7 or 6 (6 or 5 holes showing) | As above |
| 11–12 | — | +2 | +1 | 2+ | 1+ | 1/2 on | −.75" | Up 3"–6" | Hole 7 or 6 | As above |
| 12–13 | — | +2 | +2 | 4+ | 3+ | 3/4 on | −.5" from band, max outhaul | Up 3"–6" | Hole 7 or 6 | 7"–10" in-haul |
| 13–14 | — | +1 | +1 | 5+ | 4+ | 3/4 on | −.5" | Up 3"–6" | Hole 7 or 6 | 5"–8" in-haul |
| 15–16 | — | +1 | +1 | 6+ | 5+ | 7/8 on | −.5" | Up 3"–6" | Hole 7 or 6 | 3"–6" in-haul |
| 16–17 | — | +1 | +1 | 7+ | 6+ | MAX | −.5" | Up 3"–6" | Hole 6 (5 showing) | 1–4" in-haul |
| 18+ | 29 / 30 | +1 | +1 | 8+ | 7+ | MAX | −.5" | Up 3"–6" | Hole 6 (5 showing) | 0–2" in-haul |
Trim by condition
- Rig steps
- Above 10 kn, start by adding 2 turns on the uppers for each turn on the lowers; the ratio shifts as the wind rises (see matrix). In very light air the guide goes two full settings under base (−2 turns uppers and −2 lowers).
- Checking the rig
- Upwind, the leeward upper should be just firm; ease a setting if it feels tight, add one if it is floppy. Too loose in 15+ kn lets the headstay sag and the main wash out.
- Main
- Outhaul 1.5" (4 cm) off the band upwind, in to .75" (2 cm) as it builds, out to 2" (5 cm) off below 8 kn. Traveller fully to windward up to 8 kn, 6–12" (15–30 cm) above centreline by 9–10 kn, then 3" (7.5 cm) above in smooth water or 6" (15 cm) in waves from 11 kn. Vang just eased below 12 kn and just firm above 12 kn; once vang sheeting, put the cunningham on and centre the car.
- Battens
- Battens 1–3 (top gaff and the two below) are adjusted daily, a couple of turns tighter in breeze; the bottom two are flex-tip and should not be overtightened.
- Jib
- Leads (page 8): hole 7 at 5–9 kn, hole 6 from base upward, hole 10 or 11 below 5 kn with no in-hauler. Luff wrinkles still showing at 8 kn, removed with halyard from 10 kn. In 5–12 kn in-haul the clew to the cabin-house corner (about 10" of in-haul, roughly 10° sheeting angle), easing a couple of inches per wind step; let the in-hauler off fully in heavy-air puffs.
- Downwind
- Wing on wing is best in 10–14 kn; full planing mode is described for 20+ kn with crew aft, jib out and main trimmed from the end of the boom with light vang.
- Superseded by Doyle’s 2024 guide and matrices; kept because the 2020 matrix differs in rake (57.5"), prebend and outhaul/jib-lead settings.
- Uppers at base: the guide text says PT-2 19 or 20 and lowers 10, the matrix base row says uppers 18 or 19 and lowers 9 or 10.
- Page 4 of the same PDF gives different jib holes from page 8 (hole 8 at 5–6 kn, hole 7 at 7–8 kn, 7 or 6 from base to 16 kn, 6 above 16 kn, and 9, 10 or 11 below 5 kn without the in-hauler).
Ullman Sails — 2016 J/70 Tuning Guide Version 4.3 (file dated 15 March 2017); older edition
- Written for
- Not stated
- Tension gauge
- Loos PT-2 for all numbers
- How it’s measured
- Forestay marked at the white band (stay pulled to the mast on the spinnaker halyard) and measured from the middle of the furler pin to the top of the mark. Mast centred with the bucket-on-jib-halyard method or a tape from the halyard to a chainplate pin.
- Source
- Ullman Sails, Version 4.3 (file dated 15 March 2017); older edition
Base setup
- Forestay
- 54 ½″, furler pin to mark
- Uppers at base
- 18 (PT-2)
- Lowers at base
- Tension to 18 (PT-2) with the mast straight, then ease 3 full turns; about ¾″ of leeward sag expected at base
- Lowers check
- Horizontal distance between the lowers at the top edge of the lower mast band about 58.25″
- Prebend at base
- 2–3″
- Spreader marks
- 20″, 23″ and 26″ from the edge of the mast
Quick shroud guide (turns relative to base, Loos PT-2)
| TWS (unit not printed) | Uppers | Lowers |
|---|---|---|
| 1–6 | −4 | −2 |
| 6–9 | −2 | −1 |
| 9–12 | Base | Base |
| 12–14 | 2 | 1 |
| 14–16 | 4 | 3 |
| 16–19 | 6 | 5 |
| 19–25 | 7 | 8 |
- Superseded by Ullman’s 2018 guide, which lowers the uppers base to 17, prebend to 1.5–2″, the 1–6 uppers to −3 and raises the 16–19 lowers to +6.
- The table header does not say whether the turns are running totals; with “Base” in the middle row they read as totals from base, as the 2018 edition labels them.
- Also linked from Ullman’s J/70 page on oldarchive.ullmansails.com (401); opened on newportbeach.ullmansails.com.
Ullman Sails — 2016 J/70 Racing Guide Version 3.0 (2016)
- Written for
- Not stated
- Tension gauge
- Not applicable (no tension numbers)
- How it’s measured
- Outhaul given as the distance from the middle of the main foot to the middle of the boom; sag and prebend judged by eye.
- Source
- Ullman Sails, Version 3.0 (2016)
Base setup
- Prebend at base
- About 2–3″ by eye at the dock
Trim by condition
- Power
- Overpowered: flatten sails and/or tighten the rig; underpowered: fuller sails and/or ease the rig. Aim for a steady, low heel angle.
- Leeward cap shroud
- Near base it should be just about to go slack; below base it swings freely; above base it stays snug.
- Mast sag
- By eye roughly 1″ of mid-mast sag below base, ¾″ at base, ¼″ one setting above base, and straight sideways from two settings above base. Overbend wrinkles in the main mean the lowers need tightening.
- Upwind cues
- Ease the in-hauler if the main is backwinded; the top jib-leech telltale should always stream. Crew weight forward so the bow knuckle just touches the water, moving slightly aft as the breeze and heel build.
- Jib sheets
- Lock the sheet to the car with an eye and dogbone so sheet marks repeat tack to tack. Lead it through the car inside-to-outside for a narrower angle in flat water or light air, the other way round in heavy air.
- Downwind, displacing
- Steer with body weight, keep weight forward and some vang on; when soaking deep in flat water ease the tack line up 4–5″. Jib furled.
- Downwind, planing
- Traveller fully down (left uncleated), vang nearly off but set to go snug at full ease in puffs, outhaul eased until mid-foot is about 12″ from mid-boom, crew aft, backstay about 90% on, jib unfurled. With four aboard the fourth sits behind the helm and trims the main.
- Spinnaker handling
- Gybe the kite inside, hoist and douse between the mast and lowers, and pre-set the tack line so the pole pulls it out on the hoist.
- Companion to the 2016 tuning guide; page footer reads “Ullman Sails J/70 Tuning Guide – V3.0” and the PDF’s internal title is a leftover “Melges 24 Tuning Guide”.
- Remember the big backstay change when switching from displacement to planing mode.
UK Sailmakers — J/70 Quick Tuning Guide (UK Sailmakers Houston) Undated; the same chart is in a PDF created March 2014 on UK’s earlier site, and the linked CDN copy was re-saved October 2022
- Written for
- UK Sailmakers Texas J/70 AP main and jib. UK’s J/70 page says its European main has extra luff curve so the same guide and jib work on Selden as well as Southern Spars masts
- Tension gauge
- Not stated
- How it’s measured
- Headstay length is given as a single figure without a reference point.
- Source
- UK Sailmakers, Undated; the same chart is in a PDF created March 2014 on UK’s earlier site, and the linked CDN copy was re-saved October 2022
Base setup
- Headstay length
- 27′ 8 1/4"
- Prebend
- About 2"
- In-haul
- 1 to 1 1/2" at base
- Base tension
- Uppers 20 / lowers 11 (10–14 kn)
Shroud tension (gauge not stated)
| Wind speed (unit not printed) | Uppers | Lowers |
|---|---|---|
| 0–6 | 14 | Loose |
| 6–9 | 16 | Hand tight |
| 10–14 (base) | 20 | 11 |
| 14–18 | 22 | 13 |
| 18–22 | 25 | 18 |
| 22–25 | 27 | 22 |
- One-page chart printed as an image; the gauge is not named, so do not mix it with PT-2 charts without checking.
- Wind bands as printed: 6–9 is followed by 10–14, and nothing is given above 25.
- The sails description comes from UK’s J/70 page (uksailmakers.com/one-design/j-70/), not from the PDF. That page also quotes the in-haul as “1″ to 1 1/5″”, which looks like a typo for the PDF’s 1 to 1 1/2″.
North Sails — J/70 Tuning Guide Rev. 1015 (M2/J2 tension charts for Southern Spars and Selden masts; SD-1 chart for all masts) Rev. 1015 (PDF created November 2015)
- Written for
- M-2 main / J-2 jib, and SD-1 main / SD-1 jib
- Tension gauge
- Loos PT-2 (tools list and chart headers); the Selden chart gives only turns plus a 22/11 base without naming the gauge
- How it’s measured
- Headstay: mark level with the top of the gooseneck white band, measure to the centre of the bottom headstay pin (toggles included); later changes in 1/4" steps. The Selden chart forestay figure is a swing from the top of the gooseneck white band. Prebend: back of the track to the front of the main halyard at the spreaders. Jib lead: holes visible in front of the car.
- Source
- North Sails, Rev. 1015 (PDF created November 2015)
Base setup
- Headstay
- 54 1/2" initial (text, no mast named); Selden chart forestay 1385 mm
- Mast centring
- Pencil marks 8′ (96") aft of the stem fitting at the sheer; equalise with a tape on the jib halyard by adjusting the uppers
- Base tension
- Uppers 22 / lowers 12 (text and M2/J2 Southern Spars chart, PT-2); M2/J2 Selden chart base 22 / 11 (outers/inners); SD-1 chart base 18 / 8 (PT-2)
- Prebend
- 1 1/2–2 1/2" at 22/12: the SD-1 main may suit a mast nearer 1 1/2", the M-2 main nearer 2 1/2"
- Spreader marks
- 18", 20", 22" along the aft edge
- In-haul go-to
- 1.5" from the cabin house (1" flat water, 2–3" moderate chop, possibly none in big waves)
M2/J2 tension chart, Southern Spars mast (Loos PT-2)
| Wind (kn) | Uppers | Lowers | Uppers turns | Lowers turns | Jib lead (holes in front) | Vang | Outhaul | Traveller | In-haul from cabin |
|---|---|---|---|---|---|---|---|---|---|
| <6 | 19 | Loose | −3 | −2 | 4–5 | 0% | Loose | 14"–max above centre | 1"–3" |
| 6–8 | 20 | 7 | −2 | −1 | 5–6 | Snug | Firm | 12"–14" above | 1"–2" |
| 8–10 | 22 | 12 | Base | Base | 5–6 | Snug–75% | 75% | 10"–12" above | 1"–2" |
| 10–12 | 24 | 16 | +2 | +1 | 5–6 | 95% | 95% | 6"–8" above | 1.5"–3" |
| 12–16 | 26 | 20 | +4 | +2 | 5–6 | 100% | 100% | Centre | 2"–3" |
| 16–20 | 28 | 24 | +6 | +3 | 4–5 | 100% | 100% | 4"–6" below centre | 2"–4" |
| 20+ | 28 | 28 | +6 | +5 | 4–5 | 100% | 100% | 4"–6" below centre | No in-haul |
M2/J2 Selden mast chart (turns from a 22/11 base; gauge not labelled on this chart; forestay 1385 mm)
| Wind (kn) | Outers (turns) | Inners (turns) | Forestay | Vang | Outhaul | Traveller | In-haul from cabin |
|---|---|---|---|---|---|---|---|
| 0–5 | −1 | −3 | 0 | 0% | Loose | 14"–max above | 1"–3" |
| 6–8 | 0 | −2 | 0 | Snug | Firm | 12"–14" above | 1"–2" |
| 8–10 | 22 (base) | 11 (base) | 1385 mm | Snug–75% | 75% | 10"–12" above | 1"–2" |
| 10–12 | +2 | +1 | 0 | 95% | 95% | 6"–8" above | 1.5"–3" |
| 12–15 | +4 | +2 | 0 | 100% | 100% | Centre | 2"–3" |
| 16–20 | +6 | +3 | 0 | 100% | 100% | 4"–6" below | 2"–4" |
| 20+ | +8 | +4 | 0 | 100% | 100% | 4"–6" below | No in-haul |
SD-1 tension chart, all masts (Loos PT-2)
| Wind (kn) | Uppers | Lowers | Uppers turns | Lowers turns | Jib lead (holes in front) | Vang | Outhaul | Traveller | In-haul from cabin |
|---|---|---|---|---|---|---|---|---|---|
| <6 | 14 | Loose | −2 | −1.5 | 4–5 | 0% | Loose | 14"–max above | 1"–3" |
| 6–8 | 16 | Loose | −1 | −1 | 5–6 | Snug | Firm | 12"–14" above | 1"–2" |
| 8–10 | 18 | 8 | Base | Base | 5–6 | Snug–75% | 75% | 10"–12" above | 1"–2" |
| 10–12 | 20 | 12 | +2 | +1 | 5–7 | 95% | 95% | 6"–8" above | 1.5"–3" |
| 12–16 | 22 | 16 | +4 | +2 | 5–7 | 100% | 100% | Centre | 2"–3" |
| 16–20 | 24 | 20 | +6 | +3 | 5–7 | 100% | 100% | 4"–6" below | 2"–4" |
| 20+ | 26 | 25 | +8 | +4.5 | 5–7 | 100% | 100% | 4"–6" below | No in-haul |
Trim by condition
- SD-1 notes
- Less vang for the SD-1 main, especially in 15+ kn: snug, then 1–2" more control line. Keep the SD-1 jib in-hauler at the outer end of the range.
- Jib lead
- M2/J2 charts: 6 holes in front is for flat water only. SD-1 chart: 7 holes is for flat water only.
- J-2 lead vs in-haul
- With no in-hauler the car goes about 3–4 holes showing; with lots of in-haul (clew 1" from the house) about 5–6 holes.
- Mainsheet
- Top leech telltales stalling 25–30% at max trim; flowing 80–100% in light air or when building speed.
- Spinnaker tack
- Usually tight to the sprit end; before planing, when you can sail deeper, ease it 4–6" to let the kite rotate to windward.
- Older edition for discontinued sail designs (M-2/J-2, SD-1); kept for owners still using them.
- Copy hosted by the Turkish J/70 class (j70tr.org); "EUR" appears only in the file name. Contacts listed are North UK and US staff.
- Selden chart wind bands run 12–15 then 16–20 (no 15–16), as printed. On the Southern chart the 20+ row repeats the uppers of 16–20 (28, +6).
North Sails — J70 Speed Guide (Tim Healy) Web article (first published February 2018, page modified October 2025 per page metadata)
- Written for
- North J/70 inventory
- Tension gauge
- Not given (photo caption: rig tension checked with calipers or a Loos gauge)
- How it’s measured
- Interview-style Q&A; no rig chart.
- Source
- North Sails, Web article (first published February 2018, page modified October 2025 per page metadata)
Base setup
- Crew
- Healy's team: four crew of 175–180 lb each, about 710 lb in all; the most competitive weight was settling between 700 and 780 lb
- Headstay
- Adjusted only within a 0.25" range, set before leaving the dock; top teams were then carrying up to 1" more headstay length than four years earlier
Trim by condition
- Light air rig
- Lighter shroud tension for headstay sag (power in the jib) and about 1/2" of leeward sag in the middle of the mast (power in the main).
- Heavy air rig
- Add shroud tension until the headstay stays tight with backstay on; lowers not so tight that the main cannot be flattened; just see inversion wrinkles; headstay moving no more than 1"; mast tip falling about 1" to leeward.
- Jib lead
- Holes are about 1–1.5" apart; heavy air without in-haul 4–5 holes showing in front of the car; with lots of in-haul up to 8 holes.
- Downwind
- Up to 7 kn: VMG mode, jib rolled up, slight leeward heel. 8–13 kn: sail low, ease the tack line up 4–5" unless very choppy. Surfing from 12–13 kn, planing from 14–15 kn; unroll the jib as soon as you plane. 12–14 kn with long gaps (about 30 s) between waves you can catch: furl the jib and sail low.
- Backstay downwind
- Hard on when it is very windy; eased (not fully) at 15 kn; fully slack in light-air VMG or reaching.
- Wing-on-wing
- Possible from about 10 kn; used tactically in 9–13 kn.
- Wipe-out
- Blow the vang and drop the spinnaker halyard about 8 ft to get upright.
- Interview-style speed guide by North class leader Tim Healy that points to the North tuning guide for rig numbers. The "four years ago" headstay comparison is relative to the original article date (about 2018).
J/Boats — J/70 Owner's Guide: Tuning the Rig © 2012
- Written for
- General guideline for most sails (from sea trials with several sailmakers)
- Tension gauge
- Loos PT-2 for the grid; the set-up step quotes pounds on an unnamed Loos gauge
- How it’s measured
- Centre the mast with a tape hoisted on the main halyard to toe-rail marks abeam of the mast (uppers hand-tight, lowers slack). Headstay length from the bearing point of the Gibb fitting at the top of the assembled headstay (upper swivel fitted) to the pin centreline of the bottom turnbuckle.
- Source
- J/Boats, © 2012
Base setup
- Headstay
- Starting length 8432 mm (spec table: 8432 mm / 27′ 8″ pin to pin with the turnbuckle half open, dated 05-14-12); ask your sailmaker for a more specific figure
- Uppers
- Tighten two turns per side until about 800 lb (Loos gauge, model not named)
- Lowers
- Hand-tight until the mast is straight, then two turns per side up to 700 lb
- Backstay bridle
- With the backstay line released, the bridle sits about 12–14" below its junction with the upper backstay
Loos PT-2 grid
| Wind (kn) | Uppers | Lowers |
|---|---|---|
| 0–6 | 18 | 12 |
| 6–10 | 20 | 18 |
| 10–14 | 25 | 23 |
| 14–17 | 28 | 26 |
| 18+ | 30 | 30 |
- Builder grid from sea trials with several sailmakers; its lowers are far tighter than in current sailmaker guides (e.g. 18 at 6–10 kn). New wire stretches, so re-tune after the first breezy day.
- The ksss.se file is a ManualsLib-stamped copy of the J/Boats owner guide (tuning on owner-guide page 29, PDF page 29; headstay length on pages 7 and 15).
Settings are summarised from each sailmaker’s published guide (checked 2026-11-02). Use the guide written for your sails, check it against the full guide, and stay inside the class rules.
